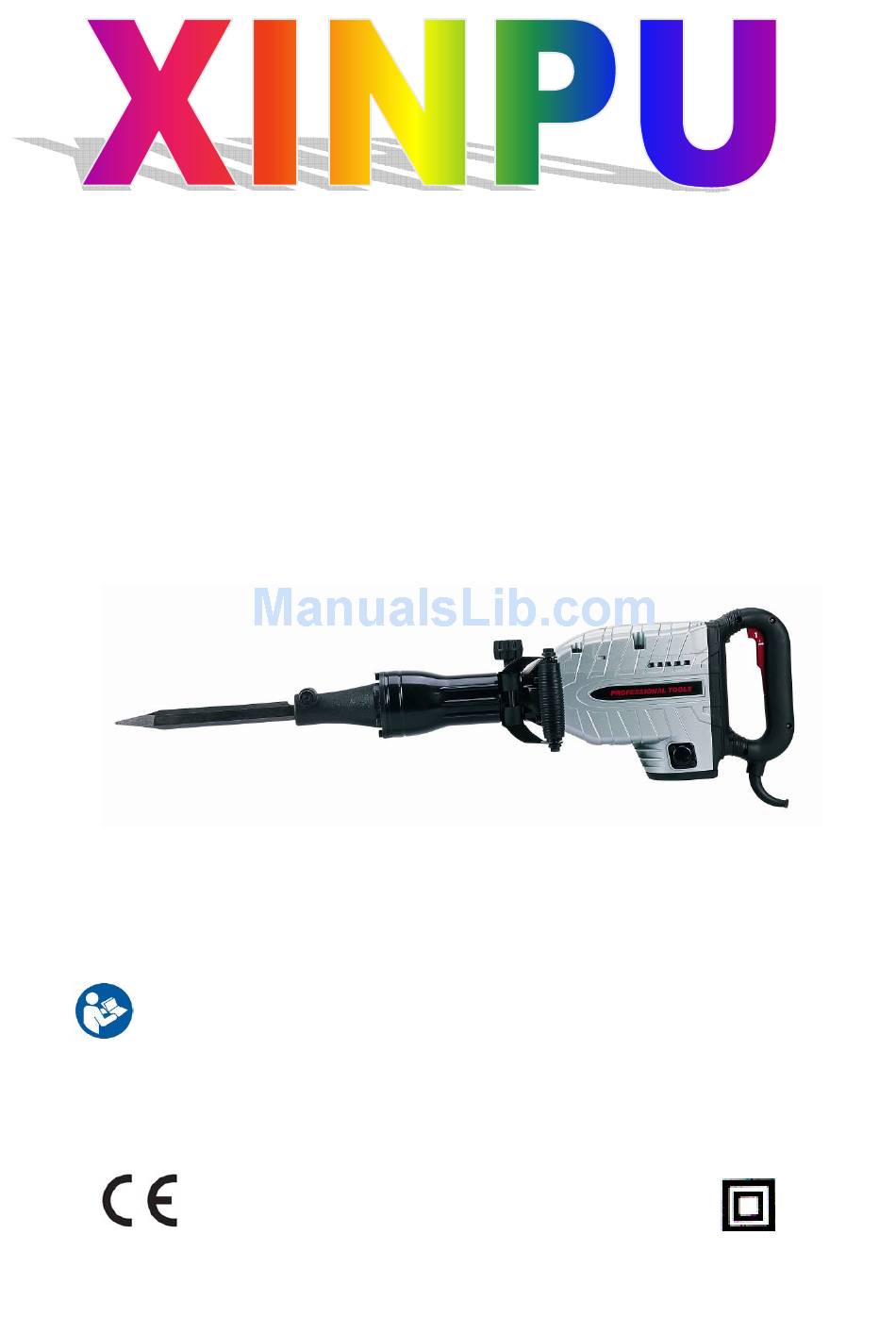

Demolition Hammer
Model: XP-G65BH
HANDLING INSTRUCTIONS
With active vibration reducing system
Original Instructions
though these HANDLING INSTRUCTIONS. Ensure that you know how the machine
works, and how it should be operated. Maintain the machine in accordance with the
instructions, and make certain that the machine work correctly, please store this instriation
and other enclosed documents with the machine togeth
Bj:2012
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Advertisement
Table of Contents
Summary of Contents for Xinpu XP-G65BH
-
Page 1: Handling Instructions
Bj:2012 Zhejiang Xinpu Industrial & Commercial Co., Ltd. 106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China... -
Page 2: Table Of Contents
Contents 1. Machine information 2. Safety instruction 3. Assembly 4. Operation 5. Maintenance 6. Cleaning 7. Warranty 7. Warranty 1. Machine information Technical specifications XP-G65BH Machine Type Voltage AC 220-240V Frequency 50Hz Input power 2000W Impact rate 1500/min Weight 20.2kg... -
Page 3: Standard Accessories
1 couple Optional accessories (sold separately） Notice: Optional accessories (sold separately) are recommended only for XINPU tool for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 1. Bull point Hexagon size28*410 length (Unit: mm) 2. - Page 4 4. Scoop Hexagon size28*410 length (Unit: mm) 5. Bush hammer heads + Shank Hexagon size28*410 length (Unit: mm) Tooth distance: 12mm Tooth high: 8mm Length*width: 60*60mm 6. Tamping plate + Shank Hexagon size28*394 length (Unit: mm) Length*width: 150*150mm 7. Big flat spade+ Shank Hexagon size28*296 length (Unit: mm) Length*width: 170*150mm 8.
-
Page 5: Safety Instruction
9. Lubricate oil one bottle(60g) 2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Read the manual carefully Accordance with essential applicable safety of European directives Double insulation Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual. -
Page 6: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING ： Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 7 switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 8: Additional Safety Rules
12、Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized serve center to check and repair. 13. Parts replace: Only original XINPU's parts can be used to replace by authorized service center. 14. Right use accessories and parts: Don't use other parts and accessories which not mentioned in the manual otherwise may cause injuries! 15. -
Page 9: Assembly
3. Assembly Name of the parts Retainer Head cover Aluminum head Second handle Fan cover Encloser Switch Main handle Mounting tool bits Warning: before do it, make sure unplug the machine! (1) Pull out of the retainer "2", turning 180℃ clockwise or anticlockwise, insert the accessory shank portion"1"... -
Page 10: Operation
Accessory Retainer pull out and eurn+/-180 Remarking: When you removing the accessory, such as a bull point, a cutter etc.., follow above procedure in reverse order. 4. Operation Prior to operation 1. Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer. -
Page 11: Maintenance
counteract the reaction. Note: Sometimes the power tool does not begin the striking the stroke even the motor keep running, because oil inside become thick. If the power tool is used at a low temperature, or it is used after a long idle time, this demolition hammer should be kept running for above 5 minutes to warm up. -
Page 12: Maintenance And Inspection
1. Loosen the 4 screws between aluminum head and gear box by 6 mm HEX head wrench.(See Fig1) 2. Disassemble the aluminum head, cylinder and piston.(See Fig2) 3. Clean the inside of aluminum head, must be free of metal chip and granular dust (See Fig3) 4. -
Page 13: Cleaning
water and oil to wet it. 5. Carbon brush replacements Carbon brushes are consumable parts, when it becomes worn or "limit worn" it can cause motor trouble, we use auto-stop carbon brush, it stopped automatically when carbon brush worn out, at that time, replace a new couple of them as following procedure: Screw M4x10 Brush holder... -
Page 14: Ec Declaration Of Conformity
EC Declaration of Conformity Zhejiang Xinpu Industrial & Commercial Co., Ltd. We herewith declare, 106 No. 330 National Road, Huajie Industrial Zone, Yongkang, Zhejiang 321300, P. R. China That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
