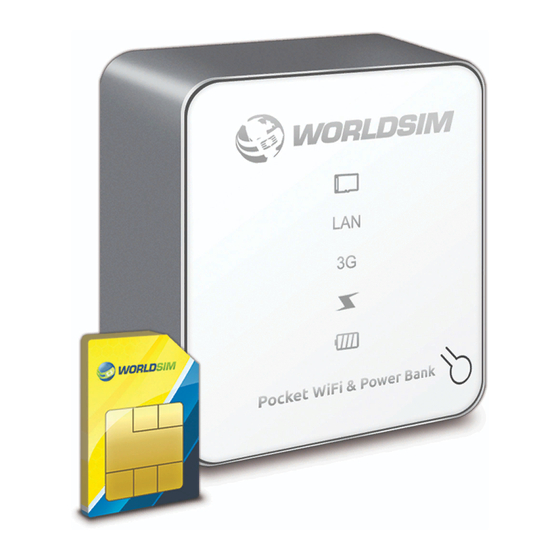

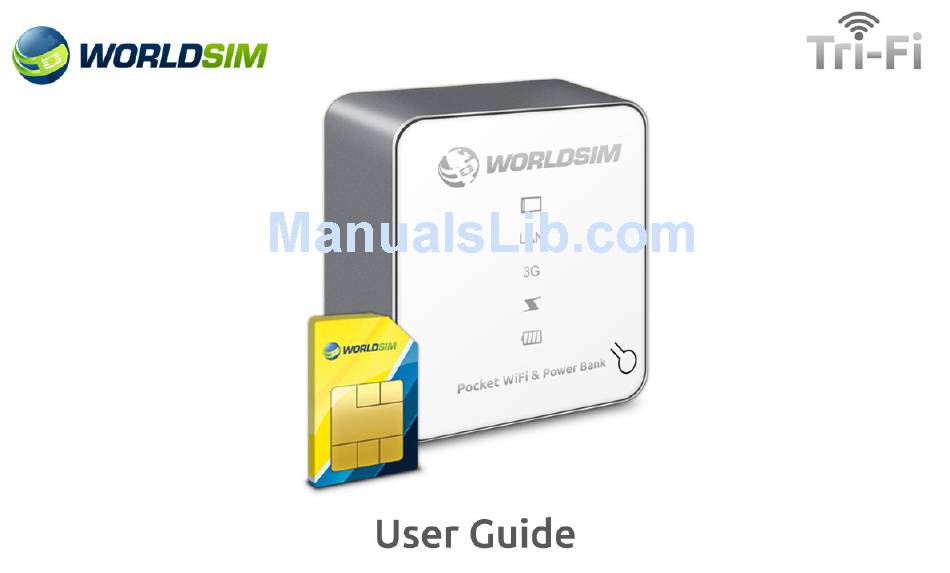

WorldSim Tri-Fi User Manual

Portable wi-fi hotspot
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tri-Fi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WorldSim Tri-Fi

  • Page 2 WorldSIM Products Travel SIM Card Orbizz Travel Genie For Free International Dual SIM Android Dual SIM Roaming Smart Phone World Phone For more information please visit www.worldsim.com...
  • Page 3 Tri-Fi can also charge other devices. • As soon as the Network Cable is inserted, the Tri-Fi will automatically switch to the LAN state for saving 3G traffic. • If you only use the Power Bank function of the Tri-Fi, you should select the Power Bank Indicator Light using the select button.
  • Page 4 Introduction of Tri-Fi: 01. Micro SD Card Indicator Light 02. LAN Indicator Light 03. 3G Indicator Light 04. Power Bank Indicator Light 05. Battery Indicator Light 06. Product description 07. Select Button & Data Indicator Light 08. LAN/WAN Port 09. Micro SD Card Slot 10.

  • Page 5: Device State

    Device State: Indicator Light Status Micro SD Card • Indicator light is always blue when switched to the state of SD card. Indicator Light LAN Indicator Light • Indicator light is always blue when switched to the state of LAN. 3G Indicator Light •...

  • Page 6: Installing The Sim Card And Micro Sd Card

    LAN state. Power Bank: Turn on the Tri-Fi, select Power Bank state if not selected by default. Connect the device to be charged via USB cable. Please note: In the state of SD card, LAN or 3G, Tri-Fi can also charge other devices at a slower capacity.
  • Page 7 Wait until the wireless network connection icon appears on the bottom right of the computer screen. The connection is then successful. Step three: Access to the internet. When the connection between user device and Tri-Fi is established, internet will be available immediately.

  • Page 8: Memory Storage

    LAN to access ‘Storage’ option). Memory Storage: 1. Turn on the Tri-Fi. 2. Switch the Tri-Fi to the state of SD card. After Wifi connection is established via LAN, login using the admin page. Click ‘Storage’ to access memory storage. Please note: Multiple clients can browse the contents on the SD card at the same time.
  • Page 9 Turn 3G to WiFi: 1. Insert SIM card. 2. Turn on the Tri-Fi. 3. Switch to the state of 3G. Manually configure APN: 1. Choose Basic =>WAN. 2. Select 3G as Connection Type. 3. Select Configuration as Manual Config. 4. Enter Dial Number and APN (APN settings may vary).
  • Page 10 Static IP: 1. Choose Basic => Wizard. 2. Select Static IP as Connection Type. 3. Enter IP, Subnet Mask and Default Gateway. 4. Click ‘Apply’. Please note: Static IP, DHCP, PPPoE should ensure that the state has switched to LAN and the system mode must be in gateway mode.
  • Page 11 1. Choose Advanced => Route => SYS MODE. 2. Select the AP client mode. 3. Click ‘Apply’. 4. Connect the Tri-Fi and computer using a network cable. 5. Switch to the state of 3G. Turn Wireless Network to WiFi: 1. Choose Advanced => Route => SYS MODE.

  • Page 12: Wireless Mac Filter

    3. Fill in the MAC address (According to the wireless MAC list). 4. Click ‘Apply’. Please note: • Deny listed: Addresses in this list won’t have access to the Tri-Fi. • Allow listed: Addresses in this list can connect to the Tri-Fi. Storage Management: 1.

  • Page 13: Modify The Login Password

    Modify the Login Password: 1. Choose Maintain => SYS Config => Admin Setting. 2. Enter User Name and Password. Click ‘Apply’. Android Devices/Panel Access for SD storage via WiFi: 1. Switch to the state of SD card. 2. Open the ES file explorer , Click ‘LAN’ menu, then ‘New’ and then ‘Server’...
  • Page 14 If the battery has not been used for a long time, please charge it to saturation state before use. • The charge indicator light is always blue when Tri-Fi is charging. • The charge indicator lights go out when charge is complete.

  • Page 15: Restore Factory Settings

    • After restart, the SSID and password will be the default factory settings value as printed on the Tri-Fi. Multi-Device access: The Tri-Fi device allows up to 10 devices to be connected at the same time. You will need to follow the relevant connection methods highlighted on page 5 of this user guide.

  • Page 16: Troubleshooting

    After switching to 3G state, check whether Data Indicator Light is flashing. • If yes, please check 3G state in Tri-Fi setting page. If dialing fails after refreshing many times, make sure that the SIM card can be used normally or switch to 3G state again.
  • Page 17 Tips: If the Tri-Fi does not work, try the following methods: • Restart the Tri-Fi. • Restore to Factory Settings. • If Battery power is low, please fully charge then turn on. • Contact our support team.

  • Page 18: Further Support

    Further Support: WorldSIM is fully commited to providing excellent Customer support 24 hours a day, 7 days a week. You can contact WorldSIM by: • Logging into My Account online and submitting a ticket to Customer service via the Self Service Hub.
  • Page 19 Talk. Text. Browse. Anywhere...
  • Page 20 For latest information please visit our website: www.WorldSIM.com...
