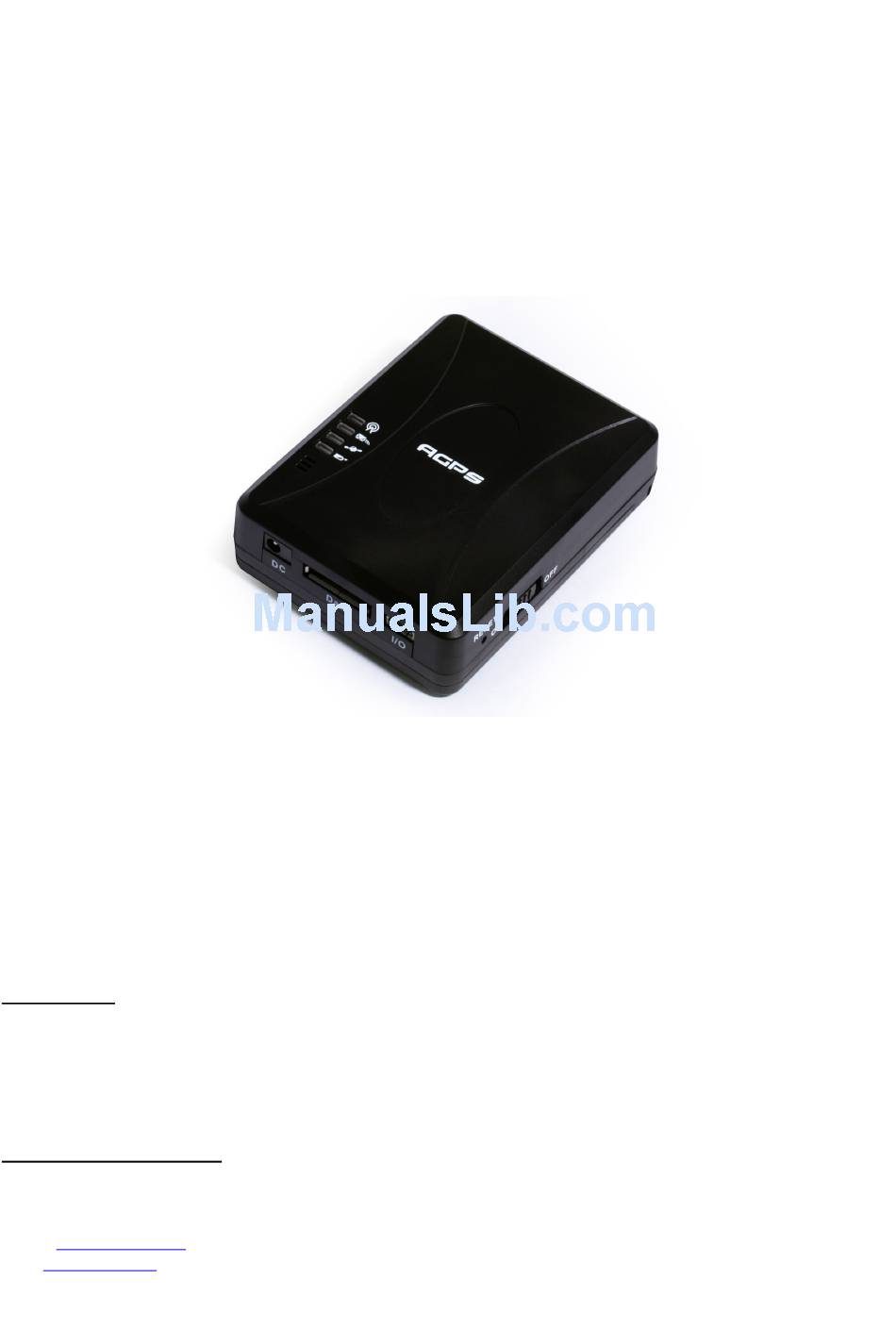

- Page 1 CT-58A GPS/GSM Micro Tracker Dec. 21 2007 Version: 2.00 San Jose Navigation, Inc. 9F, No.105, Xicheng Rd., Banqiao City, Taipei County 220, Taiwan (R.O.C.). Tel: +886-2-26879500 Fax: +886-2-26878893 E-Mail: sanav@sanav.com Web: www.sanav.com...
-
Page 2: Table Of Contents
Content Content.............................. 2 1. Hardware Description......................3 Front Face ..........................3 Side Face(1) ........................3 Side Face(2) ........................4 Rear Face(Battery Cap) ....................4 Package Contents......................5 2. Specification..........................6 3. Features............................7 4. Applications..........................7 5. Setup ............................8 5.1 Change Username........................9 5.2 Change Password ........................10 5.3 Set up the GPRS APN (Access Point Name) ...............11 5.4 Set up a Host Name (URL) to Transmit Data.............12 5.5 Set up the Phone Number List..................13... -
Page 3: Hardware Description
Orange: Data communication light Blue: GPS status light Green Yellow: Power charging light Note: A. Yellow light will light on while data while communicating the data to computer B. Green light will light on while charging the CT-58A Side Face(1) Power switch... -
Page 4: Side Face(2)
Side Face(2) Data communication slot I/O input slot Power adapter hole Rear Face(Battery Cap) Use your thumb to press the battery cap and then slide downward to open it. SIM card insert slot Battery insert slot... -
Page 5: Package Contents
Package Contents DC Adapter Charger Cigar charger User Guide... -
Page 6: Specification
2. Specification SPECIFICATIONS Electrics Data Tri Band 850/1800/1900 or 900/1800/1900 Mhz Frequency 1575.42 Mhz Reacquisition < 1sec. Cold < 41 sec. TTFF(Time To First Fix) GPS Receiver Acquisition time Warm < 33 sec. TTFF Hot < 3.5 sec. TTFF Support A-GPS services Power Battery Power 3.7V DC Li-Ion Battery,1500mA (future version Li-ion polymer battery ) -
Page 7: Features
3. Features A. Panic(option) External panic button (option) can be connected to CT-58A. When panic button is pressed, CT-58A will send out SOS report. Press Panic Dial the SOS phone number if this number is defined (please refer to chapter 5.20) Upload messages to URL via GPRS. -
Page 8: Setup
SMS from a cellular phone. Key the specific SMS message in your cellular phone as the instruction and send it to the SIM number of CT-58A. The setup messages are showed in the following sections. Note1: The default settings are shown as below. -
Page 9: Change Username
You can change the ID of CT-58A by below command format. No space is allowed between the characters. For example, if you send the SMS message shown in the example below to the CT-58A, you will change the ID from “username” to “ason”... -
Page 10: Change Password
5.2 Change Password Use this SMS message example shown below to change the password of CT-58A. For example, by following the example below, you will change the default password, “0000” to a new password, “1111”. Setup format ＃「username」,「Password」,「Function Code」,「new Password」,「new Password」＊... -
Page 11: Set Up The Gprs Apn (Access Point Name)
The table 5.3.2 shows each confirmation message reply after setup. Situation Message Reply Setup Succeeds [username] + CT-58A101 GPRS APN is updated. Setup Fail [username] + CT-58A GPRS APN setup Fail! Incorrect password [username] + Password setup Fail! Incorrect username or command [username] + command error format CT-58A is in Emergency Mode [username] + in emergency, GPRS APN setup is not allowed. -
Page 12: Set Up A Host Name (Url) To Transmit Data
5.4 Set up a Host Name (URL) to Transmit Data This command (SMS) instructs the CT-58A to access an URL or fixed IP for data transmission. If you send according example seen below CT-58A, “http://www.sanav.com/eric-gga/gprs.aspx “ will be assigned to receive the data sent from the CT-58A. -
Page 13: Set Up The Phone Number List
Non-numeric data is input for [username] + Parameter error numbers Incorrect password [username] + Password setup Fail! Incorrect username or command [username] + command error format CT-58A is in Emergency Mode [username] + in emergency, phone book setup is not allowed. Table 5.5.2... -
Page 14: Set Up Auto Report
Use this command to set up the frequency of Auto Report. If you send the SMS according to the example shown below to CT-58A, you will have an Auto Report Message every 300 seconds for 99 messages. Once the loop is done, you can send a SMS message to update/renew, or switching off it in order to renew it. -
Page 15: All Parameters Reset To Default
5.7 All Parameters Reset to Default Use this SMS message to reset CT-58A to factory default. You can just send the SMS according to the example seen below. It will overwrite all the current parameters to default. Setup format ＃「username」,「Password」,「Function Code」＊... -
Page 16: Acquire Report Of Current Position
Note that the message reply shown in Table 5.8.2 will only be sent back to cell phone that sent the SMS to do configuration. The caller’s ID of cellular phone must be activated in order to let the CT-58A recognize the caller ID and response accordingly. -
Page 17: Set Up E-Mail Address To Receive Data
Message Reply Setup Succeeds [username] + mail address Setup OK. Setup Fail [username] + mail address setup fail. CT-58A is in Emergency Mode [username] + in emergency, Mail address setting is not allowed. Incorrect password [username] + Password setup Fail! -
Page 18: Set Up Smtp Server
5.10 Set up SMTP Server After setting up the E-mail address, you still have to setup a SMTP server so that the CT-58A can use the SMTP server send E-mails. Setup SMTP by following instruction: Setup format ＃「username」,「Password」,「Function Code」,「SMTP server」＊... -
Page 19: Set Up Router For Transmitting Data By Url/Ip Or E-Mail
The table 5.11.2 describes the meaning of each segment in the message above. Text Keyed In SMS Description Start sign. username Default ID of CT-58A. If you have changed the Username, please use the updated one. 0000 Default password. If you have changed the password, please use the updated one. - Page 20 [username] + in emergency, switching to Mail/SMS mode is not allowed. [username] + in emergency, switching to HTTP mode is not CT-58A is in Emergency Mode allowed. [username] + in emergency, switching to Mail mode is not allowed.
-
Page 21: Request Imei Code
Imei stands for international mobile equipment identification. We offer you a command to acquire the Imei number from CT-58A via SMS. Actually, every CT-58A budget has a different default Imei code. You can send the SMS according to the example shown below to check its imei number so as to register to the web server for tracking. -
Page 22: Deactivate Panic Mode
0000 Default password. If you have changed the password, please use the updated one. offpanic Mode offpanic is to deactivate the panic status of CT-58A End sign. Table 5.13.1 The table 5.13.2 shows each confirmation message reply after setup. Situation... -
Page 23: Set Up Panic Report
Use this command to set up the frequency of Panic Report. If you send the SMS according to the example shown below to CT-58A, you will have a Panic Report Message every 300 seconds for 99 messages. Once the loop is done, you can send a SMS message to update/ renew, or switching off it in order to renew it. -
Page 24: Set Up Voice Monitoring Mode
Mode 8 defines the switch between one-way phone and hidden microphone 1 or 2 1: CT-58A will automatically switch to the voice monitoring. 2: Voice polling then CT-58A will send a GPS data via assigned router to terminal. End sign. Table 5.15.1 The table 5.15.2 shows each confirmation message reply after setup. -
Page 25: Sos Phone Setting
5.16 SOS Phone Setting While Panic function is triggered, CT-58A will automatically call the SOS phone number if this number is defined. The command format will be like following: Setup format：#「username」,「Password」,「Sosphone」,「Phone Number」* Example：#username,0000,sosphone,+886933123456* The table 5.16.1 describes the meaning of each segment in the message above. -
Page 26: Setup Geofence Coordinate
5.17 Setup Geofence Coordinate Users can setup the Geofence by using this command. The Geofence is defined as a round area. Therefore, the coordinates is the center and the radius is defined in meter. Command: #username,0000,gf,2458.9741,N,12125.6460,E,500,0~3* Text Keyed In SMS Description Start sign. - Page 27 0000 Default password. If you have changed the password, please use the updated one. Mode 17 is the Geofence report interval setting 0~32,000 Time interval in second 0~9999 Total report. Note that 9999 means infinite reporting. End sign.
-
Page 28: Vibration Alarm Setting
5.18 Vibration Alarm Setting Vibration sensor is embedded in CT-58A tracker. You can use following commands to define vibration report as well as the situation that triggers the vibration alarm. Setup Format: #username,0000,vs,on,x,y,z* Example: #username,0000,vs,20,20,10* Text Keyed In SMS Description Start sign. - Page 29 When a 10 seconds is defined in the “off” mode and vibration sensor detects the vibration exceeds 10 seconds constantly, CT-58A will report to the terminal to alert users that the vehicle is being moved and the interval is 60...
- Page 30 *Application of vibration of the tracker Hide the CT-58A in different places of the vehicle such as glove box, under the passenger, driver’s seat or the window, and back of the vehicle. *When someone stoles the car…… Theft is switching on the engine……...
-
Page 31: Set Up Tcp/ Udp Address To Transmit Data
[username] + Device TCP/UDP is updated. Setup Fail [username] + IP/Domain setup Fail! Incorrect password [username] + Password setup Fail! Incorrect username or command [username] + command error format CT-58A is in Emergency Mode [username] + in emergency, IP/Domain setup is not allowed. Table 5.19.2... -
Page 32: Agps Update
[username] + AU setup OK. Setup Fail [username] + IP/Domain setup Fail! Incorrect password [username] + Password setup Fail! Incorrect username or command [username] + command error format CT-58A is in Emergency Mode [username] + in emergency, AU setup is not allowed. Table 5.20.2... -
Page 33: Respond Messages
This chapter shows you how to read and understand the different response messages sent from CT-58A. When CT-58A is in GPRS/SMS mode it will upload the data to the assigned URL first. However, if GPRS service is not available, it will send the SMS to the predefined phone number instead. In the case of GPRS-only mode, CT-58A will only send the data by GPRS no matter there is GPRS service or not. -
Page 34: Auto Report
6.1 Auto Report 6.1.1. Uploading Auto data to URL when GPS is fixed When execute the Auto Report according to the settings with a GPS fixed, CT-58A will upload the data to your URL. The data format will be like the following. -
Page 35: Emergency Response
6.2 Emergency Response When GPRS is available, CT-58A will upload the data to the URL/e-mail. If the GPRS is not available, it will send the SMS instead. Please read Chapter 3.1 for how Panic works. 6.2.1. Uploading Emergency data to URL/e-mail when GPS is fixed... -
Page 36: Polling Response
6.3 Polling Response 6.3.1. Uploading Poll data to URL when GPS is fixed When send an SMS to poll a report with a GPS fixed, CT-58A will upload a data to your URL. The data format will be like the following. -
Page 37: Vibration Response
Field Descriptions IMEI The username of CT-58A that is configurable. $GPRMC It is a full sentence of $GPRMC including the Lat/Long, UTC and others. Vibration This is the event triggers the response. !! Note: 1. When in GPRS or e-mail mode and there is no GPRS service, the report will be sent to the 1st predefined number. -
Page 38: Geo Fencing Response
Example: http://www.sanav.com/eric-gga/gprs.aspx?imei=351277000000000& Field Descriptions IMEI The username of CT-58A that is configurable. $GPRMC It is a full sentence of $GPRMC including the Lat/Long, UTC and others. GFIN This is the event triggers the response. GOUT !! Note: 1. When in GPRS or e-mail mode and there is no GPRS service, the report will be sent to the 1st predefined number. -
Page 39: Nmea 0183 Gprmc Sentence
6.6 NMEA 0183 GPRMC Sentence $GPRMC ,123456.00 ,V ,3444.12553,N ,13521.45600,E ,020197 … Field# 6 7 8 10 11 12 Description Range UTC: Time “12”: hh 00-23 “34”:mm 00-59 “56”: ss 00-59 00-99 A or V 3-4. Latitude “34”: degree 00-90 “44”: minute (integer) 00-59 “12345”: minute (fraction) -
Page 40: Warranty
SAN JOSE NAVIGATION, INC. warrants CT-58A to be free from all defects and malfunctions in materials and workmanship for a period of 12 months from the original purchase date from SAN JOSE Navigation or authorized dealers. If the equipment functions improperly during the warranty period, SAN JOSE Navigation will either repair or replace the unit without charge.
