Sanyo MCD-S665F Service Manual

Cd portable fm stereo/am cassette recorder
Hide thumbs

Advertisement

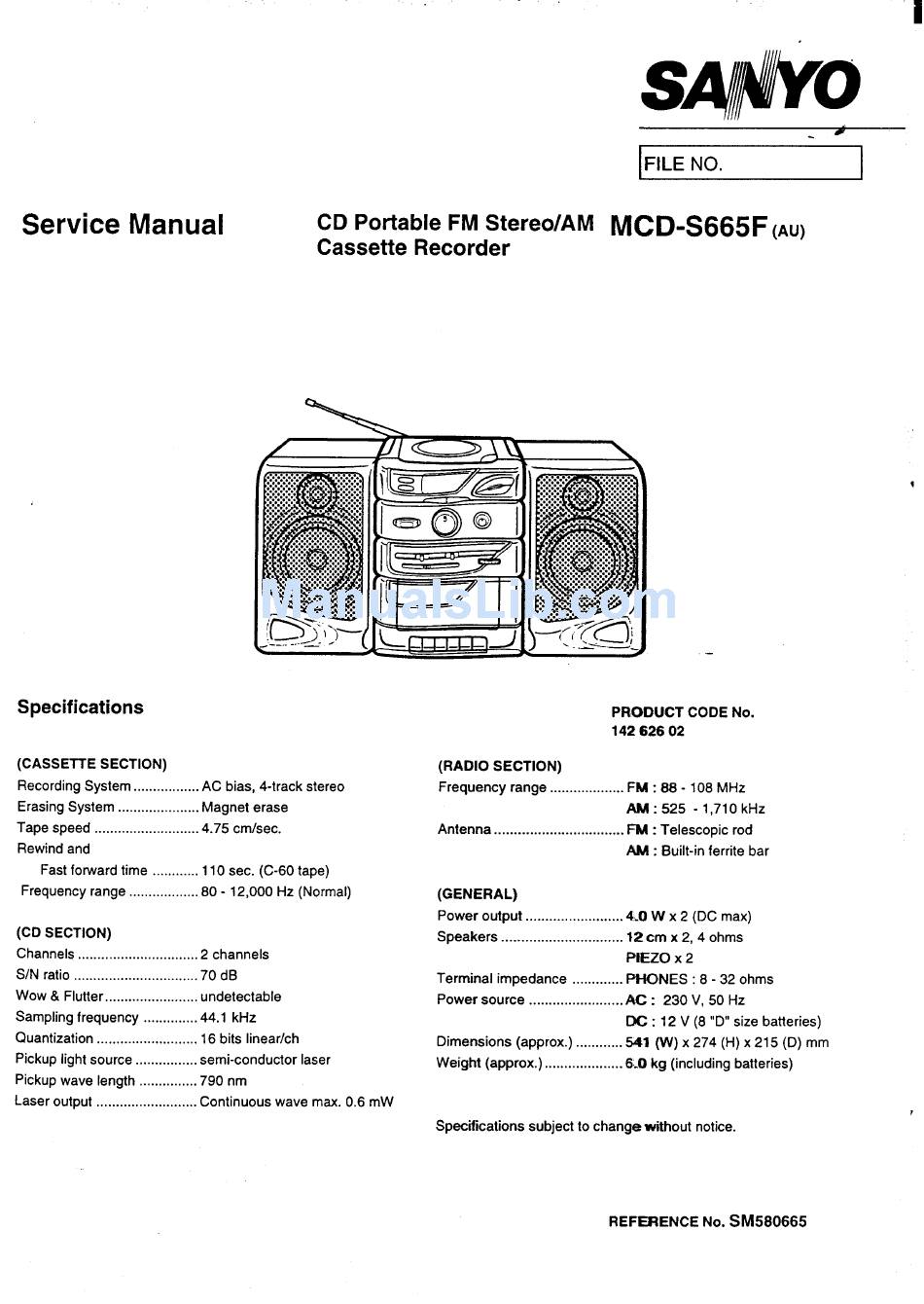

Service Manual
Specifications
IFILE No.
CD
Portable FM Stereo//M/l
~CD-s665F
(AU)
Cassette Recorder
(CASSETTE
SECTION)
Recording System ................. AC bias, 4-track stereo
Erasing System ..................... Magnet erase
Tape speed ...........................4.75 cmfsec.
Rewind and
Fast forward time ............ 110 sec. (C-60 tape)
Frequency range ..................80 -12,000
Hz (Normal)
(CD SECTION)
Channels ...............................2 channels
S/N ratio ................................70 dB
Wow & Flutter ........................ undetectable
Sampling frequency
..............44.1 kHz
Quantization
.......................... 16 bits linear/ch
Pickup light source ................ semi-conductor
laser
Pickup wave length ...............790 nm
Laser output .......................... Continuous
wave max. 0.6 mW
I
,,{ \
><---1
PRODUCT CODE
No.
14262602
(RADIO SECTION)
Frequency
range ................... FM: 88-108
MHz
AM:525
-l,710kHz
Antenna ................................. FM: Telescopic
rod
AM : Built-in ferrite bar
(GENERAL)
Power output .........................4..0 W
x 2 (DC
max)
Speakers ............................... ?2cm
x 2, 4 ohms
PIEZO
X
2
Terminal
impedance
............. PHONES
:8-32
ohms
Power source ........................AC : 230 V, 50
tiz
DC:
12 V (8 "D" size batteries)
Dimensions
(approx.) ............ 541 (w) x 274 (H) x 215 (D) mm
Weight (approx.) .................... 6.0 kg (including batteries)
r
Specifications
subject to change without
notice.
REFH?ENCE
No.
SM580665
