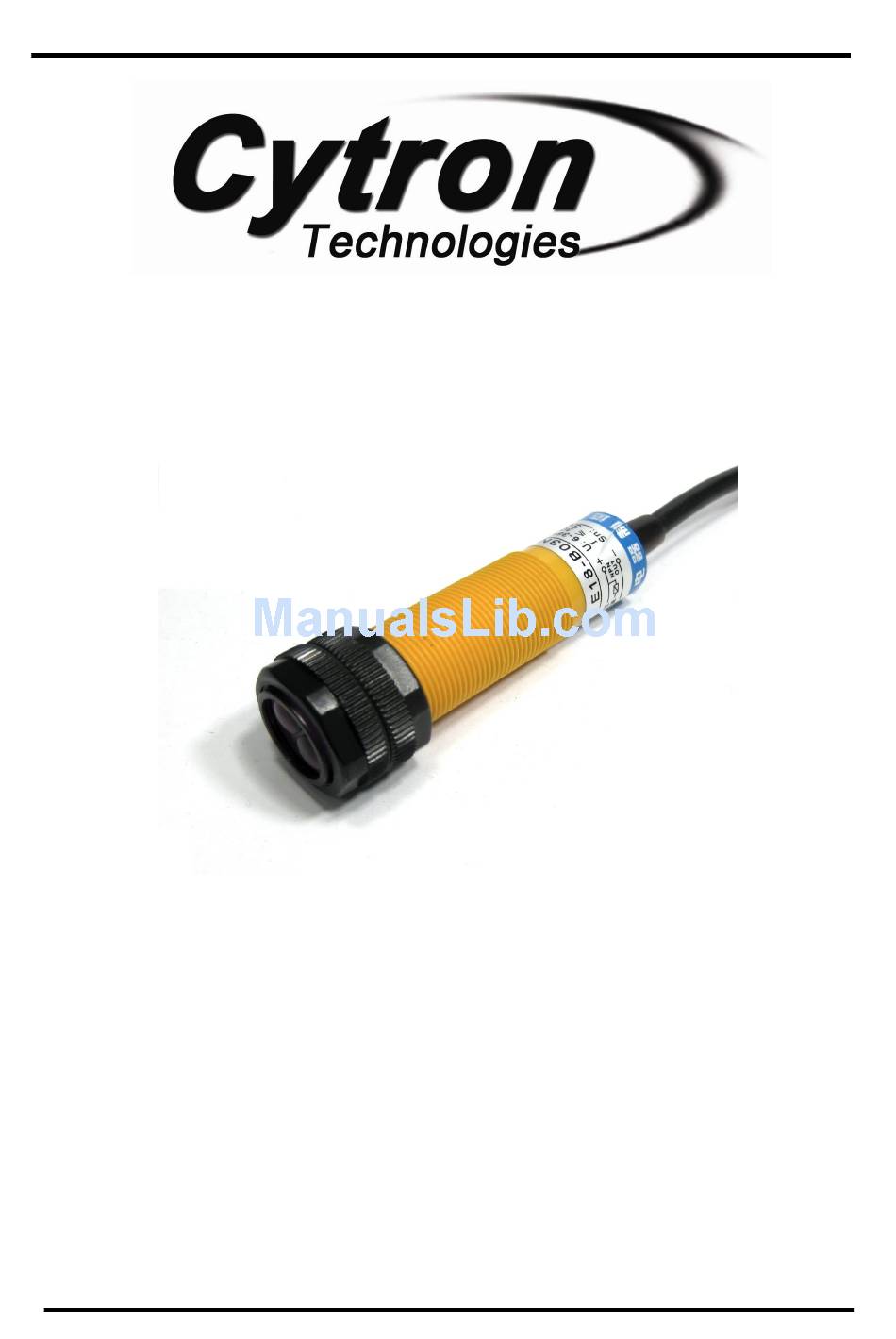

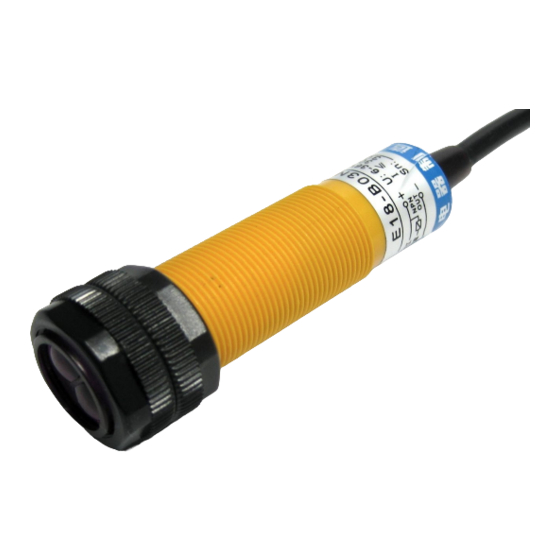

- Page 1 ROBOT . HEAD to TOE Product User’s Manual –SN-E18-B03N1 SN-E18-B03N1 Digital Infrared Sensor User's Manual V1.1 July 2012 Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
-
Page 2: Table Of Contents
ROBOT . HEAD to TOE Product User’s Manual –SN-E18-B03N1 Index Introduction and Overview Packing List Product Specification and Limitations Product Dimension and Layout Getting Started Warranty Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... -
Page 3: Introduction And Overview
* Though it is NPN output, but internally it is being pull up the power pin. ** Test show it can be powered as low as 5V. *** Longer distance can be achieve if power voltage is increase. Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... -
Page 4: Packing List
2. PACKING LIST Please check the parts and components according to the packing lists. If there are any parts missing ,please contact us at sales@cytron.com.my immediately. 1. 1 x SN-E18-B03N1 sensor module. Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... -
Page 5: Product Specification And Limitations
3. PRODUCT SPECIFICATION AND LIMITATIONS 3.1 Theory of Operation The SN-E18-B03N1 contains infrared sensor for use as reflection of IR signal barriers. It uses special sensor to detect the modulated IR signal reflected back from a nearby either or a far distance of the object. The transmitter and the receiver between the light intensity of the digital infrared sensor can change into for the purpose of current changes in order to achieve the detection. - Page 6 20cm 60cm 80cm All test is using Cytron’s packaging white color box as obstacle. Other object might have different result as it depends on the reflective of Infrared of object surface. The above result is just for reference. Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
-
Page 7: Product Dimension And Layout
ROBOT . HEAD to TOE Product User’s Manual –SN-E18-B03N1 4.PRODUCT DIMENSION AND LAYOUT 4.1 Product Dimension Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... - Page 8 A- User may supply 6V-36V to SN-E18-B03N1, the typical voltage is 12V. B-User may connect the GND (-) of SN-E18-B03N1 to the Ground (0V) of he control board. C-User may connect output signal to an I/O pin of microcontroller which set to INPUT mode.
-
Page 9: Getting Started
Connects to Digital Infrared Sensor, pin 1 to output (Black Connector Color),pin 2 to GND (Blue color) and pin 3 to Vcc (Brown color) Connects to Vcc (+6V to +36V), 5V is possible too. LC04A As logic level shifter Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved... - Page 10 The interface of Digital Infrared Sensor is shown in Figure 4.1, with reference to the schematic , the output signal which sends to microcontroller with LOW wherever there is a infrared detected and high if no object detect. Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
-
Page 11: Warranty
● Warranty does not cover freight cost for both ways. Prepared by Cytron Technologies Sdn. Bhd. 19, Jalan Kebudayaan 1A, Taman Universiti, 81300 Skudai, Johor, Malaysia. Tel: +607-521 3178 Fax: +607-521 1861 URL: www.cytron.com.my Email: support@cytron.com.my sales@cytron.com.my Created by Cytron Technologies Sdn. Bhd. – All Rights Reserved...
