LifeCycle LC9500

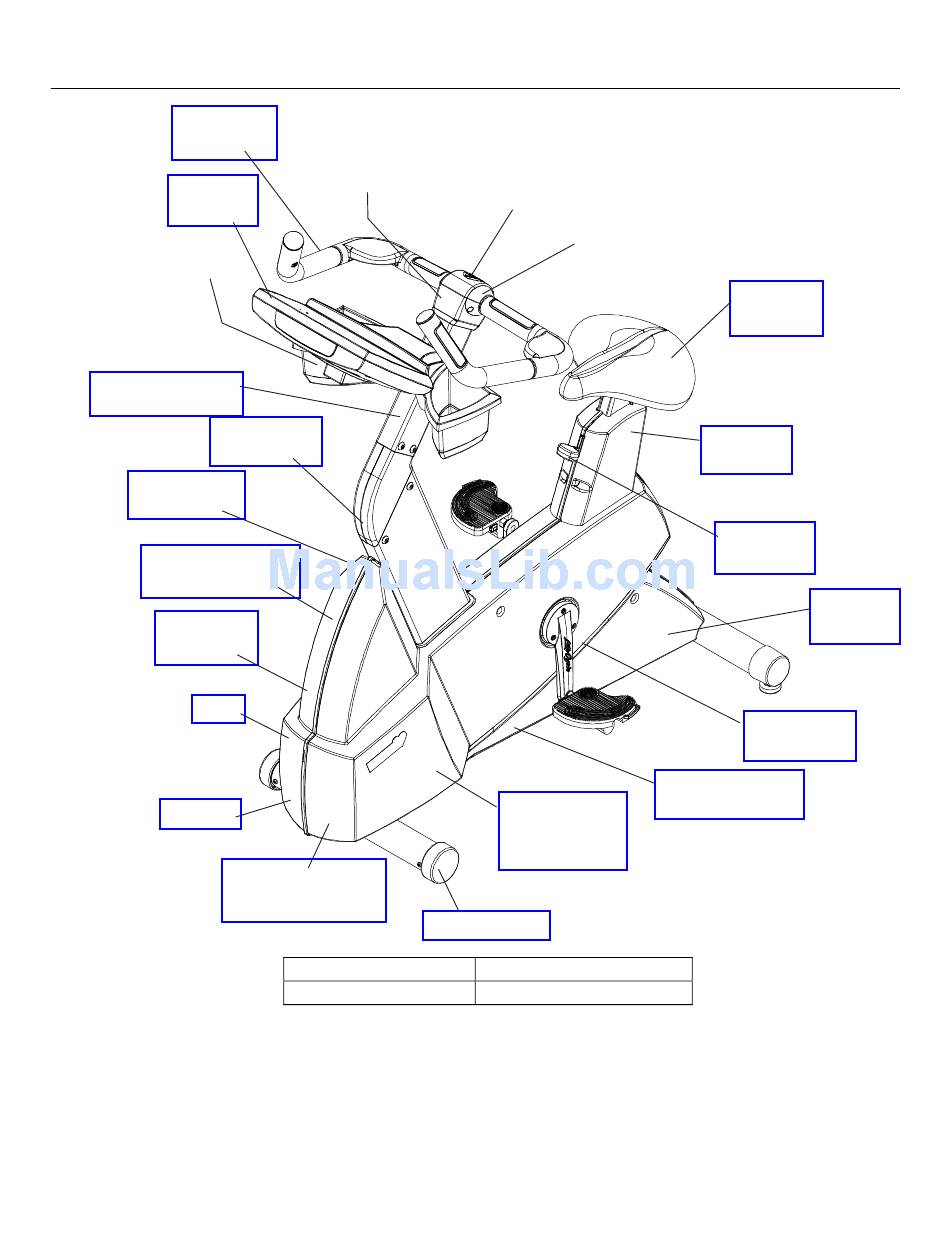

General Assembly
Handlebar
Assembly
Console
Overlay
Accessory Tray
0K63-01030-0000
Screws(4)
0017-00101-1253
Console Support
Assembly
Final Frame
Assembly
Idler Bracket
Assembly
Right Side Shroud
and Crankarm
Alternator
w/Pulley
Belts
Cables
PCB Mounting
Bracket Assembly
Bottom Sensor
Cover
0K63-01146-0000
Front Wheels
Operation Manual
Service Manual
1Page 1 of 19
LC95-0100-12
S/N CBJ100000
Upper Sensor
Cover
0K63-01145-0000
Polar Receiver
AK40-00045-0001
Left Side Shroud
and Crankarm
Intermediate
Pulley/Shaft
Assembly
M051-00K63-A043
XXXX-XXXXX-XXXX
Seat Post
Assembly
Seat Post
Shrouds
Seat Latch
Assembly
Resistor
Assembly
Crank Shaft
Assembly
Advertisement
Summary of Contents for Sportsmith LifeCycle LC9500 LC95-0100-12
- Page 1 LifeCycle LC9500 LC95-0100-12 General Assembly S/N CBJ100000 Handlebar Bottom Sensor Assembly Upper Sensor Cover Cover 0K63-01146-0000 Console 0K63-01145-0000 Overlay Polar Receiver Accessory Tray AK40-00045-0001 0K63-01030-0000 Seat Post Screws(4) Assembly 0017-00101-1253 Console Support Assembly Final Frame Seat Post Assembly Shrouds Idler Bracket Assembly Seat Latch Assembly...
- Page 2 LifeCycle LC9500 LC95-0100-12 Console Overlay Bezel Assembly S/N CBJ100000 Bezel/Switch Assembly Switch Membrane AK63-00064-0000 118E-00001-0133 Upper Overlay Console Board - Upper A084-92219-A001 Console Case Assembly Lower Switch AK63-00121-0000 Membrane 118E-00001-0134 Lower Overlay Phillips Pan Screws(13) 9917-00101-1650 Battery Door 0K63-01029-0000 Console Assembly Overlay Bezel Upper Overlay Lower Overlay...
- Page 3 LifeCycle LC9500 LC95-0100-12 Final Frame Assembly S/N CBJ100000 Seat Post Assembly Seat Latch Assy Frame Gasket AK63-00045-0000 AK63-00043-0000 0K63-01007-0001 Power Control Board and Battery Assembly Grommet AK63-00049-00000 0017-00042-1134 Resistor Assy AK63-00047-0001 Alternator w/Pulley AK63-00093-0000 Idler Pulley Assy AK63-00021-0000 Crank Pulley Assy AK63-00051-0000 Clutch Assembly Crank Disc...
- Page 4 LifeCycle LC9500 LC95-0100-12 Alternator w/Pulley - AK63-00093-0000 S/N CBJ100000 Alternator Alternator Pulley 0017-00009-0841 0K61-02500-0001 Bolt 0017-00101-0956 Locking Nut 0017-00103-0117 Washer 0017-00104-0044 4Page 4 of 19...
- Page 5 Lif LifeCycle LC9500 LC95-0100-12 Crank Shaft & Bearing Assembly - GK63-00002-00006 S/N CBJ100000 Crank Arm Hub Pulley Assemlby AK63-00051-0000 Pully 0K63-01018-0000 Flywheel Screws(3) 0017-00101-01715 Washers(3) 0017-00104-00458 *Crank Shaft & Bearing Kit GK63-0002-0006 *Crank Shaft *Small Thrust Washer(2) 0K63-01129-0000 *Large Thrust Washer(2) 0K63-01129-0001 *Bowed Retainer Ring(2) 0017-00100-0243...
- Page 6 LifeCycle LC9500 LC95-0100-12 Intermediate Shaft & Bearing Assembly – GK63-00002-0007 S/N CBJ100000 Clutch Assembly AK63-00026-0000 Retaining Ring 0017-00100-0242 DELRIN Washers Spacer 0017-00104-0455 6Page 6 of 19...
- Page 7 LifeCycle LC9500 LC95-0100-12 Seat Latch Assembly - AK63-00043-0000 S/N CBJ100000 Latch Spring 0K63-01117-000 Latch Bracket 0K63-01064-0000 NYLINER 0017-00042-1129 E-Ring Set Screws (2) 0017-00100-0050 0017-00101-0333 Link Shaft AK63-00113-0000 Latch Rack 0K63-01061-0000 NYLINER 0017-00042-1129 7Page 7 of 19...
- Page 8 LifeCycle LC9500 LC95-0100-12 Seat Post Assembly - AK63-00045-0000 S/N CBJ100000 Seat-Deluxe 0K63-01058-0000 Screw Lock Washer(4) 0017-00101-1623 0017-00104-0064 Hex Bolt(4) 0017-00101-1121 Seat Post Decal Extrusion 0K63-01151-0000 Guide Cap 0K63-01044-0000 Seat Post Assembly Seat Adjustment Rack AK63-00099-0000 0K63-01049-0000 Spring Support Bracket 0K63-01210-0000 Guide Base 0K63-01045-0000 Pan Screws(3)
- Page 9 LifeCycle LC9500 LC95-0100-12 Seat Post Shrouds S/N CBJ100000 Left Seat Post Shroud 0K63-01092-0001 Screw 0017-00101-0991 Right Seat Post Shroud 0K63-01092-0002 9Page 9 of 19...
- Page 10 LifeCycle LC9500 LC95-0100-12 Idler Bracket Assembly - AK63-00021-0000 S/N CBJ100000 Idler Bracket 0K63-01050-0000 Lock Nut 0017-00103-0218 Idler Bearing AK63-00008-0000 10Page 10 of 19...
- Page 11 LifeCycle LC9500 LC95-0100-12 Console Support Assembly - AK63-00065-0000 S/N CBJ100000 Cable Assy: Jack/Hr Polar Bracket 0K63-01113-0000 End Cap Console Support 0017-00042-1132 Weldment Assy AK63-00089-0000 Nut(2) 0017-00103-0318 Screws Support Screws(4) 0017-00101-1710 0017-00101-1704 Pan Screws(4) 0017-00101-1721 HR Electrode Cable Handlebar Cover-RT 0k63-01192-0001 I-Beam Joint 0K63-01178-0002 Console Cable...
- Page 12 LifeCycle LC9500 LC95-0100-12 Left Side Shroud and Crankarm S/N CBJ100000 Shroud Screws(3) Decal 0017-00101-0991 0K63-01153-0000 Left Side Shroud AK63-00058-0002 Crank Arm Screws(3) 0017-00101-1702 Crank Arm, LT 0K63-01209-0002 Washer(2) 0017-00104-0280 Left Pedal Shroud Plug AK63-00124-0002 0K63-01084-0000 Left Strap 0K63-01238-0002 12Page 12 of 19...
- Page 13 LifeCycle LC9500 LC95-0100-12 Right Side Shroud and Crankarm S/N CBJ100000 Right Pedal AK63-00124-0001 Right Side Shroud Right Strap AK63-00058-0001 Decal 0K63-01238-0001 0K63-01152-0000 Crank Arm Screws(3) 0017-00101-1702 Crank Arm, RT 0K63-01209-0001 Right Side Shroud Screws(8) 0017-00101-0991 13Page 13 of 19...
- Page 14 LifeCycle LC9500 LC95-0100-12 PCB Mounting Bracket Assembly – AK63-00049-0000 S/N CBJ100000 Cable-Insulated Clamp Battery Screws(2) 0017-00009-0915 0017-00101-0975 Battery - 6V 0017-00003-0685 Positive Terminal Plastic Grommet(4) 0017-00042-0821 Battery Mounting Bracket PCB Circuit Board 0K63-01211-0000 B084-92218-C000 Pan Screws(4) 0017-00101-0863 14Page 14 of 19...
- Page 15 LifeCycle LC9500 LC95-0100-12 Front Wheels – AK63-00017-0000 S/N CBJ100000 Pan Screw(2) 0017-00101-1611 Wheel Screw 0017-00101-1611 Wheel Insert 0K63-01039-0000 Flat Washer 0K63-01041-0000 Wheel/Bearing Assembly AK63-00016-0000 15Page 15 of 19...
- Page 16 LifeCycle LC9500 LC95-0100-12 Resistor Assembly - AK63-00047-0001 S/N CBJ100000 Nut(3) Resistor Resistor Mounting Rod 0017-00103-0081 .5 OHM 240 Watt 0K63-01166-0000 100E-00002-0084 Retainer 0K63-01215-0000 TORX Screw(20) 0017-00101-1282 Power Control Cable Assembly Resistor Bracket(2) 0K63-01165-0000 16Page 16 of 19...
- Page 17 LifeCycle LC9500 LC95-0100-12 Handlebar Assembly - AK63-00091-0000 S/N CBJ100000 Molder Grip Electrode Handlebar Molded Insert(4) AK63-00083-0000 AK63-00014-0001 Electrode Cable Assembly Insulated Plug(4) 0K63-01167-0000 Handlebar End Cap(2) Phillips Screw(4) 0K63-01114-0000 0017-00101-1720 17Page 17 of 19...
- Page 18 LifeCycle LC9500 LC95-0100-12 Belts S/N CBJ100000 Alternator Belt 0K63-01065-0000 Intermediate Belt 0K63-01066-0001 18Page 18 of 19...
- Page 19 LifeCycle LC9500 LC95-0100-12 Cables S/N CBJ100000 REED SWITCH AK63-00050-0000 19Page 19 of 19...
