3
Z
Technology

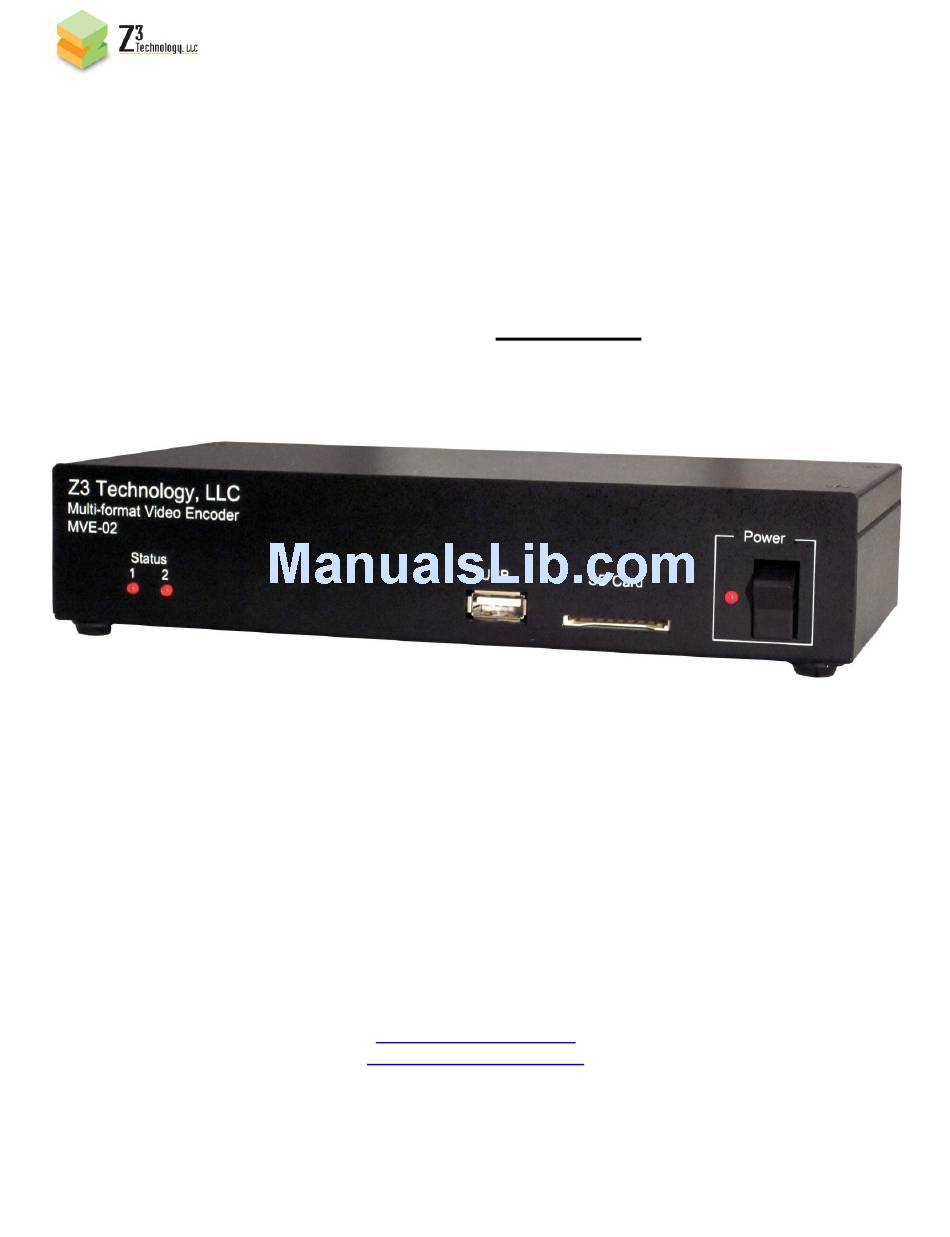

User's Manual
HD Multi-format Video Encoder
Model Name: Z3-MVE-02
Version 1.04.16
July 17, 2012
Before attempting to connect or operate this product, please read these instructions
carefully and save the manual for future use.
3
Z
Technology
Tel: +1.402.323.0702
www.z3technology.com
sales@z3technology.com
_________________________________________________________________________
1
Z3 Technology, LLC ♦ 100 N 8
th
ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07
V1.04.16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Z3 Technology Z3-MVE-02
Summary of Contents for Z3 Technology Z3-MVE-02
- Page 1 Before attempting to connect or operate this product, please read these instructions carefully and save the manual for future use. Technology Tel: +1.402.323.0702 www.z3technology.com sales@z3technology.com _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16...
- Page 2 Updated Screen Encode and decode Screen Shots, Highlight Nptes 1.0.4.2 2/13/12 Added Troubleshooting Section 1.04.15 6/8/12 Updated SW Version 1.04.16 7/17/12 Address Update _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16...
-
Page 3: Table Of Contents
TERMINAL OUTPUT ..........................14 SYSTEM MENU CONTROL .........................15 10.0 UPDATING FIRMWARE..........................15 10.1 WEB PAGE ...............................15 10.2 SD CARD ..............................16 11.0 TROUBLESHOOTING ..........................16 _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16... -
Page 4: General Information
GENERAL INFORMATION PREFACE The Z3-MVE-02 Multi-Format Video Encoder is a compact 114mm x 203mm system that supports H.264 High Profile encode up to 1080p at 30 frames per second. This solution works in multiple applications, such as low cost broadcast encoders, low bandwidth video security, satellite uplink, remote monitoring and industrial applications. -
Page 5: Optional Accessories
3.2 OPTIONAL ACCESSORIES _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16... -
Page 6: Features
FEATURES The Z3-MVE-02 is a high definition, low cost, network-enabled media encoder with the following features: HD resolutions up to 1920x1080 including 1080i, 1080p30 and 720p Supported video includes H.264, MPEG-4, and MPEG-2 Standard Definition encoding for ISDB-T, DVB-H, ...etc. -
Page 7: Operating Controls
ASI/SDI Out SDI/ASI In RS-232 Port Audio In R Component Y Component Pb Component Pr HDMI/DVI In VGA In Ethernet 12V Power _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16... -
Page 8: System Connections
Initially, the simplest way to setup the networked PC to communicate with the Z3-MVE-02 is to put the PC on the same subnet as the Z3-MVE-02. The IP address of the Z3-MVE-02 can be found on the bottom side of the Z3-MVE-02. The Windows PC can be setup on the same subnet by using these parameters:... -
Page 9: Local Ip Settings - Encoder
3. Connect the Ethernet cable from the Z3-MVE-02 unit directly to the PC 4. Disable all wireless and local area connections 5. For a client PC to access the Z3-MVE-02 factory default settings, set the IP address of the PC to 192.168.XX.XX (See 5.1 PC Setup) 6. -
Page 10: Encoder Configuration Options
Video Codec H.264, MPEG-2 Frame Decimation 1/2, 1/3, 1/4, None Output Setup Output Interface Ethernet, ASI, ASI+Ethernet Output Format RTP, MPEG-2 TS _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16... -
Page 11: Web Server - Decoder
Press the “Decoder” Button next to “Operating Mode” to change the operating mode to Decoder. The title in the top-right of the browser should now say “MVE-02 Decoder” as pictured here in the example. _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16... -
Page 12: Ip Settings - Decoder
192.168.0.XX STREAMING OPERATION After connecting your video/audio source and configuring the Z3-MVE-02 Encoder, hit “Start Encoder” so the status below says “Status: Running.” If you are using the serial command instead, type “S” to start streaming. The way to set up VLC as your stream receiver on your PC differs depending on the format of your output stream. -
Page 13: Transport Stream
3. Under the Media Files category, choose “All Files (*)” 4. Choose the SDP file provided by Z3 Technology - Note: If you do not have the SDP file, please to refer to your Z3 Server user account and download the file. -
Page 14: Appendix A: Serial Control
Note: Please only use the serial control if you are experiencing difficulties with the Web Server. Plug-in a DB-9 serial cable from the Z3-MVE-02 to your PC Set up Teraterm on the PC for 115k, 8, N, 1, N, 1ms/char, 50ms/line ... -
Page 15: System Menu Control
On the web menu, next to “Firmware Version 1.0.4”, hit the Update button Hit Browse to find the saved .img file on your PC Hit Upload & Update Power off unit _________________________________________________________________________ Z3 Technology, LLC ♦ 100 N 8 ST, STE 250 ♦ Lincoln, NE 68508-1369 U.S.A. ♦ +1.402.323.07 V1.04.16... -
Page 16: Sd Card
11.0 TROUBLESHOOTING No video is usually caused by networking issues. o First: check IP address and Netmask. Ping PC from Z3-MVE-02 and ping Z3-MVE-02 from PC. Use direct connection from Z3-MVE-02 to PC without router/customer network. Once video connection is established, then add in customer specific network equipment.
