Service Manual
Label Printer
EOS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOS 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for CAD EOS 1

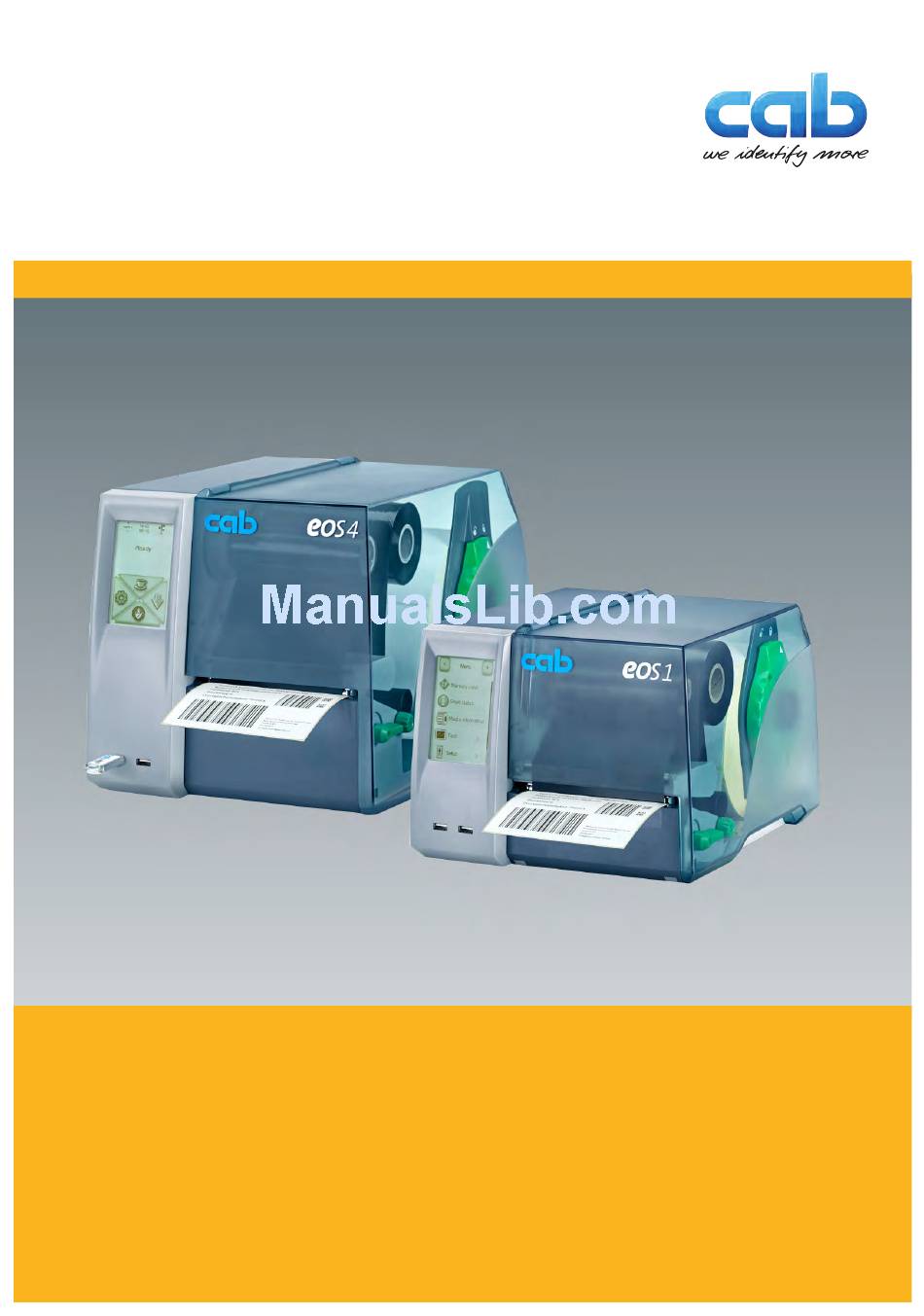

  • Page 1 Service Manual Label Printer...
  • Page 2 Service Manual for the following products Description Type Label Printer EOS1 / 200 EOS1 / 300 EOS1 / 200 C EOS1 / 300 C EOS4 / 200 EOS4 / 300 EOS4 / 200 C EOS4 / 300 C EOS4 / 200 P EOS4 / 300 P Edition: 11/2013 - Part.
  • Page 3 Spare Parts - EOS1 Print Mechanics Part No. Description Notes Serial No. Part No. Description Notes Serial No. from from 1.1 5965403.001 Cover Plate 5540617.001 Foot 5902414.001 Screw EJOT-PT-K30x12 5965477.001 Belt Roller 3.1 5965484.001 Cover 5903004.001 Washer DIN125-A3.2 5550176.001 CPU X3 5966203.001 Ribbon Take-up Hub 5.1 5551126.001 Power Supply 5966205.001 Ribbon Supply Hub...
  • Page 4 Spare Parts - Cutter EOS1 C Part No. Description Notes Serial No. Part No. Description Notes Serial No. Cutter Cutter from from 38.1 5965987.001 Cover 5965502.001 Shaft 5965524.001 Blade 38.2 5966331.001 Cover 39.1 5965529.001 Cutter Module 5965528.001 Blade 39.2 5966350.001 Cutter Module 5906221.001 Spring 5540637.001 Spring 47.1 5965507.001 Chassis...
  • Page 5 Spare Parts - EOS4 Print Mechanics Part No. Description Notes Serial No. Part No. Description Notes Serial No. from from 1.2 5965872.001 Cover Plate 5540617.001 Foot 5902414.001 Screw EJOT-PT-K30x12 5965477.001 Belt Roller 3.2 5965877.001 Cover 5903004.001 Washer DIN125-A3.2 5550176.001 CPU X3 5966203.001 Ribbon Take-up Hub 5.1 5551126.001 Power Supply 5966205.001 Ribbon Supply Hub...
  • Page 6 Spare Parts - Cutter EOS4 C Part No. Description Notes Serial No. Part No. Description Notes Serial No. from from 38.3 5966341.001 Cover 5965502.001 Shaft 39.2 5966350.001 Cutter Module 5965524.001 Blade 5540637.001 Spring 5965528.001 Blade 5965501.001 Gear Wheel Z12 5906221.001 Spring 5541379.001 Gear Motor 47.2 5966912.001 Chassis Spare Parts - Dispenser Module EOS4 P...

  • Page 7: Block Diagram

    Block Diagram...

  • Page 8: Technical Documents

    Technical Documents Part. No. Description Serial-No. from 9009113.001 Operator's Manual EOS1 de/en 9009118.001 DVD EOS Further technical documents are available on the internet at www.cab.de in the menu “Support & Downloads”. Tools Description Type Notes / Application Figure TX10 Torx screwdriver replace printhead, adjust feed path of transfer ribbon Adjusting pliers flat-nosed,...
  • Page 9 Checking Braking Force During printing operation the spring on the transfer ribbon supply hub functions as a brake. The braking force on the supply hub influences the transport of the transfer ribbon. The braking force on the transfer ribbon supply hub is measured with a test collar. The set values for the braking force at the test collar are: Spring on Direction of rotation...

  • Page 10: Replacing Assembly Units

    Replacing Assembly Units Danger! Risk of death via electric shock! X Before opening the rear cover, disconnect the device from the mains supply and wait at least one minute until the power supply unit has discharged. Tear-off Plate / Cutter / Printhead / Print Roller Replacement and mounting of these units are described in the w Operator’s Manual EOS.

  • Page 11: Control Panel

    Replacing Assembly Units Control Panel Fig. 5 Removing / mounting the control panel Removing X Remove the casing. X Unlock the control panel (3) at the latch (7) swing it away from the printer and remove it by lifting. X Unplug the connectors of the display cable (4), the cutter connection cable (5) and the ground connection cable (6).

  • Page 12: Transport Module

    Replacing Assembly Units Transport Module Fig. 6 Removing / mounting transport module 1 Removing X Remove the tear-off plate/cutter. X Remove the casing. X Unplug the connector (1) of the label sensor (2). X Move the label sensor as far as possible to the operator’s side w Operator’s Manual. X Remove screw (3) and 5 screws (4).

  • Page 13: Stepper Motor

    Replacing Assembly Units Stepper Motor Fig. 8 Removing / mounting stepper motor 1 Removing X Remove the casing X Remove the transport module. X Unplug the connector (2) of the stepper motor (3) from the CPU (1). X Remove the gearwheels (5) from the axles (6). Notice! The gearwheels (5) are reachable from the inner side of the chassis through the holes (4) with a pointed tool and can be pushed that way from the axles.
  • Page 14 Replacing Assembly Units Printhead Holder Fig. 10 Removing / mounting printhead holder Removing X Remove the casing. X Remove the printhead. X Remove the spring (2) from the spring bolt (1). X Lift the printhead holder (7), unlock the latch (4) and push the printhead holder with the spring (2) to the operator’s side out of the chassis (3).

This manual is also suitable for:

Eos 4
