Summary of Contents for Caliber RMD602
-

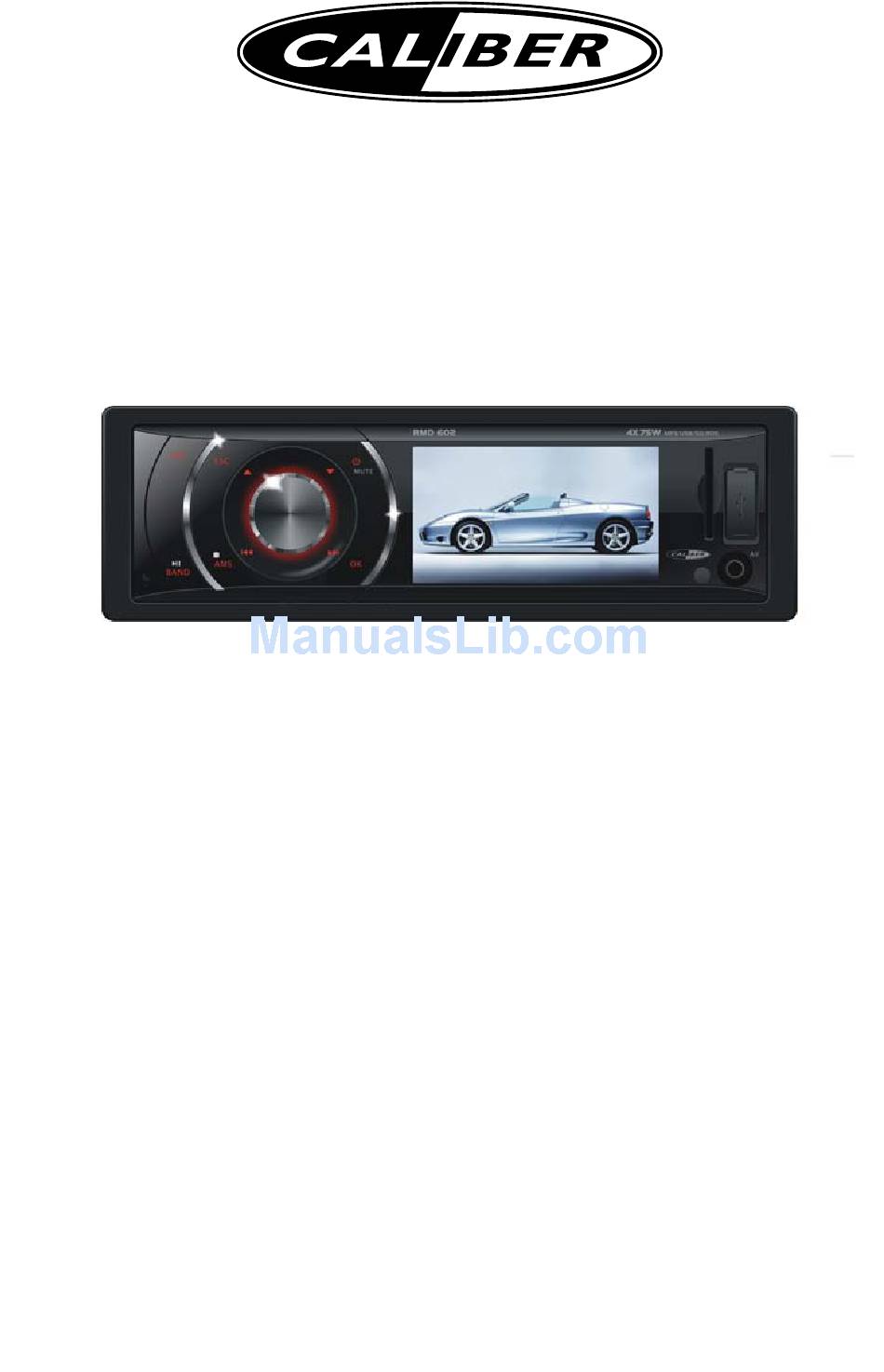

Page 1: Operating Instructions
Thank you for purchasing the RMD602 MP3/USB/SD/MMC Player, with FM/MW Tuner Operating Instructions... -
Page 2: Safety Precautions
Safety Precautions Never expose this unit, amplifier, and Thank you for purchasing this product. speakers to moisture or water for preventing P l e a s e r e a d t h r o u g h t h e s e o p e r a t i n g electric sparks or fires. -
Page 3: Table Of Contents
Contents Safety Precautions ......... 1 Contents ............2 Features ............3 Panel Controls ..........4 Remote Controls ..........5 Basic Operations ..........6 Rotary Knob Menu ........7-8 Radio Mode ............ 9 USB/SD/MMC/MP3 Playback ....10-14 Device Connections ........15-17 Installation Guide........17-19 Anti-Theft System ......... 19 Troubleshooting .......... -
Page 4: Features
Features WMA and MP3 Compatibility Button Operation Explanations It is possible to playback WMA and MP3 files. Some frequent operations 1) Move cursor About WMA The unit can playback WMA data. Windows Media and the Windows logo are trade marks or registered trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 5: Panel Controls

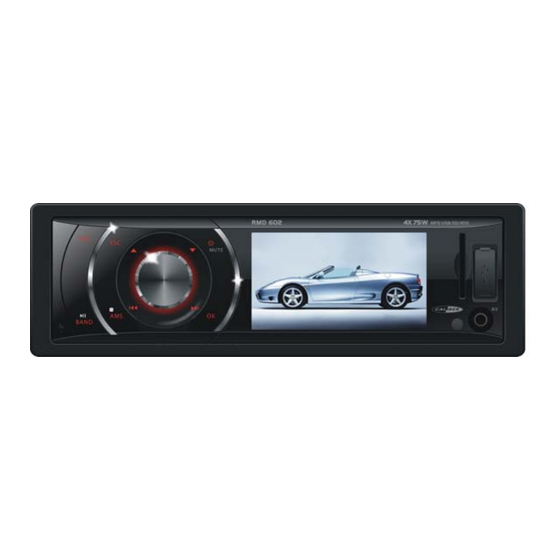

Panel Controls Power on/off: Press to turn on/off the unit. 1. - Short press to select playing mode: 12. - Preset scan (press briefly, in Radio mode) • Radio - Auto preset (press more than 2 seconds, • USB (when USB inserted) in Radio mode) •... -
Page 6: Remote Controls
Remote Controls Remote Control Operating Range Press to turn on/off the unit. The remote control can operate within a distance of 3~5m. Replacing the lithium battery When the range of operation of the card remote control becomes short or no function, replace the lithium battery with a new one. -
Page 7: Basic Operations
Basic Operations Turn on/off the Power 1. Press to turn on the unit. The unit goes back to the last status after power on. 2. Press more than two secnonds to power off. Mute Press the button to cut the sound. Note: Note: •... -
Page 8: Rotary Knob Menu
Rotary Knob Menu 1. Rotate the knob to adjust volume level. General Setting 2. Short press to access the Audio & Video Setting menu. BEEP: ON/ OFF The beep tone feature allows the selection of an audible beep tone to be heard each time the menu is accessed. -
Page 9: Video Setting
Rotary Knob Menu Video Setting Language Setting TV SYSTEM: NTSC/PAL/AUTO OSD LANGUAGE Select the TV system in the setting menu. Select one language that you are familiar with to display system menu. TV TYPE: 4:3PS/4:3LB/16:9 Select TV type to watch wide screen movies. 4:3 Pan Scan: For 4:3 TV, left and right edges Radio Setting will be cut. -
Page 10: Radio Mode
Radio Mode Accessing Radio Mode Press the SRC button on the front panel or remote control to switch to the Radio source. 1. Source Indicator 2. Current Preset Channels 3. Time/Clock 4. AM/FM Band 5. Radio Station Frequency 6. EQ Indicator Selecting a Band Storing Stations Press BAND once or more to select FM1-... -
Page 11: Usb/Sd/Mmc/Mp3 Playback
USB/SD/MMC/MP3 Playback USB/SD/MMC Notes 1. Load SD/MMC Card Insert the SD/MMC card into the slot, with USB functions (flash memory type) MP3 the front side at left. music play 1. SD/MMC card support The unit will play the music automatically and the LCD will show CARD. - Page 12 USB/SD/MMC/MP3 Playback Accessing USB/SD Card Mode To play files from an SD or USB that is already inserted, choose the CARD or USB source. The playback screen is indicated below: 1. Source Indicator 2. Current Track/Total Track 3. Name of the Song Display 4.
- Page 13 USB/SD/MMC/MP3 Playback For Picture files Entering ID3 Tag 1. Press ESC to return to playlist menu. This unit supports ID3 tag version 2.0. 2. Use to select PICTURE folders. For character codes, refer to the table to the 3. Press OK, on the front panel or ENTER below.
- Page 14 USB/SD/MMC/MP3 Playback Stop Playback Temporarily MP3 Playing Order - During playback, press to pause When selected for play, files and folders playback. (Folder Search, File Search or Folder Select) - The sound will be muted. are accessed in the order in which they were written to the media.
- Page 15 USB/SD/MMC/MP3 Playback Repeat A Select desired passage to repeat playback. - Press A B once to select starting point. Display shows REPEAT A. - Press A B again to select ending point. Display shows REPEAT A B, and selected passage start to replay. - Press A B once again to exit.
-
Page 16: Device Connections
Device Connections If a proper fuse is installed and electrical Notes of connection problems still occur, please contact with • To avoid short circuit in the electrical any professional car shops for inquiry. system, ensure that the negative battery • DO NOT connect other equipments with the cable is disconnected before installation. - Page 17 Device Connections Wiring Diagram...
-
Page 18: Installation Guide
Installation Guide Device Connections Preparation Using the ISO Connector 1. If your car is equipped with the ISO 1. Disconnect battery connector, then connect the ISO connectors Before you begin, always disconnect the as illustrated. battery negative terminal. 2 . F o r c o n n e c t i o n s w i t h o u t t h e I S O connectors, check the wiring in the vehicle carefully before connecting, incorrect Note:... - Page 19 Installation Guide all connections are secure and insulated ISO Installation with wire nuts or electrical tape. After This unit has threaded holes in the chassis completing the wiring connections, turn the side panels which may be used with the unit on to confirm operation (vehicle ignition original factory mounting brackets of some must be on).
-
Page 20: Anti-Theft System
Installation Guide Anti-Theft System This unit is equipped with a detachable panel. Reset Panel can be detached and taken with you, helping to deter theft. Removing the Panel 1. Switch off the power of the unit. 2. Press button to flip down the panel. 3. -
Page 21: Troubleshooting
Troubleshooting If you suspect something is wrong, immediately switch power off. Immediately stop using it and call the store where you purchased it. Never try to repair the unit yourself because it is dangerous to do so. Problem Possible cause Solution General Car ignition is not on. -
Page 22: Specifications
Specifications General Power supply: 12VDC (11V-16V), Test voltage 14.4V, negative ground Maximum power output: 75W x 4 channels Continuous power output: 20W x 4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8ohm Pre-Amp output voltage: 2.0V (Play mode: 1KHz, 0dB, 10K load) Fuse: Dimensions (WxHxD):...
