HDCVI Fiber Optical Transceiver
User Guide

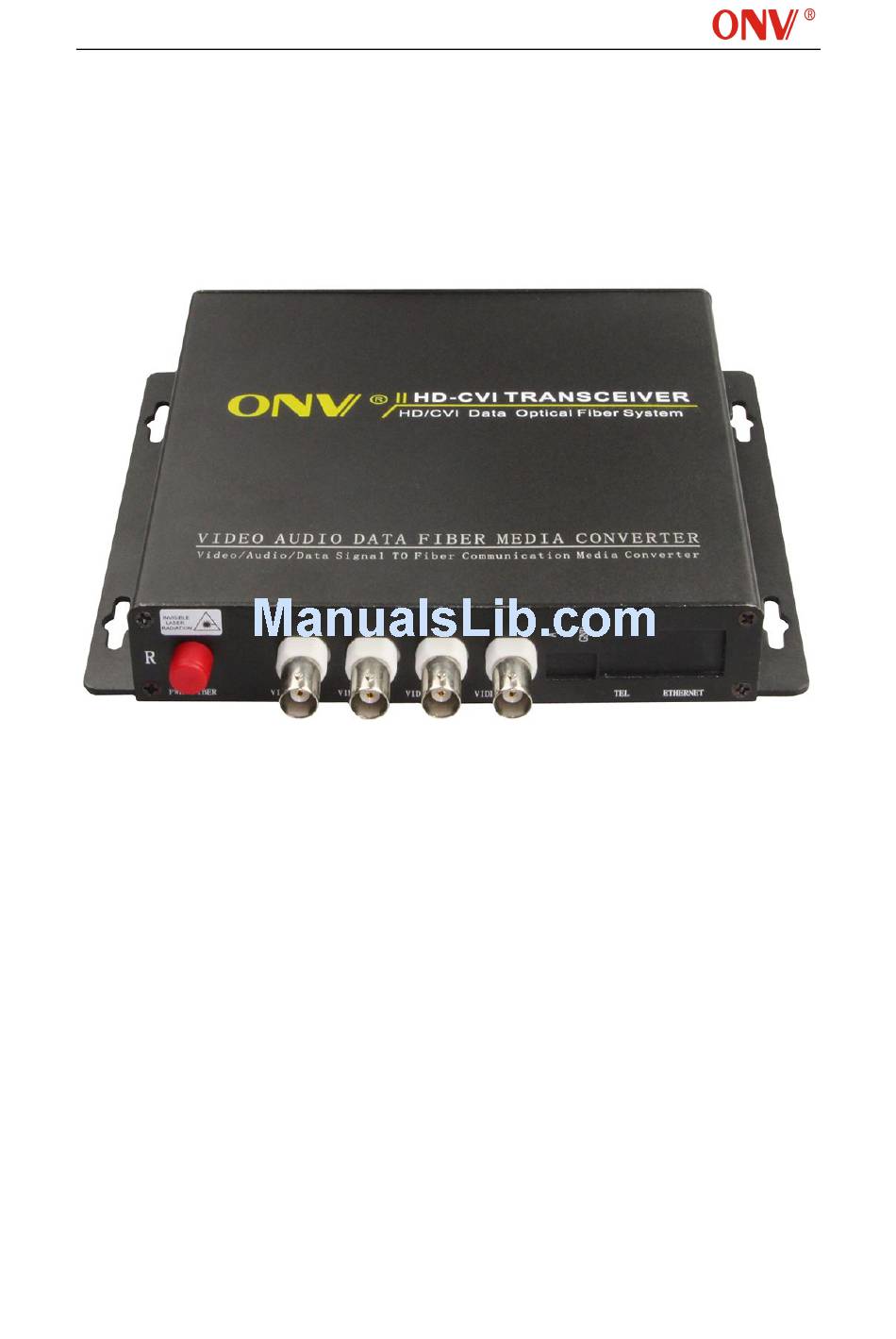

HD CVI/AHD Optical Transceiver
Model:ONV-4HDCVI

Summary

HDCVI optical transceiver is designed by Beyond for long-distance fiber transmission of
HDCVI HD compound video, adopt the compressed digital photoelectric conversion
technology by their research and development, use fiber to transfer Millions of pixel HD
video by dot to dot, and realize video transmission without delay and with high reliability.
Single fiber can transfer 1-4 CH HDCVI HD compound video at the same time.
HDCVI HD optical transceiver supports two HD video format 1280H and 1920H, supports
two resolution ratio 1280×720 and 1920×1080,four frame rate 25,30,50,60, six HD format
1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f.
Copy right by ONV
www.onvcom.com
Page 1 of 4
