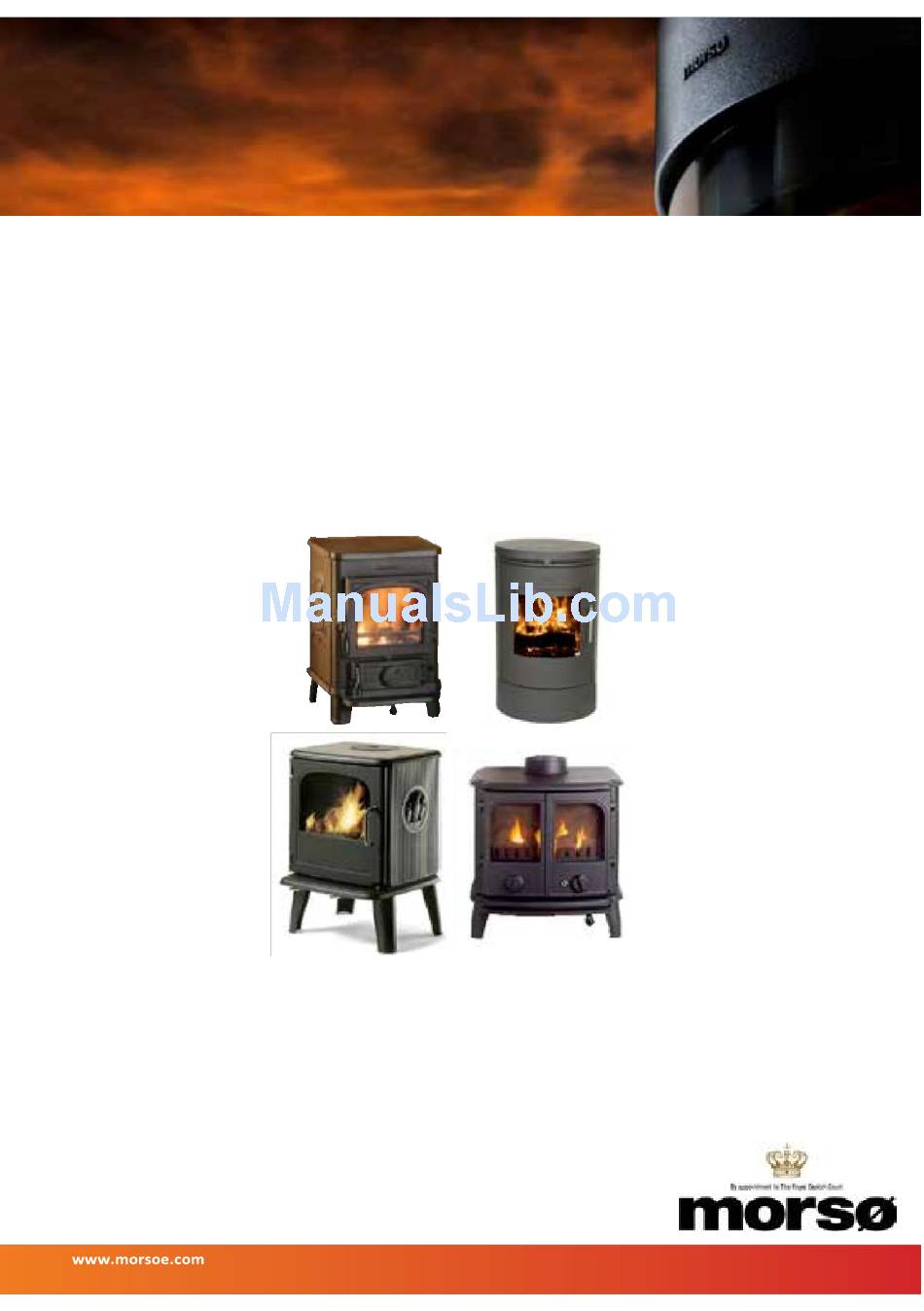

- Page 1 Supplementary Installation & Operation instructions for UK Market For use Morsø UK Stoves 13 240 & HETAS Ltd. Distributed by: Morsø UK Valley Drive · Swift Valley · Rugby, Warks CV21 1TW · England...
-
Page 2: Fire Cement
Net Eff Model Gross N° N° Eff % Eff % Care must be taken when installing the stove such that the requirements of the Health and Safety at Work Act are met. 1410 69,2 7943 71,9 1412 74.6 67,9 7948 71,9... - Page 3 If installation is into an existing chimney then it must be sound and free from cracks or other faults which might allow fumes into the property. Any existing chimney must be clear of obstruction and have been swept clean immediately before installation of the stove.
- Page 4 cm in front of the stove and 15 cm to each side measuring from the door of the combustion chamber. Important Notes Combustion air supply General In order for the stove to perform efficiently and safely there should be an adequate air supply into the Before lighting the stove check with the installer that the installation work and commissioning checks room in which the stove is installed to provide combustion air.
- Page 5 Model Phurnacite, Newflame Model N° Fuel Model N° Fuel Fuel N° Sunbrite Doubles, Supacite Fireglo ovoids 1410 Multi-fuel 3142* Multi-fuel 7443 Wood only Only authorised smokeless fuels may be used in smoke control areas. 1412 Multi-fuel 3410* Multi-fuel 7448 Wood only...
-
Page 6: Cleaning And Maintenance
Controlling the burning rate Trouble shooting, tips & hints When operating the stove with solid fuels the combustion air supply should be predominantly controlled Glass discolouration by the primary air intake. The primary air on many of the stoves is controlled by an air spinner on the ash door or on the bottom of the main door. - Page 7 • That extractor fan fitted • Glass kit 1410 gasket, clips & screws same room fire. 62904000 • Glass kit 1440 gasket, clips & screws 62904100 5. Fire Blazing Out Of Control • Glass kit 1430 gasket, clips & screws...
- Page 8 Morsø Jernstøberi A/S - 29.10. 2014 – 72002900...
- Page 9 7300- Instructions for installation and use 7400 Designed by Monica Ritterband Morsø 7340, 7343, 7348, 7350, 7351, 7370, 7390 Morsø 7440, 7443, 7448, 7450, 7470, 7490...
- Page 10 Morsø 7343 EN 13240 · NS 3058-3059 MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com www.morsoe.com...
-
Page 11: Installing Your Morsø Stove
Enjoy your new Morsø stove! 1.0 Installing your Morsø stove Morsø, the biggest stove company in the Danish market, 1.1 Unpacking the stove has been making wood-burning stoves of the highest The cast-iron basic stove is supplied ready for fitting the selected pedestal and upper section. The Morsø quality since 1853. -
Page 12: Connecting The Flue Pipe
The floor If the stove is installed on a flammable floor, national and local regulations must be observed with regard to the size of the non-flammable underlying surface that must cover the floor beneath the stove. The underlying surface must naturally be able to bear the weight of the stove and, if applicable, the steel chimney. -
Page 13: Connecting To A Brick Chimney
Mounting the flue collar pointing upwards The bolts must be adequately sized and you must ensure that the wall is capable of supporting the From the factory, the stove is prepared for installation with the included flue collar pointing upwards with stove. -
Page 14: Fresh Air Supply
If there is insufficient draught in the chimney, it may be a good idea to install the flue pipe straight up, so as to minimise smoke migration in the actual combustion chamber. Avoid having any more bends than necessary, and limit the length of the flue pipe so as not to Fresh air supply reduce the draught. -
Page 15: Firing/Using The Stove
When heating up or cooling down, the material is exposed to major temperature differences that 2.0 Firing/using the stove may cause the stove to give off creaking sounds. Your stove is constructed with air inlets in three places. Pre-heated, fast-moving combustion air is added to the fire beneath the grate. and is regulated using stove’s rated heat output is 4.3 kW. - Page 16 5. If the condition in step 4 is met, place max. 2 pieces of wood with a Once the wood has burned out, it becomes glowing charcoal. If a good layer of embers has already total weight of 1-1.5 kg and a length of 2025 cm over the embers in formed on top of a sufficient layer of ash, the stove can keep warm for a very long time, not least due a single layer, with a distance of approximately 1 cm.
-
Page 17: Routine Stove Maintenance
Ceramic glass replacement If you fire the stove using wet wood, a lot of the fuel’s thermal energy will be spent forcing the Ceramic glass cannot be recycled because it has a higher melting point that ordinary glass. If ceramic water out of the wood, without releasing any heat to the stove. - Page 18 In most cases, the ash will need to be taken away by the waste disposal company. Because embers may be concealed in the ash pan for several days, it may be necessary to store the ash in a container made of non-flammable material before pouring it into a rubbish bag.
- Page 19 Spare parts for the 7300/7400 series Description Product no. Cast grate 7300/7400 34745600 Vermiculite baffle 7300 79748000 Vermiculite baffle 7400 79743500 Glass window, front 7300/7400 79743400 Glass window, outer side 7400 79742700 Glass window, inner side 7400 79742000 Rear vermiculite brick 7400 79742200 Rear vermiculite brick 7300 79747900...
