Summary of Contents for Rhyas SSM4002

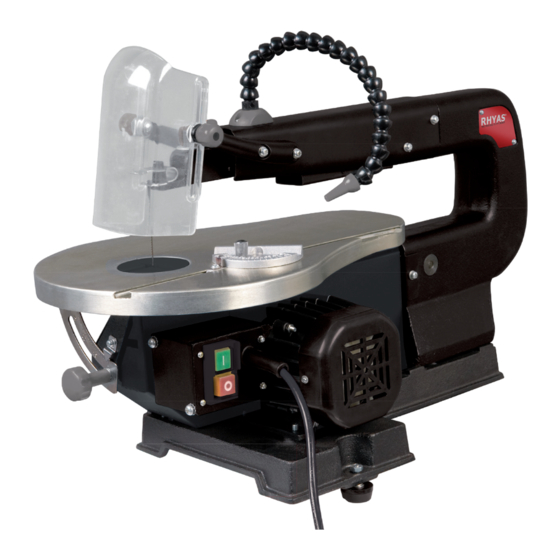

- Page 1 SCROLL SAW 90W SSM4002 Original Instructions...
- Page 2 Fig. A Fig. B...
- Page 3 Fig. C Fig. D Fig. E...
- Page 4 Fig. F Fig. G Fig. H...
-
Page 5: Safety Instructions
2 Screw for installing the protective cover delivered by one of Europe’s leading suppliers. 10 Saw blades All products delivered to you by Rhyas are 2 Adapters for universal saw blades manufactured according to the highest standards 2 Allen key of performance and safety. -
Page 6: Installing Accessories
3. INSTALLING ACCESSORIES replaced immediately. • Use the scroll saw machine on a stable and flat surface. Always disconnect the machine from • Never exert pressure on the sides of the saw the main power supply before blade because it may break. carrying out any maintenance work •... -
Page 7: Operation
4. OPERATION • Pull the saw blade up, so that the upper bolt (or saw-blade adapter) slides into the upper Always observe the safety holder. instructions and obey the relevant • Tighten the tensioner button until the saw regulations. blade has the required tension. •... -
Page 8: Maintenance
5. MAINTENANCE Always disconnect the machine from the mains before carrying out any maintenance work. The machine is designed to function faultlessly for a long period and with a minimum of maintenance. Extend its lifespan by regularly cleaning the machine and treating it correctly. Cleaning Regularly clean the machine with a soft cloth, preferably after each use. - Page 10 Spare parts list SSM1005 Description Position 209882 Blade spanner 17 - 20 209865 Sawblade holder (upper) 209866 Connection plate + bearing 33+34 209867 Lower arm 209868 Sawblade holder (lower) 209883 Blowpipe complete 42 - 44 209884 Protection cover 209885 Air cell 209886 Knob 209872...
-
Page 12: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS c. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with Warning! your finger on the switch or plugging in power tools that Read all instructions. Failure to follow all instruc tions listed have the switch on invites accidents. -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY SSM4002 (EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain... - Page 16 1405-02...
