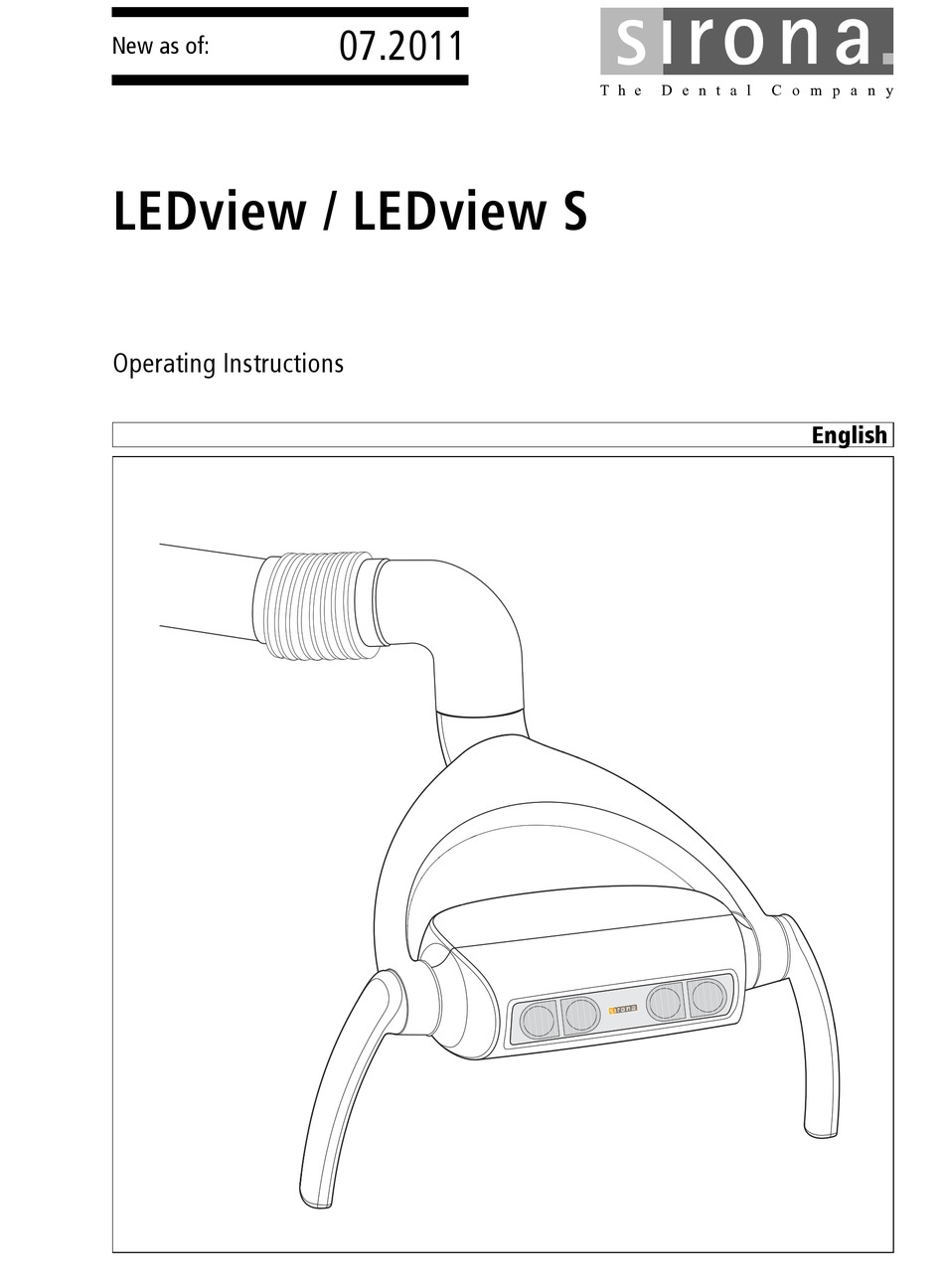

- Page 1 MTKOMNN kÉï=~ë=çÑW== ibaîáÉï=L=ibaîáÉï=p léÉê~íáåÖ=fåëíêìÅíáçåë båÖäáëÜ Operating Instructions...
-
Page 2: Table Of Contents
Composite mode ................... Safety checks ....................Electromagnetic compatibility................ Dismantling/Installation ................. Unit description......................Standards/Approvals ..................Technical Data ....................Optional filter disk..................System overview ................... 3.4.1 LEDview as unit model............... 3.4.2 LEDview as ceiling model / ceiling combination......... 62 07 687 D3530 D3530.201.01.06.02 07.2011... - Page 3 4.1.3 M1 ⁺ , C2 ⁺ , C3 ⁺ , C4 ⁺ , C5 ⁺ units ............ 4.1.4 C8 ⁺ units ................... 4.1.5 Ceiling model / Ceiling combination ..........Operating the LEDview via the proximity switch .......... Positioning the light field................Care and cleaning instructions for the practice team ..........
-
Page 4: General Information
General information Dear Customer, Dear Customer, We are pleased that you have equipped your practice with the LEDview / LEDview S operating light. You now have a light that features LED technology. It is characterized by high illuminance, lamp longevity and a lower energy consumption. Its mechanical adjustability in 3 axes ensures optimal positionability. -
Page 5: General Information On The Operating Instructions
Sirona Dental Systems GmbH 1 General information Operating Instructions LEDview / LEDview S 1.3 General information on the Operating Instructions General information on the Operating Instructions General information on the Operating Instructions Observe the Operating Instructions Please familiarize yourself with the unit by reading through these operating instructions before putting it into operation. -
Page 6: Formats And Symbols Used
This document describes the operation of the LEDview S operating light as a unit model. Use with TENEO, SINIUS, M1+, C2+, C3+, C4+, C5+, and C8+ LEDview unit model The LEDview can be operated as a unit model with the TENEO, SINIUS / SINIUS CS, M1 , C2 , C3... -
Page 7: Warranty And Liability
Exclusion of liability In the event that the system owner fails to fulfill its obligation to perform maintenance activities or ignores error messages, Sirona Dental Systems GmbH and its authorized dealers cannot assume any liability for any damage thus incurred. -
Page 8: Safety Information
Unsuitable care and cleaning agents may corrode the surface of the unit. Therefore, use only care and cleaning agents which have been approved by Sirona. For more information, please refer to "Care and cleaning instructions for the practice team". Trouble-free operation... -
Page 9: Safety Checks
Safety checks Please observe the chapter on "Safety checks" in the operating instructions for your treatment center. No safety checks of the LEDview / LEDview S are required for the ceiling model or the ceiling combination. Electromagnetic compatibility Medical electrical devices are subject to special precautionary measures Electromagnetic compatibility with regard to electromagnetic compatibility (EMC). -
Page 10: Unit Description
42/EEC of June 14, 1993 concerning medical devices. 0123 Ceiling model / Ceiling combination: The LEDview / LEDview S bears the CE mark in compliance with the provisions of Council Directive 93/42/ EEC of June 14, 1993 concerning medical devices. - Page 11 Sirona Dental Systems GmbH 3 Unit description Operating Instructions LEDview / LEDview S 3.2 Technical Data Mode of operation: Continuous operation Transport and storage Temperature: -40° C – +70° C conditions: (-40° F –158° F) Relative humidity: 10% – 95% Barometric pressure: 500 hPa –...
- Page 12 3 Unit description Sirona Dental Systems GmbH 3.2 Technical Data Operating Instructions LEDview / LEDview S LEDview S Model designation: LEDview S Light source: 4 light-emitting diodes Illuminance: adjustable, 2 levels: - Composite < 8,000 lux - normal mode in delivery condition: >...
-
Page 13: Optional Filter Disk
The LEDview / LEDview S can be easily adjusted with the handgrips to illuminate the treatment area. Brakes in the support arm hold the LEDview / LEDview S in the position to which it has been adjusted. The clearly restricted light field illuminates the treatment area without blinding the patient. - Page 14 3 Unit description Sirona Dental Systems GmbH 3.4 System overview Operating Instructions LEDview / LEDview S Use with SINIUS LEDview/LEDview S with SINIUS/SINIUS CS (SINIUS shown) Use with M1+, C2+, C3+, C4+, C5+, C8+ LEDview on M1 , C2 , C3...
-
Page 15: Ledview As Ceiling Model / Ceiling Combination
3.4.2 LEDview as ceiling model / ceiling combination LEDview as ceiling model / ceiling combination LEDview as ceiling combination with HELIODENT DS/HELIODENT Plus X- ray tube assembly (HELIODENT Plus shown) For information regarding operation of the X-ray tube assembly, please refer to the pertaining operator manual. -
Page 16: Operation
➢ Press the fixed key on the dentist or assistant element. Operating light If the LEDview is switched on, the LED of the fixed key lights up on the dentist and assistant elements. Adjusting the brightness The brightness of the operating light can be adjusted from 20% to 100% on the touchscreen of the treatment center. -
Page 17: Sinius
Sirona Dental Systems GmbH 4 Operation Operating Instructions LEDview / LEDview S 4.1 Operation via the dentist or assistant element 4.1.2 SINIUS SINIUS Switching the operating light on/off on the dentist element The operating light is always switched on at the set brightness level, see "Adjusting the brightness"... -
Page 18: M1 ⁺ , C2 ⁺ , C3 ⁺ , C4 ⁺ , C5 ⁺ Units
Operating light 2. Press the key on the dentist or assistant element. Operating light If the LEDview is switched on, the LED of the fixed key lights up on the dentist and assistant elements. Adjusting the brightness The brightness of the operating light can be adjusted from 20% to 100% on the user interface of the treatment center. -
Page 19: C8 ⁺ Units
The brightness of the C8 unit model is programmed via the proximity switch (see Operating the LEDview via the proximity switch [ → 20]). Switching the composite function on/off With the composite function, the operating light can be operated at a reduced brightness of approx. -
Page 20: Operating The Ledview Via The Proximity Switch
✔ Or: It is in operation with the composite function. ➢ Move your hand past and underneath the proximity switch. The LEDview is turned on in or switches to the normal operating mode. Operating light The LED of the... - Page 21 Operating Instructions LEDview / LEDview S 4.2 Operating the LEDview via the proximity switch Helligkeitsregulierung Programming the brightness With the LEDview, this function is available for the C8 units and ceiling models starting with serial number 3,590. ✔ The operating light is switched on in the normal mode.
-
Page 22: Positioning The Light Field
Operating Instructions LEDview / LEDview S Positioning the light field Positioning the light field The LEDview / LEDview S enables you to adjust the light field in a way that optimally supports viewing of areas of the mouth which are difficult to access. -
Page 23: Care And Cleaning Instructions For The Practice Team
Sirona Dental Systems GmbH 5 Care and cleaning instructions for the practice team Operating Instructions LEDview / LEDview S 5.1 Basics Care and cleaning instructions for the practice team Care and cleaning instructions for the practice team Basics Basics To maintain the value and safe functioning of your operating light, it is necessary to have it cared for, cleaned and disinfected by the practice team regularly. -
Page 24: Cleaning And Disinfecting Lamp Components
The handles can be disinfected with surface disinfectants by spraying and wiping. Using hygienic protective sleeves Hygienic protective sleeves are available for the LEDview / LEDview S. Using hygienic protective sleeves They can be ordered from a specialized dealer. Designation Order number Hygienic protective sleeves, 2 pcs. -
Page 25: Disposal
