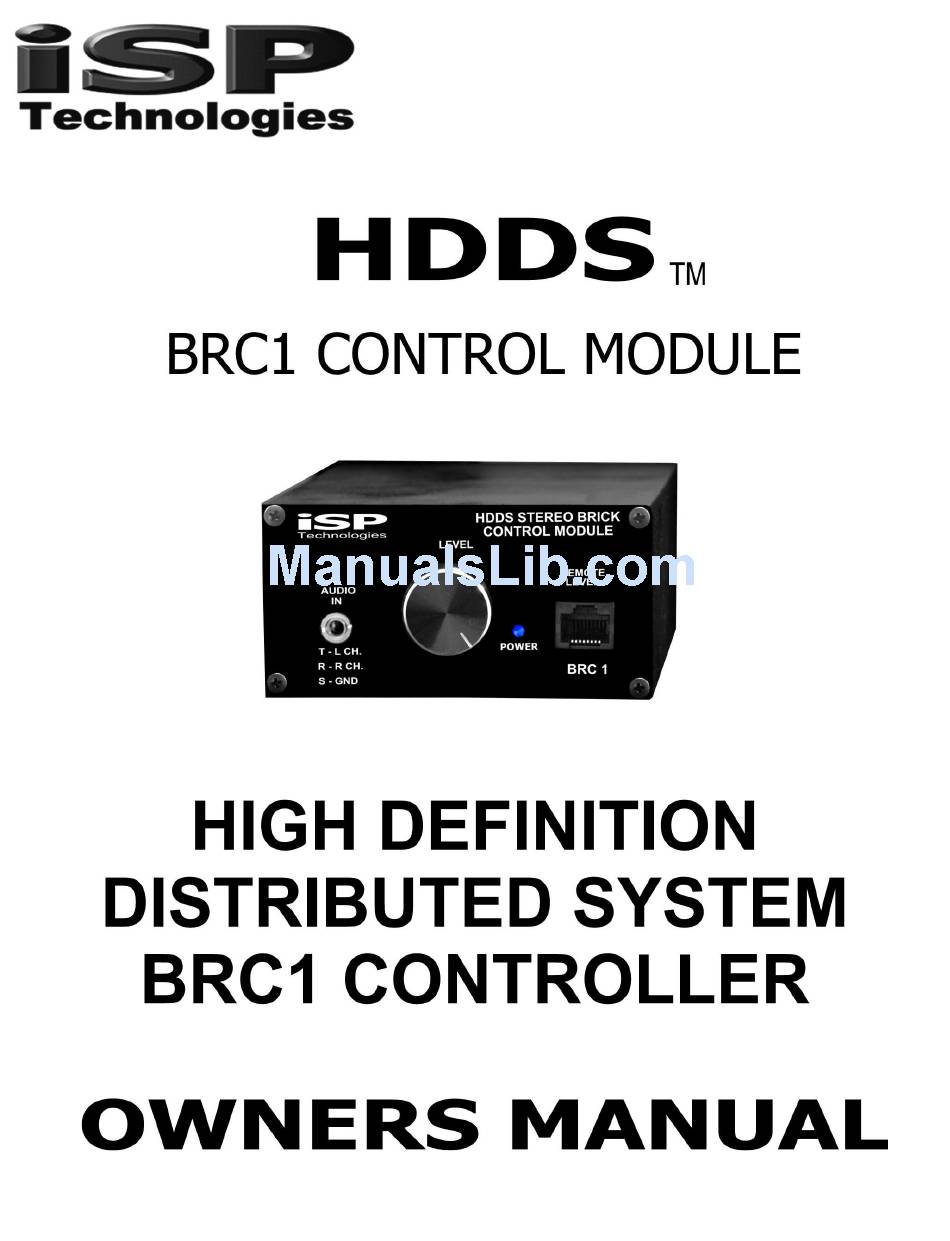

Summary of Contents for iSP Technologies BRC1
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS! Please read this very carefully before operating this unit Read ALL instructions carefully before using this unit. Do not operate this unit near water, in the rain, or where there is moisture. If this warning is ignored a serious electrical shock or death may occur. - Page 3 INTRODUCTION Thank you for your purchase of the ISP Technologies High Definition Distributed System BRC1 CONTROL MODULE. This product provides a new level of performance in distributed audio systems allowing greater system flexibility and easy installation of distributed sound. All outputs and control connections are made via Cat5 RJ45 connections making installation of systems faster and easier using the BRC1 Control Module.
-
Page 4: Operation
OPERATION The HDDS BRC1 Control Module is used as a control module for distributed sound systems using the HDDS technology. The BRC1 Control Module provides a single stereo zone designed to be used as a stand-alone distributed sound system. The simplified... - Page 5 Front Panel Controls 1. 1/8 inch RTS Input Jack 2. Master Level Control 3. Power LED 4. Remote Level RJ45 Port Rear Panel 1. Power Connector 2. Left Zone Output 3. Right Zone Output 4. Left / Right RCA Input Jacks 5.
- Page 6 Principles of the Master Control Module operation: The HDDS BRC1 allows connection of a stereo source via the rear panel Left / Right RCA input connector. A second input on the front panel allows connection for any external 1/8 inch RTS jack for connection to an IPOD, mp3 player or Computer Audio connections.
- Page 7 The figure below shows the connections used for the external Remote Zone Level Control. The BRC1 feeds 10VDC down the Cat5 cable and sets the zone level based on the DC Voltage that appears on pin 5 of the Cat5 cable. The level adjustment is done...
- Page 8 HDDS MASTER CONTROL MODULE SPECIFICATIONS POWER CONSUMPTION: 2.2 Amp Typical @18VAC AUDIO INPUT: Stereo RCA , Stereo RTS 1/8 inch LEVEL CONTROL: INTERNAL VCA CONTROL REMOTE CONTROL LAW: 10VDC – OVDC 1V / 10DB MUTE CONTROL: Pull to ground 100db L / R OUTPUT POWER: +/- 22VDC WEIGHT:...
-
Page 9: Warranty And Service
In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem, and send it to: ISP Technologies, LLC 5479 Perry Drive Unit B Waterford, MI 48329 Attn: Repair Dept.
