Synel PRX-20 User Manual

Introduction

PRX-20 card reader is a non-contact high performance card
reader with ABA (14 & 13 char), standard Wiegand 26 bits
and Wiegand 44 bits output format. These units are mainly
used as card reading support for access controllers and are
characterized by their smart and elegant appearance, simple
wiring and stable performance.

Specifications:

Dimensions Model
L120x W45x H21 (mm) PRX-20

Power supply

Operating Voltage: DC 5V-12V: Maxi-
mum Current Consumption: 80mA;
Ambient temperature Operating temperature: -10C ~ +55C;
Storage temperature: -10C ~ +60C;
Humidity Operating: 20%~98%; Storage:
5%~90%;
Available Output Standard wiegand 44BIT; ABA Synel (14
format char); ABA Linear (13 char)

Cable description

10 wires #24 wg (3 m.)

Type of cards

EM card* reading distance: 80- 150mm (subject to
quality of the card)
* Any card of 64bit memory array used by H4001 CMOS
integrated circuit, by EM Microelectronic-H4100/4102 or
compatible.
Clock & Data ABA (14/13 char), standard Wiegand 26 bits and
Wiegand 44 bits output format interface, photo coupling seclusion
OC gate output.
RS-422 Differencial outputs:
Connection distance up to 300m.
TTL outputs: up to 15m.
Note: In case of reading errors, 1K pullup resistors can be
added to the Data and Clock outputs (yellow and white
wires).

Operating state: sound-visual state indication

Yellow light
green and red light

Light Indications

Model: PRX-20
Indication
Power on
Ok indication
Weight
Error
indication
300 g

Definition of Wires

Wires color
Red
Black
Yellow
White
Violet
Brown
Blue
Green
Orange
Gray
Differential
Wires color
Red & Black
White & Black
Black & Green
Black & Yellow
standby state
card reading status
Color
Yellow
Green + 1 beep activated by
Red + 3 beeps controller
Wiring Definition
DC 5V-12V
GND
Data0/Data
Data1/Clock
Card Present
Green LED
Red LED
Buzzer
Se1_EX Output Format wire #1
Se2_EX Output Format wire #2
Wiring Definition
D0+ / Data+ ( RS-422 positive signal level)
D0- / Data- ( RS-422 negative signal level)
D1+ / Clock+ ( RS-422 positive signal level)
D1- / Clock- (RS-422 negative signal level)

Output format options

Se1_EX=1, Se2_EX=1 ABA Synel (14 char)
Se1_EX=0, Se2_EX=1 ABA Linear (13 char)
Se1_EX=0, Se2_EX=0 Std. Wiegand 26bits
Se1_EX=1, Se2_EX=0 Wiegand 44bits
Note:
1. Se1_EX=1 or Se2_EX=1 is a free wire, not connected to
any wires.
2. Se1_EX=0 or Se2_EX=0 is a wire connected with GND.

Wiegand Output Format - Further details

D0 and D1 output "0" and "1" respectively.
When outputting "0", D0 experiences a negative pulse and
when outputting "1", D1 experiences a negative pulse.

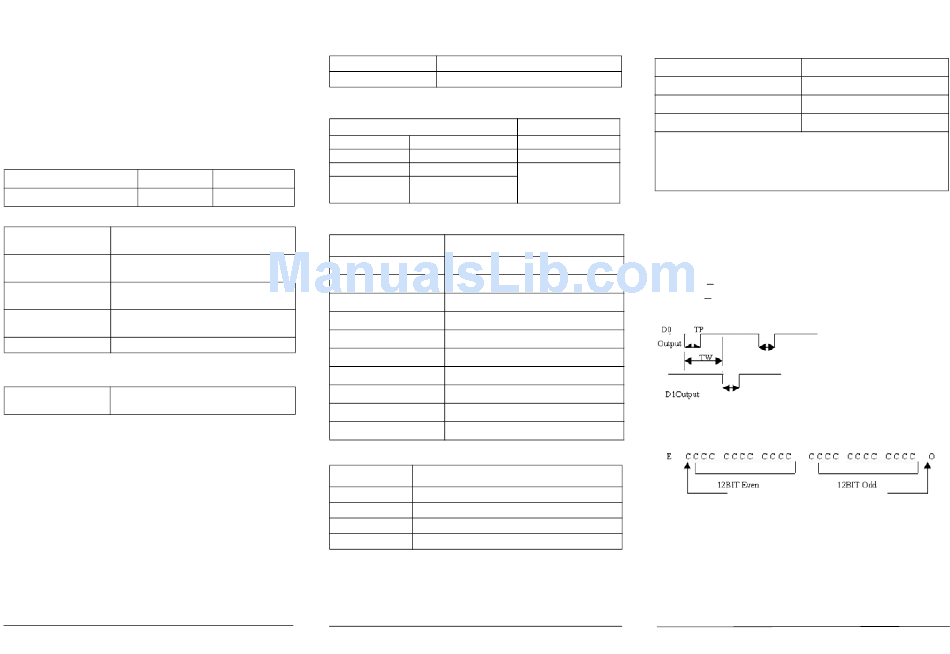

See the following diagram displaying a negative pulse width
of TP=100+10 microsecond; with a repetition period of
TW=1000+100 microsecond and 1 microsecond=1/1000000
a second.
In the following diagram C and O stand for 0 or 1.
E: even check code; O: odd check code
The three bytes in the middle of CCCC CCCC, CCCC
CCCC, CCCC CCCC are the swiped badge number, trans-
mitted from left (E) to right in sequence.
