Summary of Contents for Wiedamark SRL-6043S

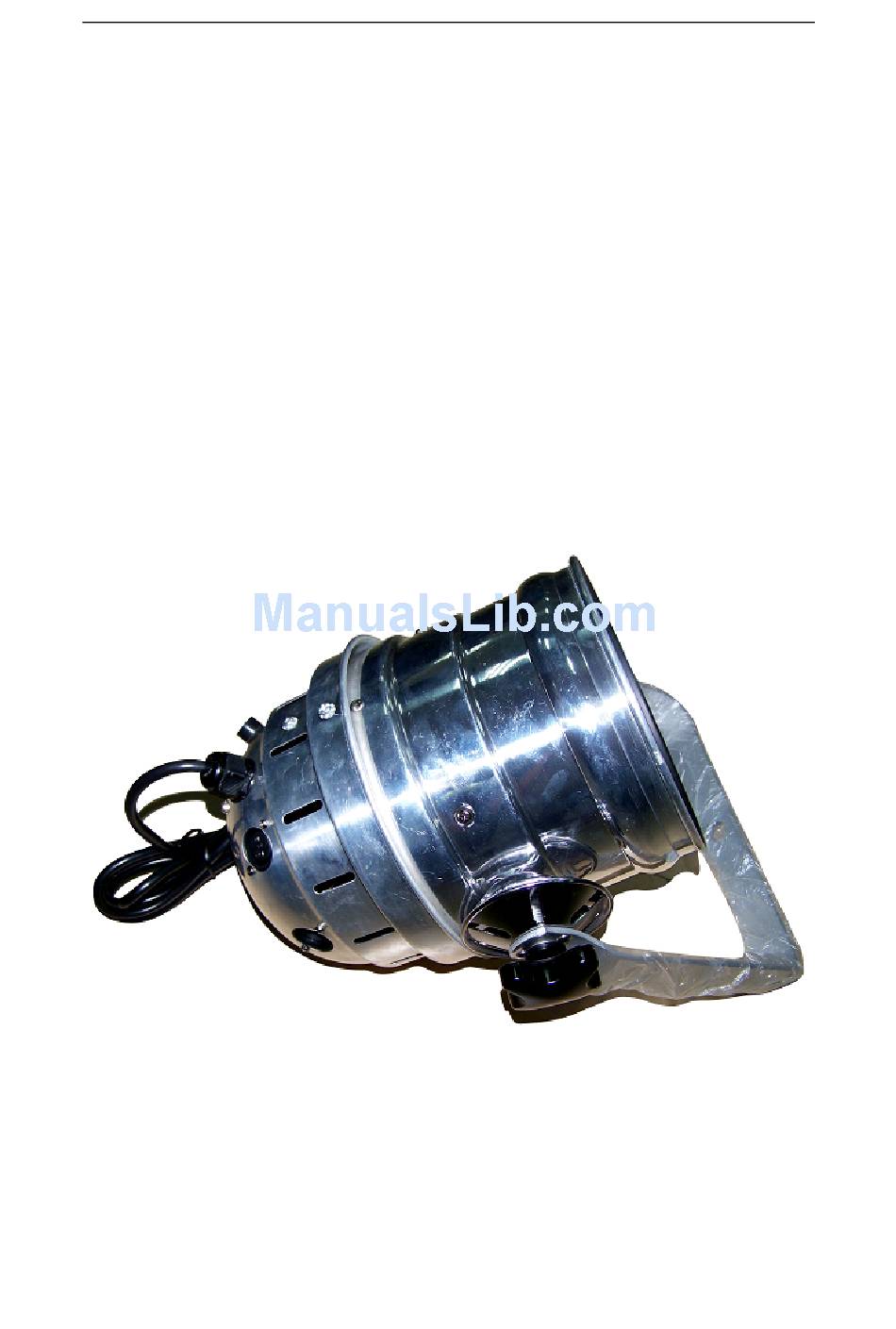

- Page 1 SRL-6043S Par Lamp SRL-6043S Par Lamp USER MANUAL Version 0.9...
-
Page 2: Table Of Contents
SRL-6043S Par Lamp Table of Content Part I General Information 1.1 Introduction……………………………………………………………………………...3 1.2 Safety Information………………………………………………………………..……3 1.3 Unpacking…………………………………………………………………….………….4 1.4 Specifications……………………………………………………………….………..4 1.5 Features………………………………………………………………..………………4 1.6 Panel review …………………………………………………………………………… 4 Part II Installation and Operation 2.1 AC Power……………………………………………………………………………….5 2.2 Understanding DMX…………………………………………………………………..6 A. About DMX………………………………………………………………………...6 B. -
Page 3: Part I General Information
PART I GENERAL INFORMATION 1.1 Introduction Thank you very much for purchasing the SRL-6043S, our 5-channel LED Par Lamp series product that can work in AUTO, AUDIO and DMX mode. To assure reliable performance it designed to, please read the instructions in this manual thoroughly and carefully before application. -
Page 4: Unpacking
SRL-6043S Par Lamp 1.3. Unpacking The SRL-6043S has been thoroughly tested and shipped in perfect operating condition. Check the shipping carton carefully for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for damage and be sure all accessories necessary to operate the fixture have arrived intact. -
Page 5: Part Ii Installation And Operation
SRL-6043S Par Lamp PART II Installation and Operation 2.1 Mounting The fixture can be mounted overhead by a clamp or against a flat surface by the bracket it has. When you mount overhead, you can connect its bracket with the clamp through the center hole. -
Page 6: Understanding Dmx
DMX fixtures try to use the shortest cable path possible. B. DMX Cable Requirements: Your fixture, SRL-6043S uses 3-pin XLR cable as connection media. We provide each fixture with a 3-pin XLR cable for you to chain the fixtures. -
Page 7: Operation Instructions
SRL-6043S Par Lamp Dipswitch 1 address equals to 1 Dipswitch 2 address equals to 2 Dipswitch 3 address equals to 4 Dipswitch 4 address equals to 8 Dipswitch 5 address equals to 16 Dipswitch 6 address equals to 32 Dipswitch 7 address equals to 64... -
Page 8: Mode Choose
SRL-6043S Par Lamp Mode choose A. Auto mode When dipswitches #9
 are both set at OFF, the fixture works in Auto mode. The detailed setting you can check in following table: Combination of Dipswitch #1, #2 and #3 to select different PROGRAM:... -
Page 9: Master/Slave Mode
SRL-6043S Par Lamp DMX channel and function chart Channel Value Function 0~255 Adjust CH1 value 0~255 and brightness of red LED is 0~100% Adjust CH2 value 0~255 and brightness of green LED is 0~255 0~100% 0~255 Adjust CH3 value 0~255 and brightness of blue LED is 0~100%... -
Page 10: Appendix
SRL-6043S Par Lamp APPENDIX DMX address chart SWITHC SET 0 = OFF 1 = ON...
