Summary of Contents for Blueberry TOMCAT

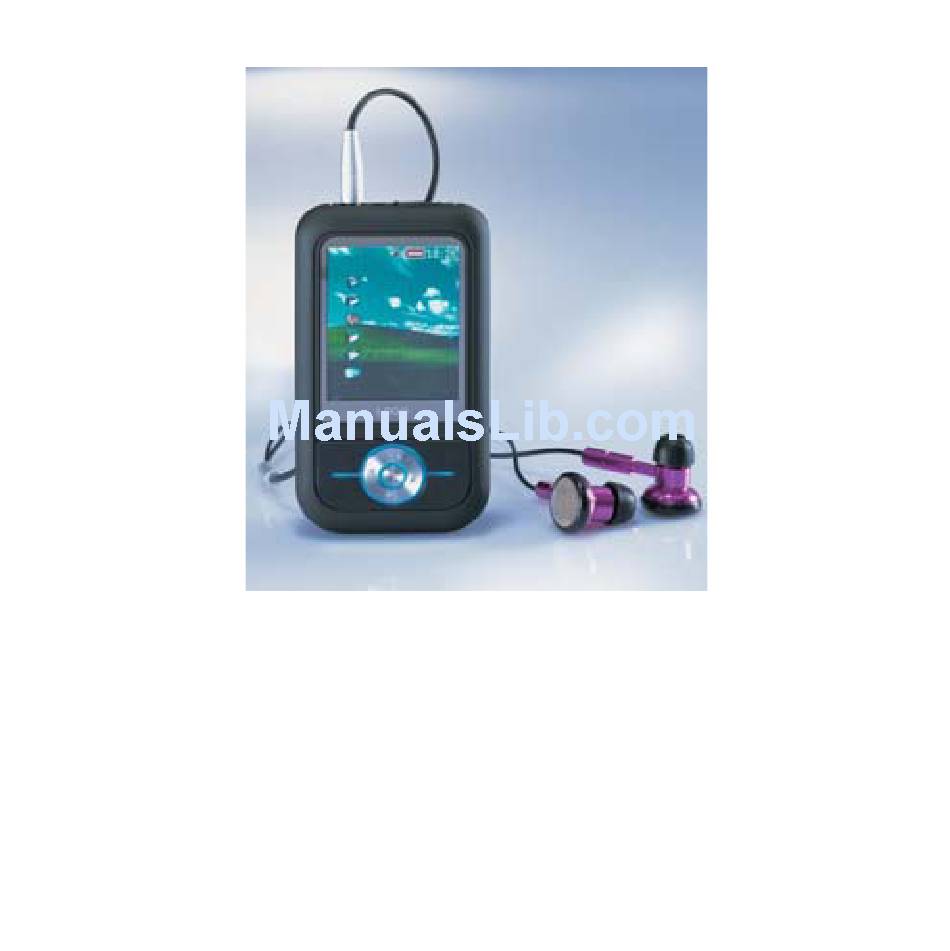

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Index: Features, Basic operation Button description Main menu Music player Movie FM TRANSMITTER Picture view E-book Record, File manager SD card manager Game System settings Download Upgrade and Video Convert Troubleshooting Specifications...

  • Page 3: Features

    FEATURES: Support AVI/MP4/3GP various Video formats (other formats can be converted by software. Support MP3/ WMA/WAV/AAC various Music formats ， lyrical display，5 EQ modes etc. Support Audio formats as following： MP3：MPEG1 level1～3、MPEG2 level1～3、MEPG2.5（Tiptop compression ratio 320kbps，48KHz Sample rate） ； AAC/AAC+：320kbps，48KHz Sample rate； WMA：WMA9.1，192kbps，48KHz；...
  • Page 4 Support Video file formats as following： 3GP、MP4、AVI 3GP = Audio(AAC) + Video(H.263 or MPEG4), General 5-15fps MP4 = Audio(AAC or MP3) + Vi(H.263 or MPEG4), General <30fps Support E-book. Support browse various picture formats of JPG,BMP,GIF etc,and also support 90°circumvolve the pictures . High Quality Digital FM，Support Auto /Manual searching modes，and European/Japan frequency mode.
  • Page 5 1．Basic Operation Power on ： Pull the Power key to on position and shortly press “Play” key Power off：long time press “Play” key and put the power key to off position. System will auto power off and stand by when low battery power.
  • Page 6 2. Button description 1．MIC; 2．▲ UP key 3．ESC 4． forward Key...

  • Page 7: Function Description

    5． Volume Down Key 6． Down key 7． volume up Key Next key 9．MENU 10．Play Key 11．SD card 12．Power key 14. USB interface 15..Earphone interface Function Description 2．1 Main Menu Press OK key to Main Menu. There are 9 functions in the main menu as following: Music, movie, FM Radio, Image, E-Book, Audio Recorder, Explorer Game and Setting.
  • Page 8 2．2 Music Player Music player can support various music formats playing： 1． Support various music format，include：MP3、WMA、WAV、...
  • Page 9 2． Basic operation： Press OK key to play； Shortly Press OK key to pause during playing Press Ok Key 2 seconds to stop press +/- key to adjust volume , shortly press / to choose last and next song. In MP3 playing, AB repeat function can work by pressing M key.

  • Page 10: Basic Operation

    2．3 Movie Movie playing is one of the main features in this device. It supports various Movie formats as following: Hardware support：AVI,3GP,MP4； Software convert support：AVI,3GP,MP4、DAT,VOB etc. Special note： （Free Movie convert software include in CD driver） Movie playing speed: Over 25fps，QCIF format。 Basic Operation：...
  • Page 11 Volume Bar； Forward/Backward Bar； 2．4 FM( Optional) Built-in High quality FM, Japan mode broadcast frequency is from 76 MHz to 91 MHz. Europe model is from 87.5MHz to 108 MHz broadcast frequency. Functions include Press ok key to display the stored stations. press key to adjust volume press “...

  • Page 12: Fm Transmitter

    Press MENU button to navigation menu and make setting as read, save, delete etc. Also can preset maximum 20 channels； Europe/Japan Mode； FM Transmitter (optional) 1. Press it and will show turn on /off ,please choose turn...
  • Page 13 2.choose it first, and press “ok” button to enter into...
  • Page 14 3. Please press” ok” button 4.Insert earphone into the jack of the MP3 player,the earphone is antenna. 5.Under “Music” playing mode, long press “MODE” 3 seconds to enter into the FM transmiter; 6. press <</>>to adjust the frequency of MP3 player and fixed one channel first or the frequency sound of Car and fixed one channel first ,after you fixed one of them frequency,then please adjust the other one, when you adjust the MP3 frequency is the same with the...
  • Page 15 3.Please choose turn off ,then the FM Transmitter closed REMARK: Please turn off the FM transmitter when you do not need it for save battery 。 Please must turn off the FM transmitter when you are listening the music and FM radio for keep the good sound and controlling volume .

  • Page 16: Picture View

    2．5 Picture View 1. Support BMP, JPG, GIF picture format 2. Support catalogue preview picture to choose preview or not. . 3. Support picture 90 degree rolling. 4. Support slide play. 5. Support picture information displaying, including mode name, format, 6.
  • Page 17 On “Image” mode, choose the picture which you want to set to background. When the picture is displaying, firstly,long press “M” button 3 seconds to enter into “Image Browser Menu”, then choose “Save to Standby Image”, press “OK” button to save it . (the picture pixel must be 176 x220) On “Setting”...

  • Page 18: E-Book

    2. Please choose turn on The standby Picture 2．6 E-Book Support E-BOOK function, features as following; Support TXT Support E-Book Browse setting, press Menu button shortly enter into “E-book operate mode”, press “Forward” or “Backward” button(or press “v/+” “^/-” shortly choose: setting Background...
  • Page 19 “backward” button )shortly under e-book Menu start page viewing; press “^/-” or “V/+” start line viewing. Support bookmark function(the latest page recall function)

  • Page 20: Sd Card Manager

    2．7 Record Choose “record” under main menu, press “ok” button shortly entering into “Record”. Record: Press “ok” button start record, re-press “ok” button stop the record and autosave the record files in the “record file list”, the format for the record file is WAV, it plays in “record audio player”. 2．8 File Manager (SD card Manager) Under main menu, press “ok”...

  • Page 21: Game

    2．Support Subdirectories management 3．Choose to set default save path. Default music file path is AUDIO, Default video path is MOVIE, default pictures path is IMAGE, default text path is EBOOK. 2．9 Game The machine include some interesting games for entertainment as following:...
  • Page 22 Explode bigboat Throw egg...
  • Page 23 Russian Diamonds Bet 21...
  • Page 24 7 color block Guess...

  • Page 25: System Settings

    2．10 System Setting：...
  • Page 26 Choose system setting to make adjustment. Setting include:： Language Setup: English, Spainish,Greek ,etc. Keytone setup Free space information； Version Information； Default Setup； Individuation setup: power off, Standby pictures, Starting music, auto power off , low battery, screen saving etc.

  • Page 27: Download

    3． Upgrade and Download The machine supports standard USB port. It is easy to use as Pendrive by connecting USB cable to PC USB Port. Windows system( Win98 above) can recognize the machine automatically. 3．1 Upgrade Under the power off state, Press “M” key and do not release until you connect USB cable to computer, then the screen will appear the words like: 1 Clear to format...
  • Page 28 capacity of 16MB and put the new firmware files which we put on the disk to cover the old files. Now congratulations, you have finished the upgrade, take off the PLAYER from the computer. 3．2 Download The system only can read four folders, please do not revise the name of folder or delete it, otherwise it will work abnormality.
  • Page 29 4. Video Convert This program used convert video files into AVI.MPEG1/2/4.QuickTime.Window Media.3GP.VOB.DAT convert to Video file of XviD/H263 and audio file to AVI file. Install operation steps are below: 1. Run “AVI Convert Tools”, double click “Mp4Tool_E130.exe” to choose the folder where to save the AVI files, and operate it step by step to install it.
  • Page 30 Press File/Open source to choose the original file, such as AVI. MPEG1/2/4.QuickTime.Windows Media.3GP.VOB.DAT etc. 2. Browse the original file: Press “play” button to browse the original file , and you also can pause / next forward / stop / display playing time / adjust volume.
  • Page 31 movie .The buttons of “Start” , “Finish”, “Clear” are the original movie’s, it is valid when the movie is playing ,and it can mark the edit time . Movie convert : Press “convert” button to convert movie. Convert time means the time it has converted / the length of movie convert;...

  • Page 32: Troubleshooting

    hardware safely” function. 7. Troubleshooting No power Check whether the battery has been charged. Check whether it is play or not after connected with computer. Characters Check whether the right language has been display is corrupt selected. FM radio is not clear Adjust the distance of earphone string’s direction and player.

  • Page 33: Specifications

    Specification LCD display 176*220 DOTS TFT 2.2” Display driver (LCM) Hx8312 USB Interface USB2.0 （FULL SPEED） Capacity Nandflash ( 256M/512M/1GB/2GB/4GB) Rechargeable battery Battery Play MP3 music about 6 hours or play movie about 3 hours after full charged Sample rate 8KHz Recording Recording...
  • Page 34 Frame About 30fps <CIF Earphone （L）15mW＋（R） output 15mW（32Ohm） MP3 bite rate 16K bps – 320K bps MP3、WMA、WAV Frequency 20Hz---20KHz response S/N rate >85dB Distortion rate <0.1% frequency 76MHz – 91MHz / range 87.5MHz – 108MHz Station number FM Radio Earphone （L）15mW＋（R）...
  • Page 35 Operate System Windows98/SE/ME/2K/XP...
