ALIBI ALI-BC1080PVF Quick Installation And User Manual

ALI-BC1080PVF HD-TVI Outdoor
Infrared Bullet Camera
Quick Installation and User Guide
The ALI-BC1080PVF camera feature a 1/3" CMOS image sensor that delivers HD-TVI high-definition video
resolution over RG59 coax or any standard analog CCTV cabling. These HD video camera is ideal for security
applications that require a high level of detail, such as facial recognition or license plate identification.
Features
CMOS image sensor
•
HD-TVI technology produces 1080p HD video for sharp, detailed images
•
2.8 - 12 mm vari-focal lens with viewing angle of 78° ~ 28°
•
Built-in IR LED enables the camera to see up to 164 feet in the dark
•
Smart IR technology reduces over-exposure of the IR LEDs at the center of the image
•
True day/night (ICR) captures sharp, clear images in low light and at night
•
OSD (On-Screen Display) controls for customizing the camera settings for the installation venue
•
-4 °F ~ 140 °F temperature operating range
•
IP66 weather-rated housing
•
Mounting
base
Adjustable
mounting
bracket
Camera body
OSD Controller
Lens Adjustments

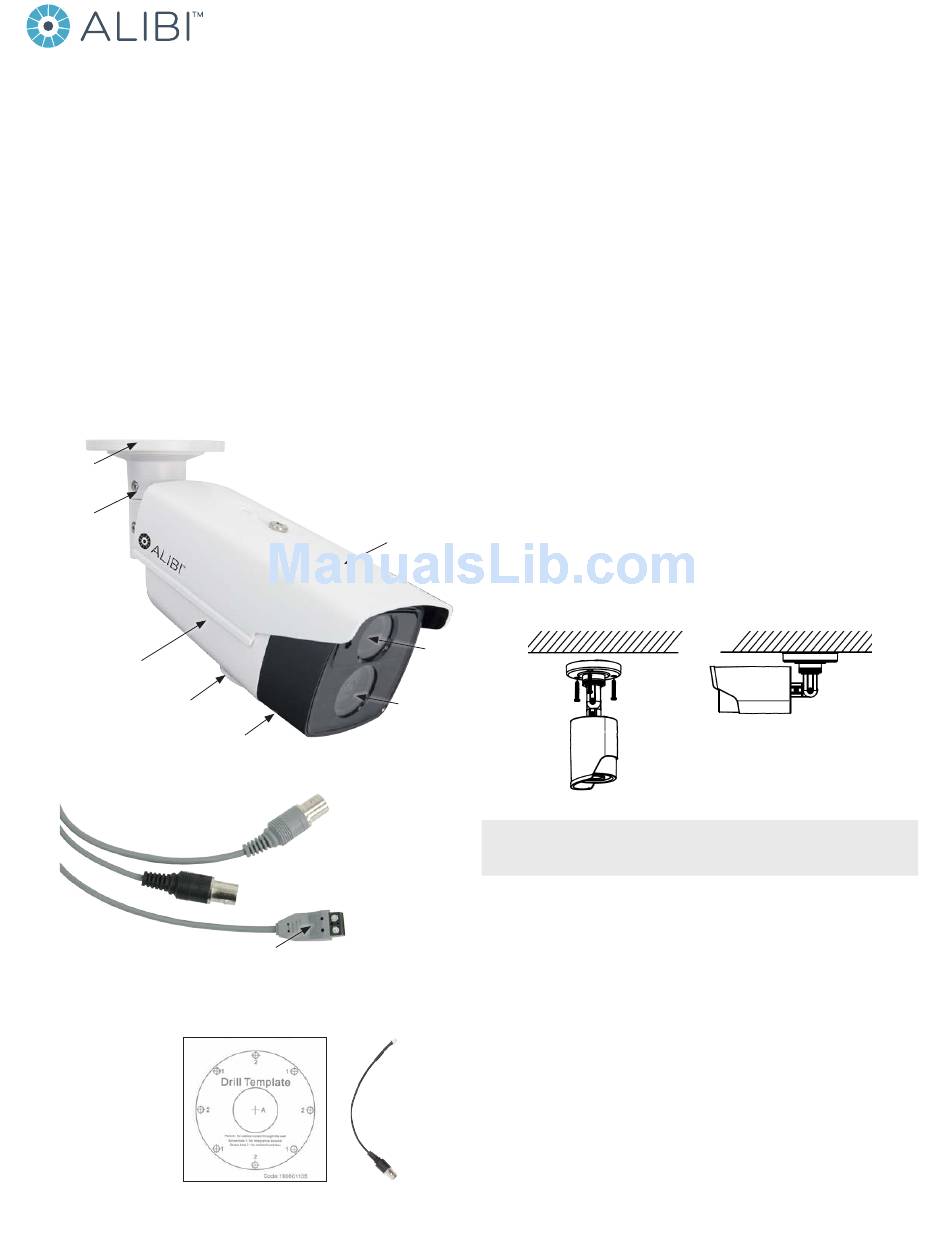

ALI-BC1080PVF camera
Polarity Markings
Camera drop cable connectors
What's in the box
Camera assembly
•
Mounting hardware
•
Video test cable
•
Drill template
•
This installation guide
•
www.observint.com
1
Sun shield
IR LED
HD-TVI video BNC
Connector
CVBS video BNC
Connector
Power
Connector
Video Test
cable
TOOLS YOU NEED
To install the camera, you will need:
12 Vdc or 24 Vac power source. See Specifications for wattage requirement.
•
Tools and additional fasteners (may be required) for mounting the camera
•
Phillips #2 screwdriver
•
Video and power extension cables
•
CCTV video setup monitor (optional)
•
INSTALLATION
Before installation:
Make sure that the device is in good condition and all the assembly parts are included.
•
Check the specification of the products for the installation environment.
•
Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
•
To avoid fire or shock hazard, use only UL listed power supplies. Verify that the power supply will
•
provide the rated voltage and wattage for the camera. See the Specifications section.
During installation:
Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
•
array shield becomes soiled, clean it only with approved products. See the
Monitor impedance: Set the monitor impedance switch to 75 Ω.
•
Power supply: Camera drop cable: The camera drop cable includes two connectors:
•
Video BNC connector: For transmission of the video signal across a coax (75 Ω) extension cable.
—
Power connector: When applying 12 Vdc power, observe the power polarity. The polarity is
—
marked on the connector.
Mounting the camera
These cameras can be mounted on a wall or ceiling that has sufficient strength to support it. The video/
power drop cable from the camera can be routed either through mounting surface or through a cable guide
on the edge of the mounting base.
Lens
If mounting the camera on a wall, ensure that the label on the mounting base, "
NOTE
If mounting the camera on a ceiling, orient the mounting base so that the cable guide is pointing
away from any source of water, dust, and other contaminates.
1. Using the drill template provided, mark the location of the screws that anchor the mounting base
to the mounting surface. See the note above. If you are routing the drop cable through mounting
surface, also mark the position of the hole for the drop cable.
2. Drill holes for the screws that anchor the base to the mounting surface. The mounting hardware
provided is appropriate for most surfaces. However, depending on the surface materials, more
appropriate fasteners may be required.
3. Drill a 3/4" hole through the mounting surface for the drop cable, if necessary.
4. Route the drop cable through the hole in the mounting surface, or through the cable guide in the
mounting base, then attach the camera assembly to the surface using the appropriate fasteners.
5. Connect the camera drop cable to video and power extension cables as required. NOTE: The
camera includes both an HD-TVI and CVBS video drop cables.
6. Connect the other end of the video extension cable to a video monitoring device, such as a CCTV
system monitor or HD-TVI compatible DVR.
Cleaning
Typical ceiling mounting
section.
," is down.
Bottom
ALI-BC1080P_CQ
9/24/14
