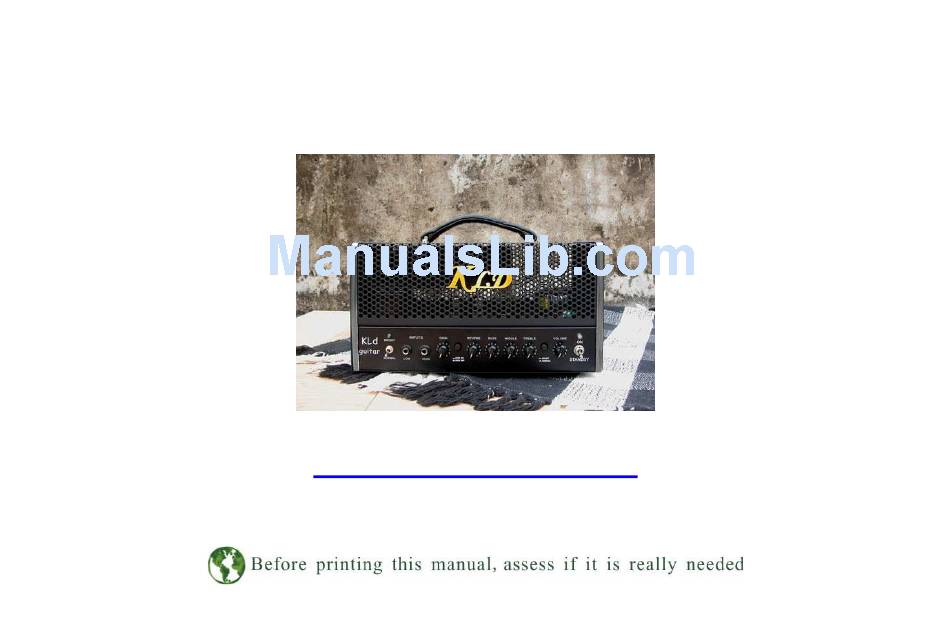

- Page 1 KLD Guitar AMP Uranus-5H(M) Tube Guitar Amplifier Manual Kailing Electronic co.Ltd http://www.kldguitar.com...
- Page 2 Intended to alert the user to the presence of un-insulated “ dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product CAUTION: Before you “ON”...
- Page 3 Toroidal Transformer Output jack for external speaker: 4 ohms and 8 ohms.2x8ohm, 2x16ohm Hi-Lo impedance input Controls: Gain, Reverb, Bass, Middle, Treble, Volume Booster/Normal SW Bright/normal SW Head phone with emulator of speaker, Amp can be used only connecting headphone , don’t need connect cabinet. Spring reverb with control XLR out FS jack...
- Page 4 NORMAL/BRIGHT: (2) Push for more bright sound LOW INPUT: (3) The Input jack will accept signals from low impedance guitar pickups, Be sure to use a high-quality shielded cable to connect the guitar to the amplifier . HIGH INPUT: (4) The Input jack will accept signals from high impedance guitar pickups, Be sure to use a high-quality shielded cable to connect the guitar to the amplifier 5.
- Page 5 14. LED OF STANDBY (14) 15. POWER SOCKET: (15) 16. POWER ON/OFF: (16) 17. PENTODE/TRIODE SW (17) 15w/7.5w power switch 18. SEND (18):(EXTERNAL) Output sending signal to external effects or signal processing equipment. 19. RETURN: (19)(EXTERNAL) Input returning signal from external effects or signal processing equipment 20.
-
Page 6: Power Amplifier Section
. OUTPUT: (23) Provide for connection of external 4ohms speaker cabinet. NOTE: The way connect with speaker (1) Connect two speakers at same time, The impedance of each speaker must 8ohms (2) If you only connect one speaker, please connect according to the impedance. 24. - Page 7 Nominal Level is with Input Gain @6 MINI level is with Input Gain @ 12 Preamp Normal Input Impedance: Very high Z, 470Kohm Lead Channel (Post Gain @ 12) Nominal Input level –40dBv, 10mV RMS MINI Input Level: -70 dBV, 0.3mV RMS Nominal Input Level: -17 dBV , 140mV RMS MINI Input Level: -28dBV, 40mVRMS...
- Page 8 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using electric products, basic cautions should always be followed. WARNING WARNING: : : : WARNING WARNING 1. Read all safety and operating instructions before using this product. 2.
- Page 9 11. The power supply cord should be unplugged when the unit is to be unused for long periods of time. 12. If this products is to be cleaned with damp rag. The vinyl covering used on some units can be cleaned with a damp rag or an ammonia-based household cleaner if necessary.
