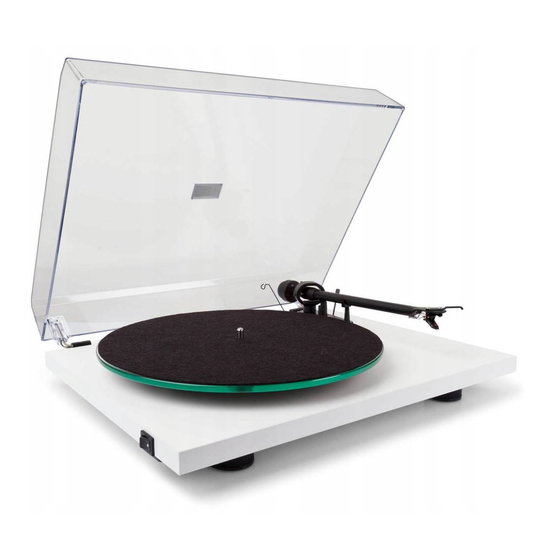

argon audio tt-2 Owner's Manual
Hide thumbs Also See for tt-2:

Advertisement

02
OWNER'S MANUAL
03
ILLUSTRATIONS
04
CONNECTIONS
06
SETUP & USAGE
10
SPECIFICATIONS
11
TROUBLESHOOT
w w w . a r g o n a u d i o . c o m
TT- 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tt-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for argon audio tt-2

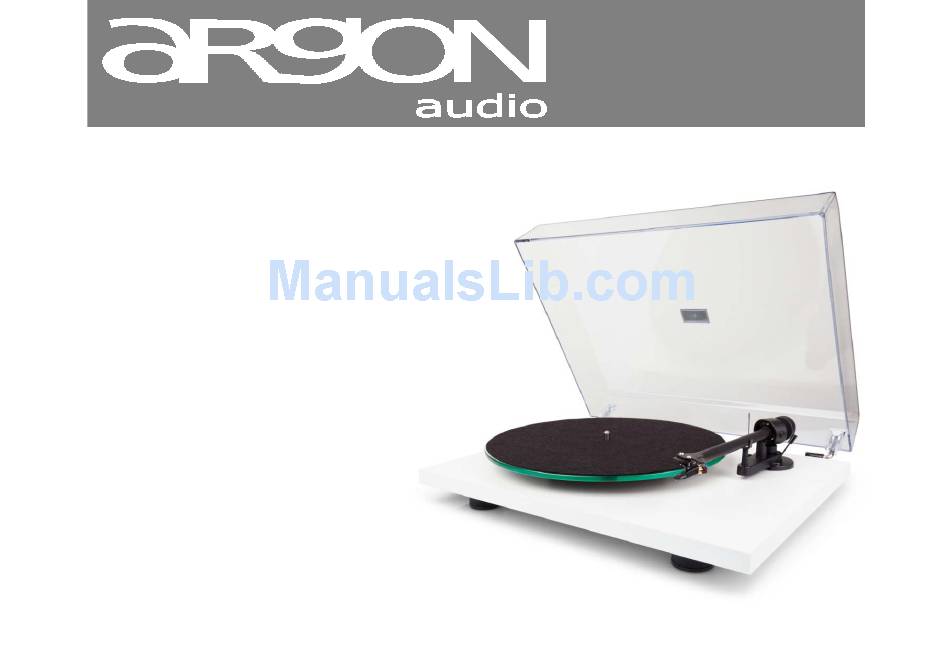

  • Page 1 TT- 2 OWNER’S MANUAL ILLUSTRATIONS CONNECTIONS SETUP & USAGE SPECIFICATIONS TROUBLESHOOT w w w . a r g o n a u d i o . c o m...
  • Page 2 Value-for-Money as the primary aim. And Argon Audio is a brand fully compliant with these Environmental information values. Argon TT2 complies with international directives on the...
  • Page 3 TT- 2 Please contact the manufacturer to be referred to an authorized service center near you. To prevent risk of fire or electric shock, avoid over loading wall outlets, extension cords, or integral convenience receptacles. Do not let objects or liquids enter the product. Use proper power sources.
  • Page 4: Controls, Features And Connections

    TT- 2 Controls, features and connections w w w . a r g o n a u d i o . c o m...
  • Page 5 TT- 2 Controls, features and connections Connections especially for USB version Motor transportation screw (marked red) Stepped drive pulley Drive belt * - 3a Hook Platter with felt mat * Tonearm counterweight * - 6a Downforce scale Tonearm lift lever 8/18 Tonearm rest and removable transport lock Tonearm tube - 9a Tonearm base...
  • Page 6 In order to achieve maximum performance and reliability with this record player you should study these instructions for use carefully. The Argon Audio TT2 record player is supplied with a factory fitted and adjusted cartridge. ** The following instructions for adjusting the cartridge are provided in case the cartridge is replaced by a different model at a later date.
  • Page 7: Anti-Skating Force Adjustment

    Connection to the amplifier The Argon Audio TT2 has a captive tonearm signal lead (14) for connection to the amplifier. Use the Phono input (sometimes labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge used.
  • Page 8 The full sound quality of the Argon Audio TT2 can only be achieved if the cartridge is correctly adjusted. If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of your Argon Audio dealer to accomplish this task for you.
  • Page 9 TT- 2 Adjusting the azimut ** The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations correctly. A small screw at the bearing end of the arm allows incorrect azimut to be corrected if your needle is not mounted exactly perpendicular to the cartridge body (which is often the case).
  • Page 10 TT- 2 Technical specifications Argon Audio TT2 Nominal speeds 33,33/45,11 r.p.m.. Speed variance ±0,8 % Wow and flutter ±0,12 % Signal to noise -65dB Downforce range 10 - 30mN Effective tonearm length 8,6 " ( 218,5mm) Overhang 18,5mm Power consumption...
  • Page 11 Troubleshoot - Potential incorrect use and fault conditions Argon Audio turntables are manufactured to the highest standards and undergo strict quality controls before leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but can sometimes be caused by incorrect use or unfortunate circumstances.
