Lava 8255-PIO Datasheet

Lava The Source for Ports

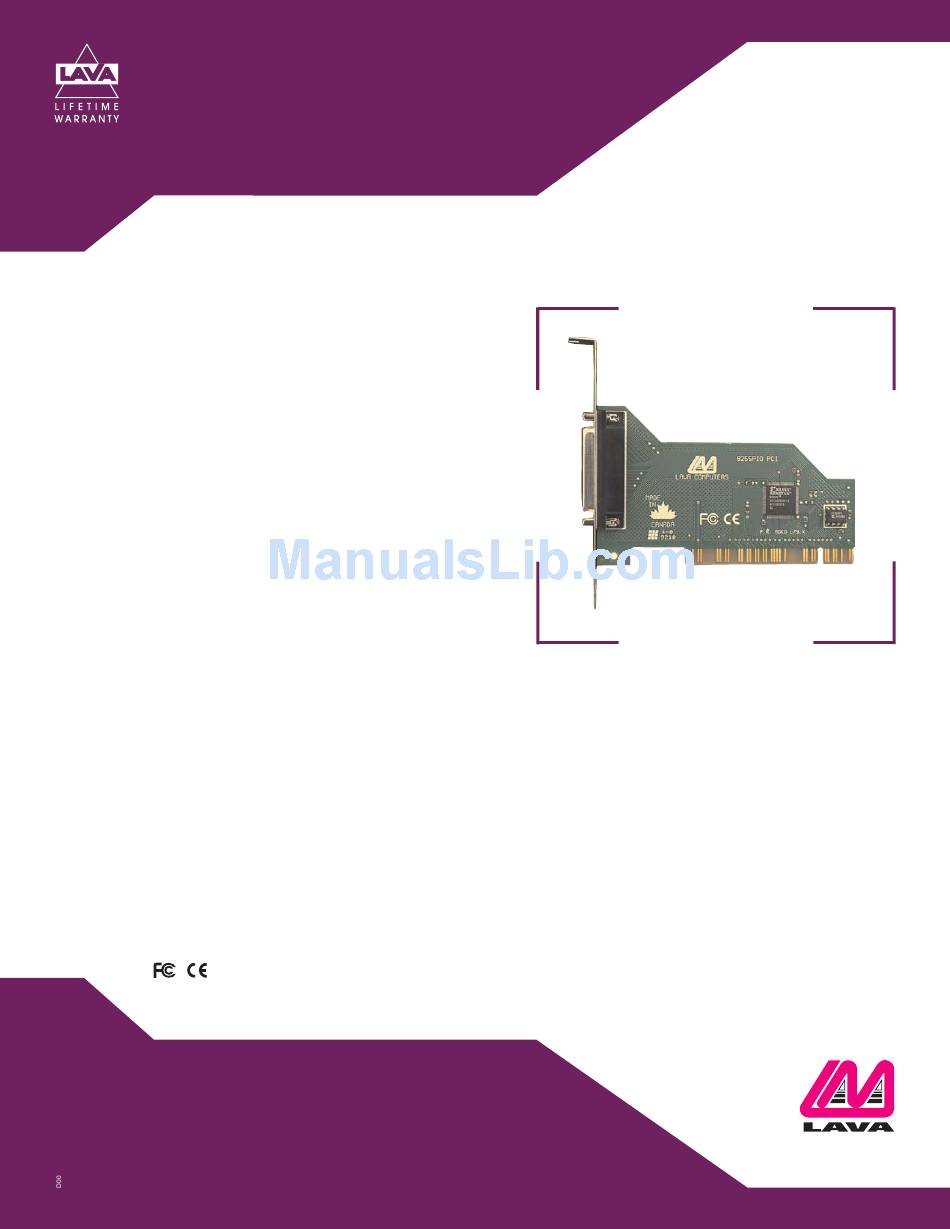

LAVA 8255-PIO
Programmable Peripheral Interface
(PPI) Board
PCI Bus Versatile Programmable
Interface Board
Features & Benefits
Adds three 8-bit TTL compatible I/O ports to
l
PCI-equipped PCs
I/O ports provide up to 24 lines of fully
l
programmable digital I/O (1 bit per line)
Enables interfacing any device to a PC
l
Easily programmable in assembler, QBasic,
l
Turbo C, C, etc.
Compliant with PCI Specification 2.1
l
Lava Lifetime Warranty
l

Connectors

One DB-25
l

Address (HEX/DEC)

218-21F (536-543)
250-277 (592-631)
280-2EF (640-751)
300-31F (768-799)

System Requirements

PCI host slot
l
Drivers ship with product. For updated software
support visit www.lavalink.com.
2 Vulcan Street
Tel: 416.674.5942
Toronto, ON Fax: 416.674.8262
Canada M9W 1L2 Email: sales@lavalink.com

Description

Address (HEX/DEC)
Available 390-39F (906-927)
Available 3AA-3AF (938-943)
Available 3B0-3BF (944-959)
Available 3F8-3FF
www.lavalink.com
Description
Available
Available
Available
COM 1
