Genie CCTV AC7000SC User Manual

Intercom system genie cctv ac7000sc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AC7000
User
uide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC7000SC and is the answer not in the manual?

Questions and answers

Summary of Contents for Genie CCTV AC7000SC

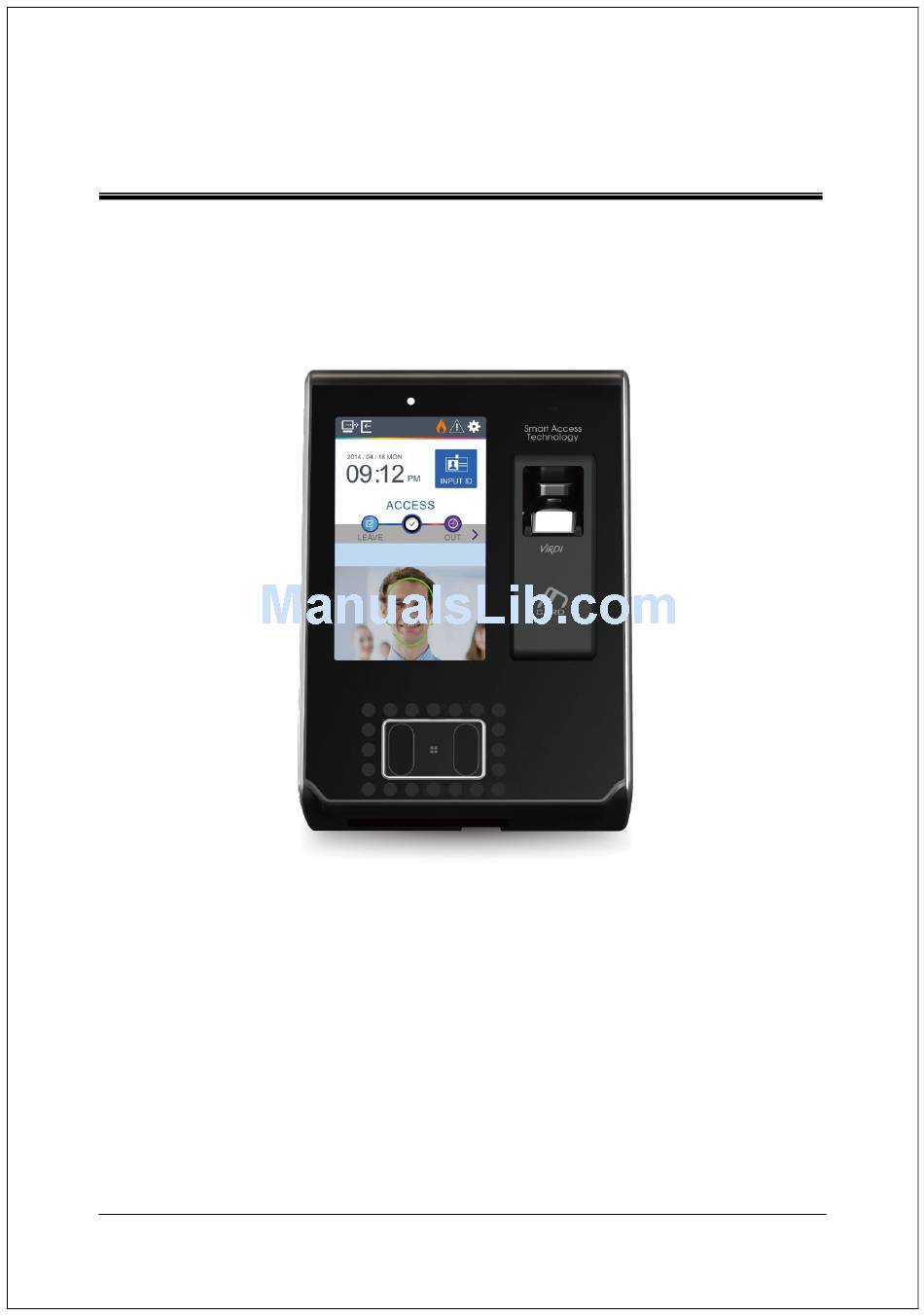

  • Page 1 AC7000 User uide...

  • Page 2: Revison History

    AC-7000 User guide <Revison History> Version Date Description Firmware Version 1.00 2014-08-14 Initial Release 0.0.x.51.00-000.06...
  • Page 3 AC-7000 User guide < Glossary>  Admin, Administrator - A user who can enter into the terminal menu mode, he/she can register/modify/delete terminal users and change the operating environment by changing settings. - If there is no administrator for a terminal, anyone can change the settings. In this regard, it is recommended to register at least one administrator.

  • Page 4: Table Of Contents

    AC-7000 User guide Contents <Revison History> ....................2 <Term Definition> ........Contents ........... 1. Before use ......................6 1.1. Safety precautions ....................6 1.2. Specific names of the terminal ................7 1.3. Window after operation ..................8 1.3.1. Icon ........................ 8 1.3.2.
  • Page 5 AC-7000 User guide 3.6. System ........................44 3.6.1. System ......................44 3.6.2. Fingerprint recognition .................. 44 3.6.3. Face recognition ................... 46 3.6.4. Authorization ....................47 3.6.5. Present time setting ..................49 3.6.6. Database ...................... 49 3.6.6.1. Delete all the users ................50 3.6.6.2.

  • Page 6: Before Use

    AC-7000 User guide 1. Before use 1.1. Safety precautions  Warning Handling with wet hands or allowing liquid to flow into it Do not place a fire source is prohibited. near the terminal. -> cause -> It may cause a fire. electric shock or damage.

  • Page 7: Specific Names Of The Terminal

    AC-7000 User guide 1.2. Specific names of the terminal Illuminance Microphone sensor Touch LCD Fingerprint sensor Card input IR LED Dual camera SD card input Speaker...

  • Page 8: Window After Operation

    AC-7000 User guide 1.3. Window after operation ① Connection state with the server ② Current state of the entrance ③ Warning signals such as terminal separation ④ Fire sensor Menu button Present time ID input button Entrance mode selection button (Indication of the state of the entrance) User guidance message Camera movie display...

  • Page 9: Message

    AC-7000 User guide 1.3.2. Message - Basic window - When authorization is successful - When authorization is failed. - When unregistered user ID is entered.
  • Page 10 AC-7000 User guide - When unregistered card is entered - Passback error when using anti-passback function. - When a user tried the authorization more than twice in one meal time when using as meal personnel management - When the server does not respond during the authorization attempt to the server - When the network is disconnected during the authorization attempt to the server...
  • Page 11 AC-7000 User guide - When the terminal is set locked - When it is not the meal time when set in the meal personnel management. - The state waiting for the input of the user ID...

  • Page 12: Sounds In The Operation

    AC-7000 User guide - The state waiting for the input of password - The state waiting for the input of fingerprint - The state waiting for the input of the card -When the terminal program is being upgraded (In this state, you should not turn off the terminal) 1.4.

  • Page 13: Beep Sound In The Operation

    AC-7000 User guide When the authorization was Please try again. failed. 1.5. Beep sound in the operation Sound at the When the card was read reading Pick When the fingerprint was entered in the fingerprint fingerprint window card Pi-pick When failed When the authorization was failed When Pi~ik~...

  • Page 14: Proper Fingerprint Registration And Input Methods

    AC-7000 User guide - It is recommended to register and authorize at the location where the terminal is installed. - If you pose differently with the registered face, the recognition rate of face can decrease. It is good to locate the full face as much as possible - The thick glasses frame or sun-glasses can decrease the recognition rate of face Cautions in the installation ...
  • Page 15 AC-7000 User guide  Be aware of certain fingerprint conditions Depending on the user’s fingerprint condition, some fingerprints may not be used or may cause an inconvenience.  If the fingerprint is damaged or very unclear, then it cannot be recognized. Please use a password instead in this case.

  • Page 16: Product Introduction

    AC-7000 User guide 2. Product introduction 2.1. Product characteristics  Multi-Modal product with which the user can use both face and fingerprint authorization functions together.  Authorization by automatic tracing the location of face with tilting camera  The face recognition is possible even in the dark place with the illumination sensor and dual camera (color &...
  • Page 17 AC-7000 User guide Card or face Card, face registration Card or face authorization Card & face Card, face registration Face authorization after the card authorization Face Face, password registration password Face authorization or password authorization when the face authorization was failed after ID input Face &...

  • Page 18: Product Components

    AC-7000 User guide 2.2. Product components 2.2.1. Single use (entrance) DC12V Adapter Electric lock (Lock+, Lock-, Monitor) 2.2.2. Connected with PC server (entrance, attendance, meal personnel management) TCP/IP TCP/IP Fingerprint authorization TCP/IP server (static IP) UDB server Internet / database (MDB or MSSQL) WAN / LAN Remote management...

  • Page 19: Product Specification

    AC-7000 User guide 2.3. Product specification Types SPEC REMARK 1GHz Quad Core CPU 5.0 inch Touch LCD(480*800) 4G + 8G Bytes Flash MEMORY 2GBytes RAM External SD Card Data backup / FW upgrade support Camera Tilted Dual Camera (Color & IR) Authorization speed Within 1 sec 250,000 User / 250,000 Card...

  • Page 20: Enverinment Setting

    AC-7000 User guide 125KHz RF / 13.56MHz Smart simultaneous use Card Reader (1 Sam socket) option HID 125K Prox card (option) HID iClass Card (option) SIZE 88.0mm * 175.0mm * 43.4mm 3. Environment setting 3.1. Checks before setting the environment 3.1.1.

  • Page 21: How To Enter The Menu Without Administrator Authorization

    AC-7000 User guide ▶Administrator authorization If you enter the administrator ID, the administrator authorization is fulfilled along with the authorization method administrator such card, fingerprint, face, or password. The administrator authorization only appears when registered administrator exists. authorization is fulfilled only once when entering the menu mode and you can access to all the menu until you quit the main menu.

  • Page 22: How To Save The Set Values

    AC-7000 User guide 3.1.4. How to save the set values If you click the [Complete] button at each menu to save the changed value after the change of settings, the set value of the window is saved and the following message box appears.

  • Page 23: Menu Composition

    AC-7000 User guide 3.2. Menu composition 1.User 1. Addition management 2. Change 3. Deletion 4. Whole deletion 5. Search 2. Network Terminal IP address Static IP / DHCP ▶Terminal IP address ▶Subnet mask ▶Gateway DNS server ▶DNS server 1 ▶DNS server 2 Server IP address ▶Server IP address ▶Port...
  • Page 24 AC-7000 User guide 5. Window setting ▶Background screen ▶Screen saver ▶Location of the watch 4. System 1. System ▶Length of the user ID ▶Authorization: only for terminal ▶Essential registration items □Face □Fingerprint □Card □Password □Name Registration fingerprint number[1~10] 2.Fingerprint ▶1:N level [3~9] recognition ▶1:1 level [3~9] ▶Perceiving fake fingerprint ▶Fingerprint...
  • Page 25 AC-7000 User guide 3. Input setting ▶M0 ▶M1 ▶M2 ▶IO ▶Warning time for opened door(sec) □Warning sound for terminal removal 4. Lock setting ▶Lock1 option ▶Lock2 option ▶Lock1 time (ms) ▶Lock2 time (ms) 5. External terminal ▶RS232 option setting ▶RS485 option ▶Wiegand Site code Wiegand Output...

  • Page 26: Users Management

    AC-7000 User guide 6. About ▶About 8. SD card 1. Export 1. User data 2. Event log 3. System option 4. Sending out all 5. Picture data 2. Import 1. User data 2. System option 3. etc 1. Theme 2. F/W upgrade 3.3.
  • Page 27 AC-7000 User guide Input the user ID to be registered and click [OK] button. In this case, the ID which can be registered is shown on the screen automatically, so you can register conveniently. If you want to change ID, delete the previous value by clicking [ ] button and input the new value.

  • Page 28: Photo Registration

    AC-7000 User guide terminal and can register/modify/delete the information of all the saved users, so be careful to register the administrator. 3.3.1.1. Photo registration Register by clicking [ ] button at the [Add user] screen. Click the [Save] button to register with the present camera image.

  • Page 29: Fingerprint Registration

    AC-7000 User guide 3.3.1.3. Fingerprint registration ①Register by clicking [Fingerprint] button at the [Add user] screen. Click [ ] button to cancel the registration and return. Choose the finger to be registered when the left screen appears. ※ If you register the multiple fingers, the fingers already registered are represented by blue circle If you select the finger already registered, the following message appears, and if you select the...
  • Page 30 AC-7000 User guide ④ The message of the left side appears when the input is completed. If you click [OK] button, the registration is completed and the screen is returned to the upper menu. If it is similar with the fingerprint already registered, the message “Already registered finger!”...

  • Page 31: Face Registration

    AC-7000 User guide 3.3.1.4. Face registration Register with referring „1.6. How to register and authorize the face properly „ ① If you press [face] button on the [Add user] page, you can select either [Regular Registration] or [Quick Registration] If you wish to cancel the enrollment, press the [BACK] button *Registration follows the guideline which enrolls the face in 5 steps after the face and the posture is fixed.
  • Page 32 AC-7000 User guide ③ If the face was recognized properly like the left picture, the guide is turned green and the face registration begins. At this point, you should maintain the stopped state without moving face for the better registration. ④...

  • Page 33: Password Registration

    AC-7000 User guide 3.3.1.5. Password registration If you enter the password in 1~8 characters into the password input window and click [OK] button, the input focus is moved to the „password confirm‟ window at below. Enter the same password again and click [OK] button.

  • Page 34: Authorization Options

    AC-7000 User guide 3.3.1.7. Authorization option ▶‟Fingerprint authorization level‟ (basic setting:‟0‟) It decides the fingerprint authorization level of each user, and the registered users can have different authorization level by modifying this value. If you set „0‟, the authorization uses the level of fingerprint authorization.

  • Page 35: Save

    AC-7000 User guide 3.3.1.9. Save Click the [Save] button to save when all the registration procedure is finished. At this point, if you click [Cancel] or [BACK] button to return, the user is not saved. Next is the LCD messages which can appear at the registration procedure. When you clicked the [Save] button, the case registration was successful When you clicked the [Save] button,...

  • Page 36: Deletion

    AC-7000 User guide In [Register FP], The case you tried to registered the fingerprint already registered. (But, you can input the same fingerprint with the same user ID). ※ If you want to register the same fingerprint in the different ID, you should uncheck the „System  Fingerprint recognition ...

  • Page 37: Modification

    AC-7000 User guide When it is deleted normally. When unregistered ID was entered 3.3.3. Modification The following window appears if you click the [User management]->[Modification] in the main menu. Input the user ID to be modified and click [OK] button. Click [BACK] button to cancel and return.

  • Page 38: Delete All

    AC-7000 User guide The icons at the left side means as follows. : The number of registered faces : The number of registered fingerprints (X,1~10) Existence password registration (O:registration/X:미registration) : The number of registered cards (X,1~10) : User ID to be registered : User : Administrator If you touch the picture, you can register with re-taken...
  • Page 39 AC-7000 User guide If you click the [User management]->[Search] in the main menu, all the users registered can be searched as follows. The user list appears by the order of ID, and if you slide the screen upward, you can search the additional user list.

  • Page 40: Network Setting

    AC-7000 User guide ▶If you input the user name by clicking [Search name] button, the registered user list including the characters is shown. If you click [BACK] button in this window, you can move to the „3.3. User management‟ menu. Ex) If you searched with ‚ma‛, all the users who contain ‚ma‛...

  • Page 41: Application Mode

    AC-7000 User guide the characters can be up to 9 digits. If you touch the item you want to change, the keypad appears at the bottom. If the input is finished with the keypad, continue the input by touching [ ] button or the next input window.
  • Page 42 AC-7000 User guide It is the screen appearing when you select the Access. Click [OK] button to apply the changes, and click [BACK] button to cancel and return. ▶ Basic setting : Same with the window at the left side It is the screen appearing when you select the [TnA].

  • Page 43: Meal Personnel Management Setting

    AC-7000 User guide up to 86,400 seconds (24 hours). 3.5.1.2. Meal personnel management setting It is the screen appearing when selecting the meal management. You can set the time period of each meal type. And if the setting is not needed, set ‘00:00-00:00’. ▶Allow duplicate: If it is unchecked( ), each user can authorize once in the one meal, but if it is...

  • Page 44: System

    AC-7000 User guide 3.6. System 3.6.1. System The following window appears if you select the [System]->[System] in the main menu. ▶ Basic setting : Same with the window at the left side ▶User ID Length It sets the length of the user ID, and it can be 2~9 characters and should be the same with the length of the registered ID of the server program.
  • Page 45 AC-7000 User guide ▶Basic setting : Same with the window at the left side ▶1: N level (3~9) It is the authorization level used in the 1:N Fingerprint authorization. case authorization, the authorization level is not set for each user, so the authorization level of the terminal is always the standard.

  • Page 46: Face Recognition

    AC-7000 User guide If you click the [OK] button, the new format is applied, and if you click the [Cancel] button, the format value before the change is maintained. ※ Cautions: If you change the fingerprint template format, all the registered fingerprints are deleted, so be cautions.

  • Page 47: Authorization

    AC-7000 User guide ▶ Basic setting : Same with the window at the left side ▶Authorization level It is the level used in face authorization, and it can be set 1~4 stages according to the accordance degree with the registered face. And the authorization is successful when the accordance degree is higher than set authorization level.
  • Page 48 AC-7000 User guide ▶ Basic setting : Same with the window at the left side ▶ Terminal authorization type: Select the authorization method of the terminal. - Card: Though the user is registered with the authorization method requiring the face, fingerprint, or password in addition to the card, the terminal with the checking of the item, the card can authorize by itself.

  • Page 49: Present Time Setting

    AC-7000 User guide card layout should be set in the server and applied to the terminal. Click [OK] button to apply the set value, and click [BACK] button to cancel and return 3.6.5. Present time setting If you select the [System]->[Date/Time] in the main menu, the following window appears.

  • Page 50: Delete All The Users

    AC-7000 User guide appears. If you want to delete all the users, click [Delete all users] button. If you want to initialize the settings, click [Delete setting] button. If you want to initialize the authorization record, click [Delete Log] button. If you want to delete image log only, click [Delete image log] button.

  • Page 51: Delete Settings

    AC-7000 User guide In this case, both the users and administrator are deleted, and the restoration is impossible once the data is deleted. 3.6.6.2. Delete settings If you select the [System]->[Database]->[Delete setting] in the main menu, the following screen appears. Click [YES] button to initialize all the set values, and click [NO] or [ ] button to cancel.

  • Page 52: Delete All

    AC-7000 User guide If you want to delete all the image log in the terminal, click [YES], and if you want to cancel, click [NO] or [ button. If there is no signal for five seconds in this state, the message box disappears without deletion.

  • Page 53: Terminal Option

    AC-7000 User guide ▶ Basic setting : Same with the window at the left side. ▶Voice volume Scroll from side to side in 0~15 degrees to set the voice volume. If you click the [ ] button at the right side, the voice is played to check the volume. ▶Beep volume Scroll from side to side in 0~3 degrees to set the beep volume.
  • Page 54 AC-7000 User guide ▶ Basic setting : Same with the window at the left side. ▶ Read card number If the user put the card on the screen, the card number is displayed on the LCD. you can change the [Card format] to check the card number according to the set value.

  • Page 55: Input Settings

    AC-7000 User guide 3.7.3. Input settings If you select the [Terminal]->[Input] in the main menu, the following window appears. ▶ Basic setting : Same with the window at the left side. ▶M0: It is set when connecting the external access point to the DM0 (When using motor lock, set [Door open NO] or [Door open NC].) -None: When nothing is connected.

  • Page 56: Lock Settings

    AC-7000 User guide -Inside Open NO or Inside Open NC: When the exit button was connected -Fire detection NO or Fire detection NC: When the fire detection sensor is connected. -Panic detection NO or panic detection NC‟: When the panic situation detection sensor is connected.

  • Page 57: External Terminal Setup

    AC-7000 User guide ▶ Basic setting : Same with the window at the left side. ▶Lock1 option - None: When it is not used - Strike/Auto/OK: When the warning light is connected to indicate the strike type, auto door, or authorization success/failure on Lock1. - Motor lock 1: When the motor lock is connected.
  • Page 58 AC-7000 User guide window appears. ▶ Basic setting : Same with the window at the left side. ▶RS232 option: It sets the device connected to RS232 port -None: When there is no device connected to the RS232 port -Attendance ticket/Meal ticket: The authorization result is printed when the authorization is successful.

  • Page 59: Display Settings

    AC-7000 User guide 26bit Because it sends “Sitecode[1byte] + User ID[2 byte]”, set the user ID less or equal than 4 digits. Send example) In case of SiteCode:045(2Dh), UID:6543(198Fh)  1 00101101 0001 1001 10001111 0 l34bit Because it sends “Sitecode[1 byte] + User ID[3 byte]”, set the user ID less or equal than 7 digits.

  • Page 60: Language

    AC-7000 User guide If you select the [Display]->[Camera] in the main menu, the following window appears. ▶ Basic setting : Same with the window at the left side. ▶Display option Choose the image displayed in the message window of authorization success - None - Registered user’s picture.

  • Page 61: Lcd Option

    AC-7000 User guide 3.8.4. LCD option If you select [Display]->[LCD option] in the main menu, the following window appears. ▶ Basic setting : Same with the window at the left side. ▶Screen saver setting (10 seconds~ 10minutes) If there is no input for set duration, the LCD screen is turned off automatically.

  • Page 62: Terminal Information

    AC-7000 User guide ▶ Basic setting : Same with the window at the left side. ▶Message display (ms unit) It sets the time for which the authorization result window to be displayed. 0~5000 is available for the value, and the authorization result window...

  • Page 63: Terminal Information

    AC-7000 User guide Click [BACK] button to finish the inquiry and move to the upper menu. Click the menu on the left side to inquire additional item. 3.9.2. Terminal information If you click the [Terminal information] -> [Terminal] in the main menu, the following window appears.

  • Page 64: User Information

    AC-7000 User guide ▶Network information It shows the network setting value of the terminal If you want to finish the inquiry and move to the upper menu, click [CLOSE] or [BACK] button. 3.9.4. User information If you select the [Terminal information]->[User] in the main menu, the following window appears.

  • Page 65: About

    AC-7000 User guide If you select the [Terminal information] -> [Log] in the main menu, the following window appears. ▶Log information Log: The number of logs saved in the terminal Image Log: The number of image logs saved in the terminal.

  • Page 66: Sd Card

    AC-7000 User guide 3.10. SD card If you select the [SD card] at the main menu, the following screen appears. <When the SDcard was inserted> < When the SDcard was not inserted > ※ It works only if the SDcard is inserted, and it should be inserted with the back side face forward like the figure.
  • Page 67 AC-7000 User guide It is the function used for data backup of the terminal by [Export], and you can copy the backup data from the [Export] into the terminal again. ▶Export It copies the data from the terminal to the external SDcard. -User data: It copies the user DB to the „AC7000/db‟...

  • Page 68: User File Download

    AC-7000 User guide changing the file name to the user voice sound. -F/W upgrade: It upgrades the firmware from the SDcard. (The firmware should be in the „AC7000‟ folder of the SDcard.) If you want to finish working and move to the upper menu, click the [OK] or [BACK] button.
  • Page 69 AC-7000 User guide If you select „Sound file in success (.wav)‟ as the file type and click „Send‟ button after selecting the sound file (.wav or mp3), the terminal selecting window appears. If you select the terminal in the terminal list window and click the „Send‟ button again, the file is sended and the result of download appears.

  • Page 70: How To Use Terminal

    AC-7000 User guide 4. How to use terminal The background image and composition of the basic window can be changed according to the administrator‟s setting. In addition, if the administrator set the screen saver time, the LCD screen is turned off automatically if there is no action for set time, and when the user accessed to the terminal, tried the authorization with fingerprint/card, or touched the main screen, the LCD screen is turned on automatically.

  • Page 71: Authorization

    AC-7000 User guide Enter the user ID to be certified and click [OK] button, then the input screen of fingerprint, face, card, or password according to the authorization method of the user. <Fig. 4-2> 4.3. Authorization 4.3.1. Face authorization ▶1:N Authorization Set the location of your face at the LCD guideline until the guideline is changed green, and gaze the camera and stop moving to try authorization.

  • Page 72: Fingerprint Authorization

    AC-7000 User guide   4.3.2. Fingerprint authorization ▶1: N Authorization If you put your fingerprint at the fingerprint sensor at the basic window, the fingerprint is entered with the light on the sensor. Do not take off your finger until the light of the sensor turns off completely.

  • Page 73: Card Authorization

    AC-7000 User guide   4.3.3. Card authorization Put the card on the card picture in <Fig. 4-1) 4.3.4. Password authorization Input your ID by clicking [ID input] button as follows and input password when the password input window appears. ...
  • Page 74 AC-7000 User guide 4.3.5. Multi authentication For user who needs to authenticate via more than 2 methods such as –card & fingerprint OR card & fingerprint & face, The preferential precedence of the authentication after the ID is typed is as follows: cardfingerprintfacepassword It activates even face or fingerprint authenticates first...
