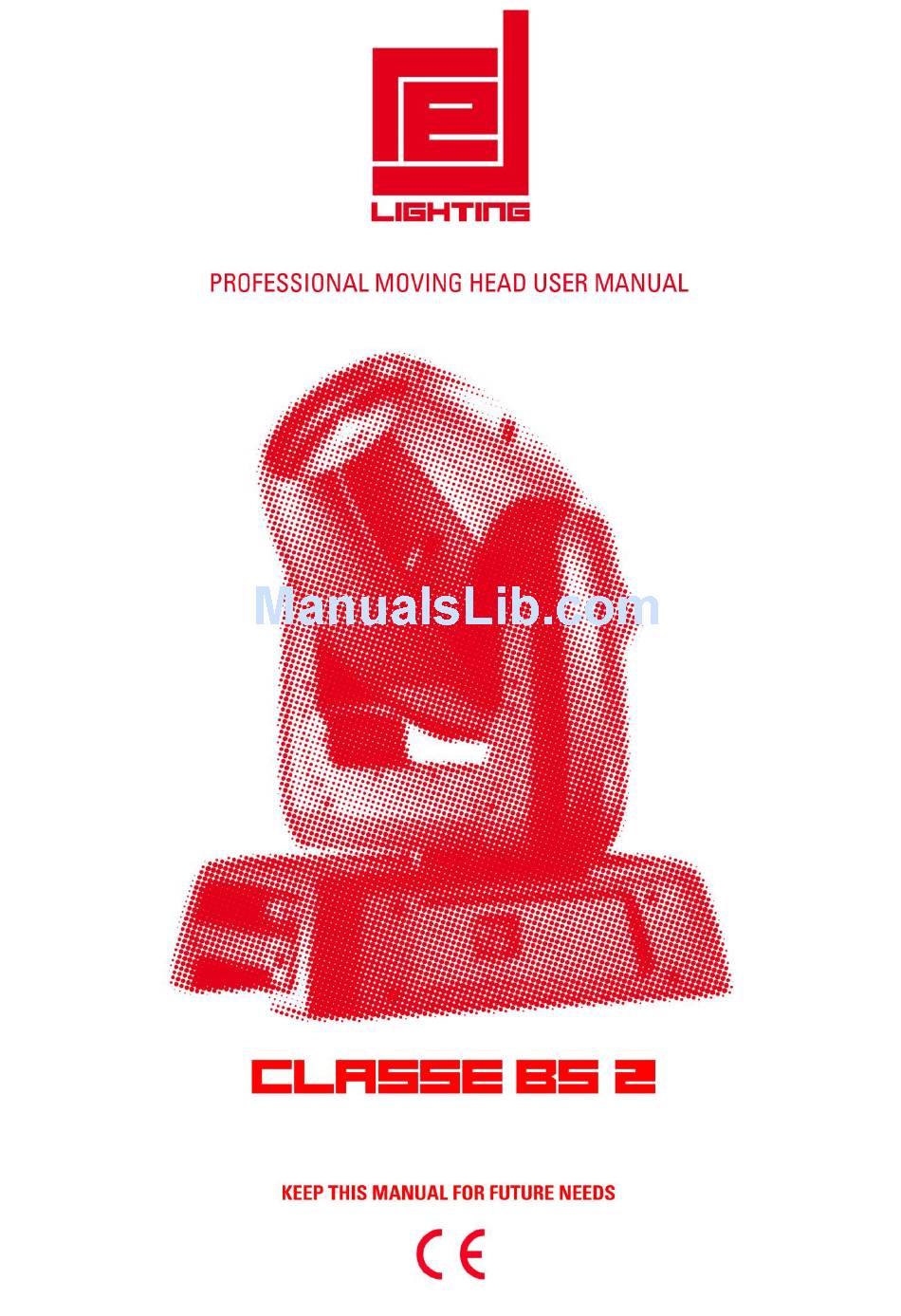

red lighting Classe BS 2 User Manual

Professional moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classe BS 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for red lighting Classe BS 2

  • Page 2: Table Of Contents

    Contents 1. FEATURES ..............................2 2. FIXTURE OVERVIEW ..........................3 3. SAFETY INSTRUCTIONS ..........................3 3.1) Important safety warns ........................3 3.2) GENERAL GUIDELINES ........................4 4. INSTALLATION INSTRUCTIONS ......................5 4.1) Installing or replacing the lamp ......................5 4.2) Mounting the device ..........................6 5.

  • Page 3: Features

    Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.

  • Page 4: Fixture Overview

    ·Wireless receiver pre-installed ·Rechargeable Back up Battery for Display, no need external power supply, enable users to enter display menu for address setting or access other functions setting. ·Auto-program: 7 pre-built programs can be selected. ·Software-upload by optional accessory via DMX line 2.

  • Page 5: General Guidelines

    If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. If protection screen,lens or ultraviolet screen in the fixture is apparently damaged or is damaged to exceed their own effective degree, such as cracked and gashed, it must be replaced.

  • Page 6: Installation Instructions

    While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum distance between light-output from the projector and the illuminated surface must be more than 8 meter.

  • Page 7: Mounting The Device

    After 2300 hours the fixture will no longer respond to DMX commands and immediately enter a hibernation mode that will electronically discontinue all fixture functionality with the exception of a few menu commands. The fixture will continue to enter hibernation mode until the lamp is replaced and the lamp clock has been reset. Before replacing the lamp let the lamp cool down, because during operation, the lamp can reach very high temperature.
  • Page 8 The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety rope.

  • Page 9: Dimensional Drawings

    a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket. b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.

  • Page 10: Dmx-512 Control Connection

    Layout Drawings: Mounting points Be sure this fixture is kept at least 8m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 11: Dmx-512 Connection With Dmx Terminator

    Address 1 Address 14 Address 27 6. DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.

  • Page 12: Operting Instructions Of The Internal Dmx Wireless System

    If you set a different address, each unit will start to “listen” to the channel number you have set, based on the quantity of control channels of the unit. That means changing the settings of one channel will affect only the selected fixture. In the case of the move head, which is a 13 channel fixture, you should set the starting address of the first unit to 1, the second unit to 14 (13 + 1), the third to 27 (13 + 14), and so on.

  • Page 13: Control Board

    5．Remove the receivers from transmitter (T1) and to log in to another transmitter (T2) Case 1: Remove a receiver: a) On the control board of the fixture, enter menu to activated the function of REST; b) The LED for wireless on the fixture should turn to Solid red; the receiver can log out from the transmitter (T1);...
  • Page 14 Time Information Current Time XXXX(Hours) Power on running time Total Run Time XXXX(Hours) Fixture running time Last Run Time XXXX(Hours) Fixture Last times clear Lamp Hours XXXX(Hours) Lamp running time Lamp Off Time XXXX(Minute) Lamp off time LastRun Password Password=XXX Timer Password 038 Clean Last Run ON/OFF...

  • Page 15: Function

    PAN …… Test Channel Test function Manual Control PAN =XXX Fine adjustment of the lamp Password “050” Calibration Calibrate Password Color wheel=XXX Calbrate and adjust the effects to standard/right position User Mode Standard Mode User’s mode to change Basic Mode channel numbers Extended Mode User Mode A...

  • Page 16: Slave Mode

    9.1.3 Slave Mode With this function, you can define the device as slave. 1．Access the main menu. 2．Tap the <Up/Down>button until“Slave Mode”is displayed. 3．Press ENTER, the display will show “Slave Mode”. 4．Tap the <Up/Down>button，the display will show “Slave1”, ”Slave2”, ”Slave3”. 5．Press ENTER to confirm or press <MODE/ESC>...
  • Page 17 Press ENTER, the display will show “Time Information”. 2．Press <Up/Down>, the display will show “Total run Time”. 3．Press< ENTER>, the display will show “Total run Time”. 4．The display will show “XXXX” (Hours) ； 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Last Run Time With this function, you can display last the running time of the lamp.

  • Page 18: Temperature Info

    Press ENTER, the display will show “Time Information”. 2．Press <Up/Down>, the display will show “Last Run Password”. 3．Press< ENTER>, the display will show “Last Run Password”, the time password is 038. 4．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Clear Last Run With this function, you can clear last run time of the fixture.

  • Page 19: Software Version

    1．Tap <MODE/ESC>button ， access the main menu ， Tap the <Up/Down>button until “Information”is displayed. Press ENTER, the display will show “Information”. Tap the <Up/Down>button until“Temperature Info”is displayed. Press ENTER, the display will show “Temperature Info”. 2．Press <Up/Down>, the display will show “Head Temperature”. 3．Press<...

  • Page 20: Lamp On Via External Controller

    Tap the <Up/Down>button until the display will show “Automatic On” . Press ENTER, the display will show “Automatic On”. 2．Press <Up/Down>, the display will show “OFF”or“ON”. 3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.3.3 Lamp on via external controller With this function you can select if you can switch the lamp on via an external controller (DMX-channel of internal programs, value 64-79).

  • Page 21: Personality

    When the temperature around the lamp is higher than the preset value continuously up to 5 minutes, the lamp will be shut off automatically. If the lamp be shut off automatically due to over heat, it can not be striked again automatically, it must be turned on again by manually.
  • Page 22 2．Press <Up/Down>, the display will show “Tilt Reverse”. 3．Press< ENTER>, the display will show “Tilt Reverse”. 4．The display show “OFF”,Press <Up/Down>, the display will show “ON”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Pan Degree With this function, you can select pan degree for 630 or 540.

  • Page 23: Service Setting

    3．Press< ENTER>, the display will show “Mic Sensitivity”. 4．The display show “70%”,Press <Up/Down>, the display will show “0~99%”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Hibernation ——Standby mode The lamp and step motors will be power off if the fixture stay without DMX signal for 15 mins (Factory default).And the fixture will be reset before working once it receive DMX signal again.

  • Page 24: Temperature C/F

    Display Reverse With this function you can rotate the display by 180°. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality” is displayed. Press ENTER, the display will show “Personality” . Tap the <Up/Down>button until the display will show “Display Setting”. Press ENTER, the display will show “Display Setting”.

  • Page 25: Reset Default

    2．Press <Up/Down>, the display will show “Wireless DMX”. 3．Press< ENTER>, the display will show “Wireless DMX”. 4．The display show “Activate WDMX”, Press <Up/Down>, the display will show “WDMX Off”, “Act & Data Out” or “Clean WDMX Memo”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.4.8 Reset Default With this function, you can select restore factory set for ON or OFF, the default is OFF.

  • Page 26: Calibration

    9.6.3 Calibration With this function, you can calibrate and adjust the effect wheels to their correct positions. The password of calibrate values is 050. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “ Effect Adjust”is displayed. Press ENTER, the display will show “Effect Adjust”. 2．Press <Up/Down>, the display will show “Calibration”.
  • Page 27 Excursion: A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop.
  • Page 28 4. Program selection for Edit Program • Select “Edit program” by turning the encoder. • Press the Enter button to confirm. • Select “Edit program” by turning the encoder. • Press the Enter button to confirm. • Turn the encoder to select the desired program. With this function you can edit specific scenes into a specific program.

  • Page 29: Instructions On Use

    10. INSTRUCTIONS ON USE: DMX channel´s functions and their values (16 DMX channels): Mode/Channel Value Function Color Wheel : Open / white 10-19 Color 1 20-29 Color 2 30-39 Color 3 40-49 Color 4 50-59 Color 5 60-69 Color 6 70-79 Color 7 80-89...
  • Page 30 Rotating gobo index, rotating gobo rotation : 0-127 Gobo indexing 128-189 Forwards gobo rotation from fast to slow 190-193 No rotation 194-255 Backwards gobo rotation from slow to fast Rotating gobo indexing Fine 0-255 Fine indexing Speed Pan/Tilt movement: 0-225 max to min speed 226-235 blackout by movement...
  • Page 31 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) Dimmer intensity: 0-255 Intensity 0 to 100% Fine Dimmer intensity: 0-255 Dimmer intensity fine Frost: 0-127 Disable frost 128-255 Enable frost Lamp on/off, reset, internal programs: 0-19 colour change normal 20-29...

  • Page 32: Error Message

    11. ERROR MESSAGE When you turn on the fixture, it will make a reset at first. The display may show“Err channel is XX” while there are problems with one or more channels. “XX” stands for channel 1, 2, 3, 4, 5, 6 who has the testing sensor for positioning.

  • Page 33: Cleaning And Maintenance

    12. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2) There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
