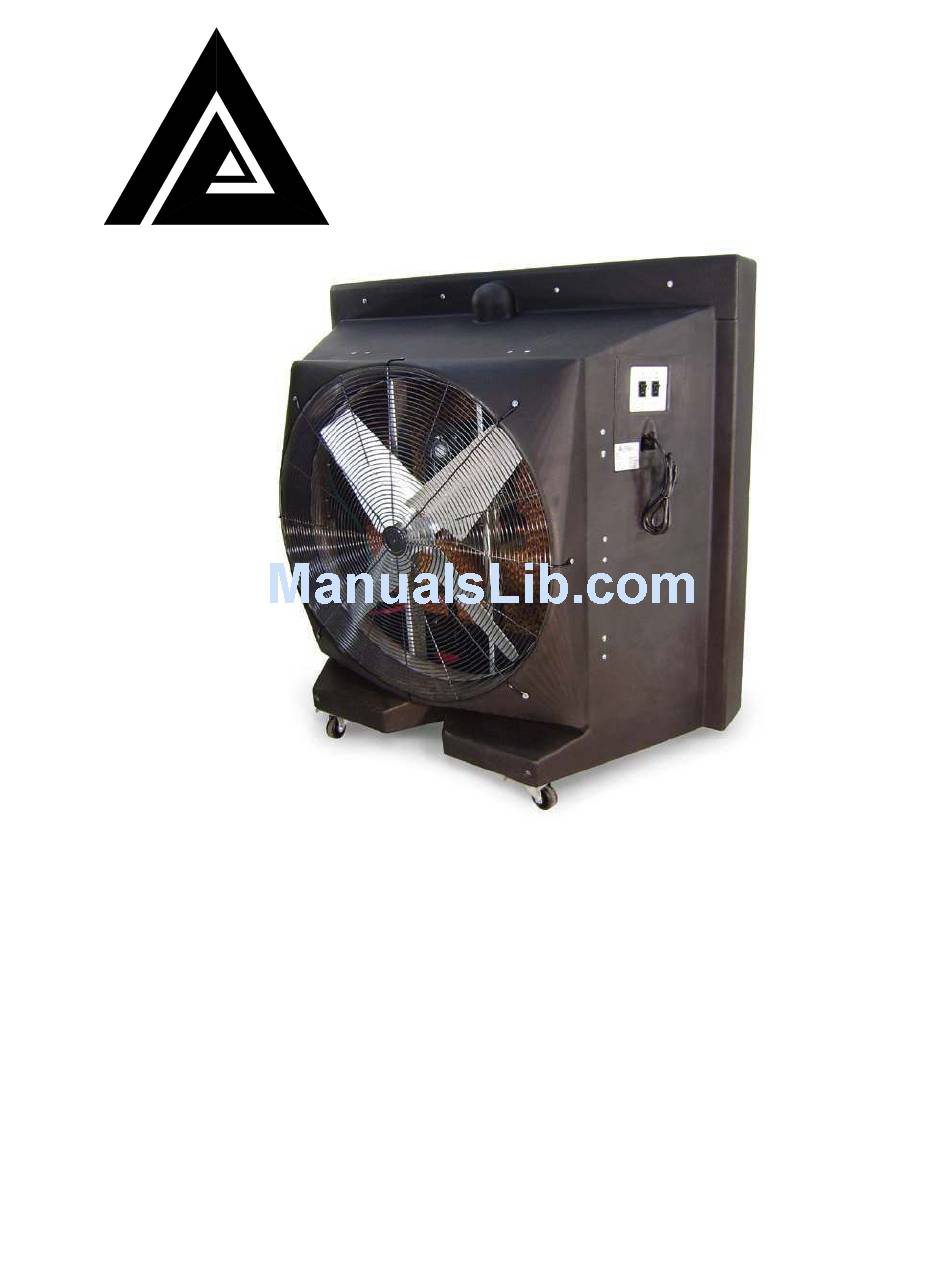

OPERATION AND INSTRUCTION MANUAL
AquaCool Evaporative Cooler
Model AQ3613
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT: READ INSTRUCTIONS CAREFULLY BEFORE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaCool AQ3613 and is the answer not in the manual?

Questions and answers

Summary of Contents for Triangle Engineering of Arkansas AquaCool AQ3613

  • Page 1 Triangle Engineering of Arkansas, Inc. 1101 North Redmond Rd. Jacksonville , AR 72076 501-982-7558 fax 501-982-5691 trianglefans.com OPERATION AND INSTRUCTION MANUAL AquaCool Evaporative Cooler Model AQ3613 READ AND SAVE THESE INSTRUCTIONS IMPORTANT: READ INSTRUCTIONS CAREFULLY BEFORE...

  • Page 2: General Safety Information

    ATTEMPTING TO INSTALL, OPERATE OR SERVICE THIS FAN. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: There is a risk of fire, electric shock, or injury to persons. GENERAL SAFETY INFORMATION 1.
  • Page 3 Assembly instructions Remove pallet straps. Remove metal guard located above evaporative cooling pads. Remove center cooling pad by gently pulling pad out- ward. Additional pads may be removed to allow more access to inside of fan. Check pump for upright position. Check spray bar and splash guard for proper alignment.

  • Page 4: Operating Procedures

    OPERATING PROCEDURES 1. Connect standard size water hose to water supply. 2. Connect water hose to 3/4 inch adaptor on unit and allow reservoir to fill to capacity. Water flow will automatically shut off at proper level. 3. Align splash guard (curved semicircular pipe located above spray bar). 4.
  • Page 5 Cooling pads for this evaporative unit are cross-fluted with an intake and discharge side. They are directional, and are clearly marked with arrows to show proper vertical and horizontal installation. When removing pads for maintenance, such as cleaning the interior of unit, always: 1.
  • Page 6 Completely dry pads daily to curb algae growth. Clean and flush sump on a regular basis - at least 1- 2 times per week of heavy use. PAD INSTALLATION In order to get the best performance from your cooling pads, they must be installed properly.
