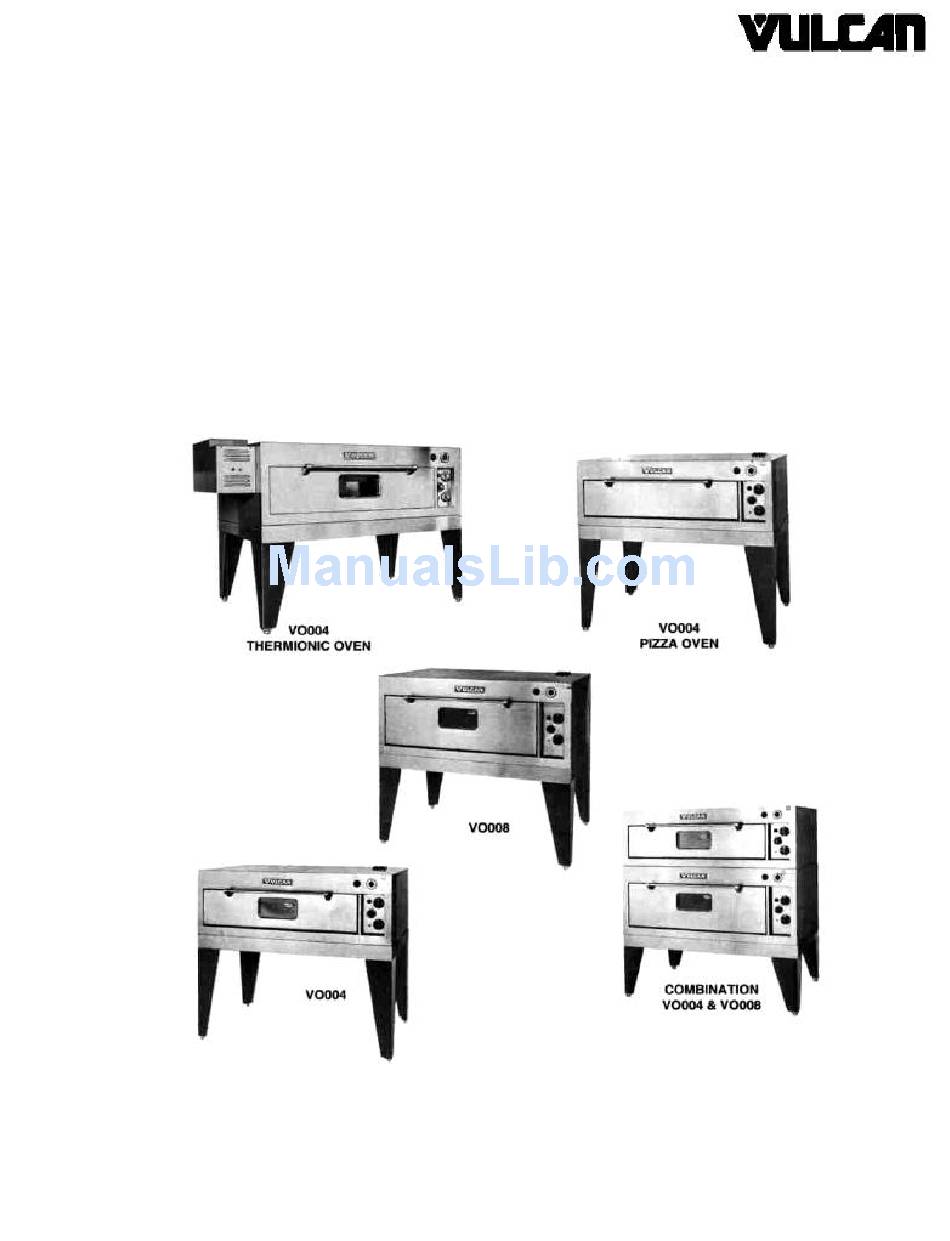

- Page 1 SERVICE AND PARTS MANUAL FOR ELECTRIC BAKE AND ROAST OVENS MODELS V0004 & V0008 VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. (502) 778-2791 FORM 30741 (9-92) (Formerly 112637)
- Page 2 SERVICE AND PARTS MANUAL ELECTRIC BAKE & ROAST OVENS MODELS V0004 & V0008 INDEX PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE Your Vulcan oven is produced with quality The manufacturer suggests that you thoroughly read this entire manual and carefully follow all of the instructions workmanship and material.
-
Page 3: Troubleshooting
TROUBLESHOOTING The following is a guide for troubleshooting procedures and In the following table, the voltmeter is used to measure the covers some of the more common problems that may voltage between two phases on 208, 240 and 480 volts, and develop. - Page 4 PROBLEM CORRECTIVE ACTION Heat in top section only. Follow the same procedure for the bottom 3 -heat switch as outlined in HEAT IN BOTTOM SECTION ONLY above. Oven temperature not Recalibrate the thermostat, following the instructions in RECALIBRATING ELECTRIC CONTROLS in this manual. No oven lights (all models Since the two 25 watt, 120 volt bulbs are connected in series to the 208-240 except pizza oven).
-
Page 5: Calibrating Electric Controls
CALIBRATING ELECTRIC CONTROLS Robertshaw electric thermostats are adjusted at the factory 4. After the control has cycled thermostatically three or more and calibrated on precision instruments to control times, note the oven temperature when the electric unit temperatures accurately. Adjustment or recalibration is not snaps off, and the oven temperature when it snaps on. -
Page 6: Parts Description And Replacement
PARTS DESCRIPTION AND REPLACEMENT WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE SERVICING. Reconnect the leads to the replaced component exactly as to the original (refer to the wiring diagrams for each model). SWITCH PANEL Thermostat A DPST cycling switch, with its normally closed contacts, provides power to the two non-cycling 3-heat switches, which, in turn, turns on the heating elements. - Page 7 To replace bulbs, remove the four screws mounting the 2. 480 Volt Model window assembly to the oven wall. Remove the breaker closure in order to reach NOTE: Make sure that the bulb is 25 watt and the the components. gasket is in good condition.
-
Page 8: Replacement Parts List
REPLACEMENT PARTS LIST REPLACEMENT PARTS ORDERING The following information must accompany a replacements parts order or it cannot be filled. A. Model and style or serial number. B. Type of gas (natural or propane). C. Voltage and phase. D. Appliance finish, permafinish, stainless steel, etc. (if applicable to part to be replaced). Use rating plate located on the front frame flange below the control panel to help you obtain the information listed above. - Page 9 CONTROL AND SWITCH PANEL ASSEMBLY — 460 VOLT USED ON ALL V0004 & V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Thermostat (Except Pizza Models) * 415119-G2 Thermostat (Pizza Models Only) * 415119-G3 Thermostat Knob (Except Pizza Models) 500°F 415119-4 Thermostat Knob (Pizza Models Only) 700°F 415119-3...
- Page 10 CONTROL AND SWITCH PANEL ASSEMBLY — 208 OR 240 VOLT USED ON ALL V0004 AND V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Thermostat (Except Pizza Models) 415119-G2 Thermostat (Pizza Models Only) 415119-G3 Thermostat Knob (Except Pizza Models) 550°F 415119-4 Thermostat Knob (Pizza Models Only) 700°F 415119-5...
- Page 11 BLOWER MOTOR AND COVER DOOR ASSEMBLY USED ON V0004 & V0008 THERMIONIC SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Toggle Switch with Hardware 417812-1 Motor Assembly (115 & 480 Volt, 60 Cy.) 413048-2 156A Motor Assembly (240 Volt, 60 Cy.) 413048-1 156B Motor Assembly (220 Volt, 50 Cy.)
- Page 12 LAMP BOX ASSEMBLY USED ON ALL V0004 AND V0008 SERIES EXCEPT PIZZA OVENS ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Lamp Window Assembly 411175-G1 Lamp Box Gasket 411206-1 Frosted Bulb (25 Watt) BL-003-08 Lamp Box 420272 Lamp Socket 417814-1 Lamp Cover Assembly 420269 *Effective on models constructed after 4/73.
- Page 14 DOOR MECHANISM ASSEMBLY AND OVEN DECK ASSEMBLY SINGLE AND MULTIPLE UNITS USED ON ALL V0004 AND V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Crank Support Assembly 408895-G1 Spacer (3/4" Pipe x 7/16" Long) 409240-2 Bearing 404629-1 Crank Support 408896-1 1/2-13 Hex Head Shoulder Bolt (2"...
- Page 15 TOP ELEMENT ASSEMBLY USED ON ALL V0004 AND V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Top Element Assembly (208 Volt) 412656-G1 Top Element Assembly (240 Volt) 412656-G2 Top Element Assembly (480 Volt) 412656-G3 Element Frame Assembly 420437 Outer Top Element (208 Volt) **•...
- Page 16 BOTTOM ELEMENT ASSEMBLY USED ON ALL V0004 AND V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Bottom Element Assembly (208 Volt) 412657-G1 Bottom Element Assembly (240 Volt) 412657-G2 Bottom Element Assembly (480 Volt) 412657-G3 Element Frame Assembly 420445 Outer Bottom Element (208 Volt) 410743-3 Outer Bottom Element (240 Volt)
- Page 17 CONNECTION BLOCK ASSEMBLY - BOTTOM SECTION - 208 OR 240 VOLTS USED ON ALL V0004 AND V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Terminal Block 410472-8 Porcelain Block (Except Pizza Ovens) 414881-1 Breaker Support 412042-1 Breaker Cover (V0004 Series) 412043-1 Breaker Cover (V0008 Series) 412043-2...
- Page 18 CONNECTION BLOCK ASSEMBLY - UPPER SECTION - 208 OR 240 VOLTS USED ON ALL V0004 AND V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Terminal Block 410472-8 Porcelain Block (Except Pizza Ovens) 414881-1 Breaker Support 412042-1 Breaker Cover (V0004 Series) 412043-1 Breaker Cover (V0008 Series) 412043-2...
- Page 19 CONNECTION BLOCK ASSEMBLY - UPPER SECTIONS - 460 VOLT USED ON ALL V0004 AND V0008 SERIES (AND BOTTOM SECTION V0004 PIZZA OVEN WITHOUT THERMIONIC FEATURE) ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Terminal Block 410472-8 Porcelain Block (Except Pizza Ovens) 414881-1 Breaker Support 412042-1...
- Page 20 CONNECTION BLOCK ASSEMBLY - BOTTOM OR SINGLE SECTION - 460 VOLT *USED ON ALL V0004 AND V0008 SERIES WITH OR WITHOUT THERMIONIC FEATURE ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Terminal Block 410472-8 Porcelain Block 414881-1 Breaker Support 412042-1 Breaker Cover (V0004 Series) 412043-1 Breaker Cover (V0008 Series)
- Page 21 DAMPER ROD ASSEMBLY USED ON ALL V0004 AND V0008 SERIES ITEM PART QUANTITY NUMBER DESCRIPTION NUMBER PER SECTION Upper Damper Control Rod Assembly 407585-G1 Control Rod Assembly 407586-G1 Damper Assembly 407548-G1 Damper Clamp 407550-1 Support Bracket 407590-1 Damper Crank Connecting Link 407591-1 Knob Assembly 407545-1...
