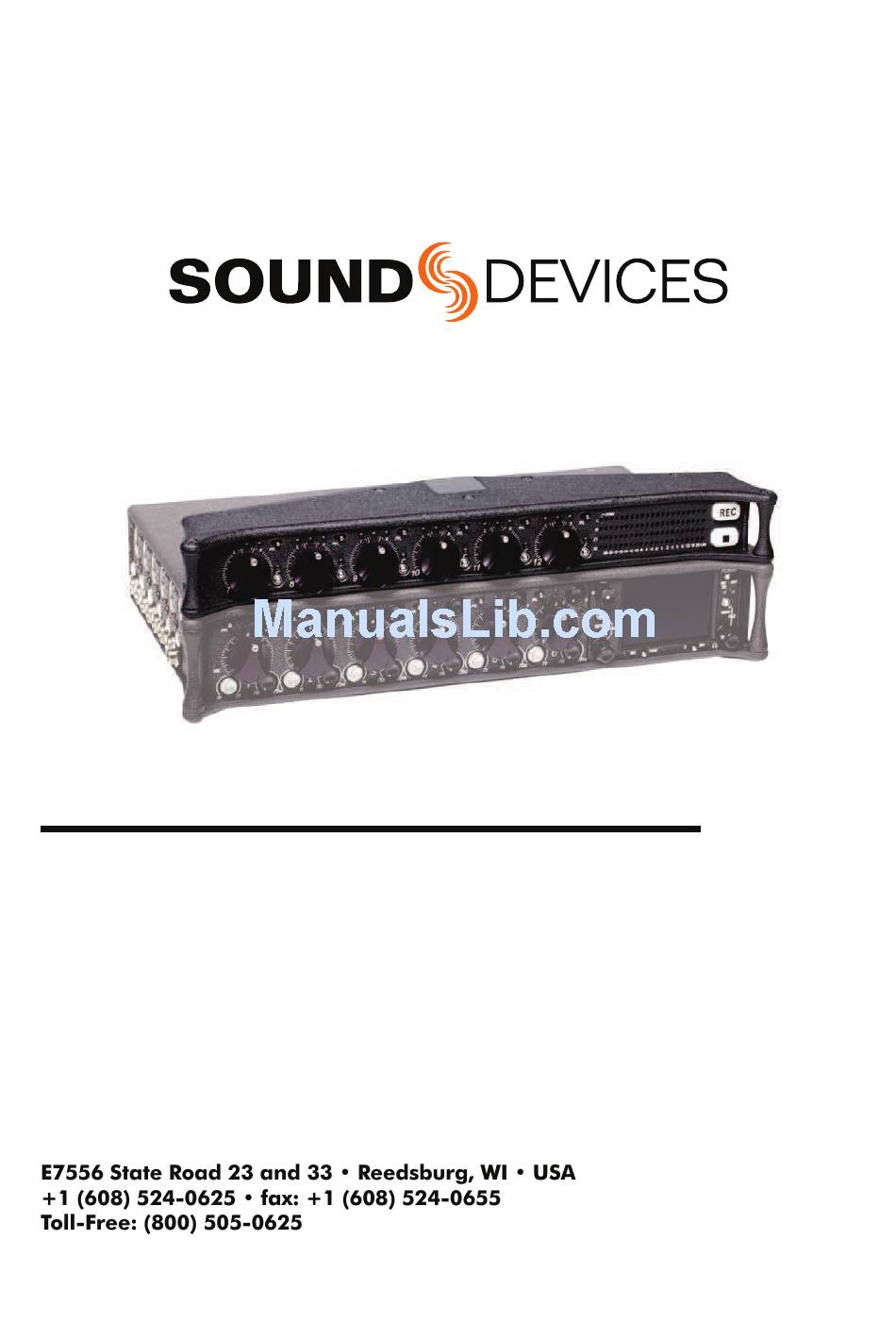

- Page 1 CL-6 Controller User Guide and Technical Information Sound Devices, LLC www.sounddevices.com support@sounddevices.com...
- Page 2 Using a Philip’s head screwdriver, remove the rear screw on the 664 that corresponds with the screw removed in step 3. The CL-6 can be mounted upside down. Ensure that the screw removed in this step corresponds to the desired orientation. This screw will not be used with the CL-6/664 assembly.
-
Page 3: Front Panel Description
664 User Guide and Technical Information Left Screw Multi-pin Header (Covered) Right Screw Rear screws ar s Multi-pin Header (Exposed) Front Panel Description Input Fader Input LED Indicates input signal activity. Illuminates in various colors and intensities to show signal Highpass Filter Button Push to toggle activation of Highpass Filter on the Input. -
Page 4: Operation
664 User Guide and Technical Information Slide the switch left to activate, and again to deactivate. For momentary action, hold the are removed from the LCD, which instead dis- switch left for one second or longer. The Input Record Button Control on the 664 operates normally when the input-to-output bus routing is performed. -
Page 5: High Pass Filter
664 User Guide and Technical Information Direct Outputs 1-6 line-level inputs. It is possible to switch each connection independently back to a direct output for its Screen. Press the Headphone Encoder and turn it to select the DIR OUT option. Bus Tracks (L, R, X1, and X2) Quick L and R Track routing slide the Input Select Switch left for Track L or right for Track R. - Page 6 Manufacturer’s Address: E7556 State Rd. 23 and 33 Reedsburg, WI 53959 Declares under sole responsibility that the product as delivered Product Name: CL-6 Input Expander Model Number: CL-6 Product Options: This declaration covers all options of the above products complies with the essential requirements of the following applicable European Directives, and carries the CE marking...
- Page 7 664 User Guide and Technical Information Sound Devices, LLC warrants the CL-6 against defects in materials and workmanship for a period of only to the original purchaser. Sound Devices, LLC will repair or replace the product at its discretion at no charge. Warranty claims due to severe service conditions will be addressed on an individual For all service, including warranty repair, please contact Sound Devices for an RMA number may experience delays in repair.
- Page 8 CL-6 Rev. 1.02...
