Watec WAT-231S2 Operation Manual

Color CCD Camera
WAT-231S2
Operation Manual
This Operation Manual covers safety, camera functions, installation and the
correct operating procedure for the WAT-231S2. First, we ask you to read
this Operation Manual thoroughly, then install and operate the WAT-231S2
as advised. In addition, for future reference, we also advise safekeeping of
this manual.
Please contact the distributor or dealer from which the WAT-231S2 was
purchased, if you do not understand the installation, operation or safety
instructions laid out in this manual. Not understanding the contents of the
Operation Manual sufficiently may cause damage to the camera.
Guide to the Safety Symbols
The definitions of the symbols used in this operation manual are:
When you do not adhere to or take notice of the "Danger" sign, it
Danger may lead to a serious accident such as death or injury caused by
fire or electric shock.
When you do not adhere to or take notice of the "Warning" sign,
Warning
it may cause severe damage such as a physical injury.
When you do not adhere to or take notice of the "Caution" sign, it
may incur injury and cause damage to peripheral objects in the
Caution
immediate surroundings.
Cautions for Safety
The WAT-231S2 is designed to be used safely; however, it may lead to a
physical accident caused by fire and electric shock if not used correctly.
Therefore, please keep and read the "Cautions for safety" below for
protection against accidents.
Do not disassemble and/or modify the WAT-231S2.
•
Danger
Do not operate the WAT-231S2 with wet hands.
•
Use a stabilized power adaptor designed for DC+12V± ± ± ±
•
Warning
10%, with a current capacity of more than 250mA for the
WAT-902H2/3 SUPREME.
The recommended voltage is DC+12V±10%
Do not expose the WAT-231S2 to wetness or high moisture
•
conditions.
The WAT-231S2 is designed and approved for indoor use only.
The WAT-231S2 is not water-resistant or waterproof. If the
location of the camera is outdoors or in an outdoor like
environment, we recommend that you use an outdoor camera
housing.
Protect the WAT-231S2 from condensation.
•
Keep the WAT-231S2 dry at all times during storage and
operation.
Should the camera not work properly, switch off the power
•
immediately. Then check the camera according to the
"Problems and Trouble shooting" section.
Avoid the striking of hard objects or dropping the WAT-
•
Caution
231S2.
The WAT-231S2 uses high quality electrical parts and precision
components.
Do not connect any power supply directly to the video out
•
terminal of the unit.
Do not connect the WAT-231S2 with any monitor using a
video/power single transmission terminal. The WAT-231S2 is
not designed for use with this type of equipment. We also
advise you to read the operation manual of the monitor you
plan to use before any connections are made.
Do not install the WAT-231S2 in a position subject to direct
•
sunlight.
Sunlight shinning directly onto the WAT-231S2 lens can cause
damage to the CCD.
Select a stable place for installation of the WAT-231S2.
•
Use a support of durable strength around an installation
position on a ceiling or wall when a camera stand or tripod is
used.
Do not move the WAT-231S2 with the cables connected.
•
Before moving the WAT-231S2, always remove the video
cable and power cable from the rear of the camera first.
Avoid using the WAT-231S2 near any strong electro-
•
magnetic field.
After installing into main equipment, if the WAT-231S2 is
exposed to electromagnetic waves causing the monitored
image to become distorted, we recommend the camera be
shielded by appropriate protective casing.
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-231S2,
An optimal picture cannot be obtained, after checking that all the cables
•
and connections are correctly in place
Smoke or any unusual odor emerges from the WAT-231S2.
•
An object becomes embedded or a quantity of liquid seeps into the camera
•
housing
More than the recommended voltage or/and amperage has been applied
•
to the WAT-231S2 by mistake
Anything unusual occurring to any equipment connected to the
•
WAT-231S2.
Disconnect the camera immediately according to the following procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-231S2.
③Contact the distributor or dealer from which the WAT-231S2 was
purchased.
About EMC
The WAT-231S2 is in conformity with EMC test standards carried out by
authorized organizations in Japan.
NTSC FCC Part15 class B
P A L EN61000-6-3/EN50130-4
Do not modify the WAT-231S2. A modified camera may not
Danger
conform to EMC test standards.

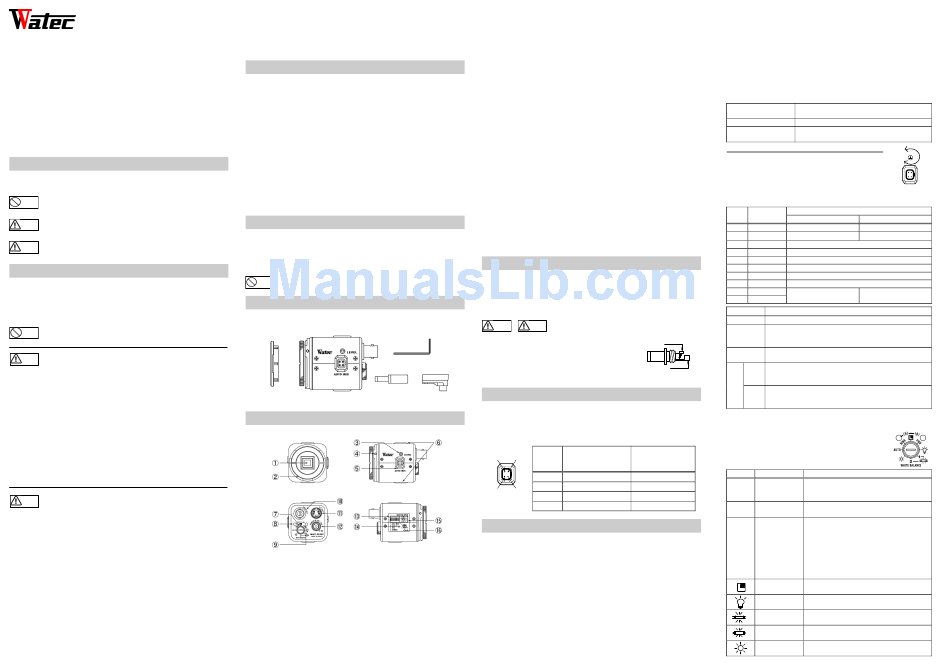

Contents
Using the contents figures below, check to make sure all parts are present
before use.
Hex. wrench
Lens Mount Cap WAT-231S2 DC Plug Iris Connector
Description of Parts
①CCD FRONT FACE
・ ・ ・ ・ The light receiving face of the CCD camera
(Dirt, water or oil deposits on the CCD will cause an unclear picture on the
monitor. Attach the lens cap to protect the lens and CCD from
contamination and damage.)
②LENS MOUNT
・ ・ ・ ・ Mount for the lens (Thread type)
③IRIS LEVEL VOLUME
・By controlling the volume, the iris level of a DC iris lens can be adjusted.
④FOCUSING ADJUSTMENT SCREWS
・There are 3 hex. adjustment screws each placed at intervals of 120゜for
fine focusing of the lens.
⑤AUTO-IRIS SOCKET
・ ・ ・ ・ This socket is for a video or DC auto-iris lens cable connector.
(Video/DC: Auto selected by the camera)
⑥TRIPOD MOUNTING SCREW HOLES
・ ・ ・ ・ Mounting holes for stands. The size of these threads are 1/4", 20 threads,
4.5±0.2mm, which is the same as any standard camera tripod (U1/4").
⑦WHITE BALANCE MODE SELECTOR
・ ・ ・ ・ The selector for the white balance mode.
⑧PUSH BUTTON (R) (MWB mode)
・ ・ ・ ・ The button for adjustment of the white balance to increase the red hue of a
monitored image using M.W.B mode.
⑨PUSH BUTTON (B) (MWB mode)
・ ・ ・ ・ The button for adjustment of the white balance to increase the blue hue of
a monitored image using MWB mode.
⑩VIDEO OUT (BNC)
・ ・ ・ ・ The terminal for composite video signal output
⑪Y/C OUT
・ ・ ・ ・ The terminal for Y/C signal output
⑫POWER IN
・ ・ ・ ・ The terminal designed for the DC-plug of the power adaptor
⑬FUNCTION SWITCHES
・ ・ ・ ・ Functional switches for setting AGC, BLC and gamma control.
⑭MGC VOLUME ADJUSTING
・ ・ ・ ・ The volume for setting manual gain control
⑮AE MODE CONTROL
・ ・ ・ ・ The switch for the electronic shutter mode control according to the object
being monitored.
⑯WHITE BLEMISH CORRECTION BUTTON
・ ・ ・ ・ The button for correction of white blemish.
Power Supply
Use a stabilized power adaptor designed for DC+12V±10%, with a current
capacity of more than 250mA.
Use the optional DC plug if the shape or polarity of the DC plug of the power
adaptor to be used is not compatible with the camera (See the drawing on
the right below).
Warning Caution
The wiring on the connector must be exact.
Be careful no to touch the other terminal while wiring.
Protect the wiring portion by using insulation tape
after wiring. If the above care and attention is not
adhered to, damage to the WAT-231S2 and power
COMMON(GND)
adaptor may occur and may also cause fire.
Auto-iris Lens
Before connecting the auto-iris lens, please make sure that the pin
configuration is correct by checking with the following table. If the
configuration of your iris connector is different from the following, the plug
and pins will need to be rewired.
EIAJ Video EIAJ DC
④ ②
Pin No. Auto-iris Lens Auto-iris Lens
Arrangement Arrangement
① Control －
Power
② Control ＋
Not used
③
①
③ Iris signals Drive ＋
④ Drive －
Common (GND)
Set-up and Operation
1) Ensure that the power to the WAT-231S2 and the peripheral equipment is
turned off before making any connections.
2) Remove the lens mount cap from the WAT-231S2 and attach the
CS-mount lens. Use the optional C-mount adaptor (34CMA-R) when a
C-mount lens is used.
3) Connect the iris control cable to ⑤AUTO-IRIS SOCKET on the WAT-
231S2 when an auto-iris lens is being used.
4) Connect ⑩VIDEO OUT on the WAT-231S2 with the monitor, using a
coaxial cable with 75Ω impedance, such as an RG-58/U or an RG-6/U.
If the monitor has an S-terminal, high resolution imaging is possible by
connecting with ⑪Y/C OUT.
※The ⑪Y/C OUT can be used together with the ⑩VIDEO OUT.
※Select a monitor with the same television system as the WAT-231S2
NTSC or PAL. A monitor with more than 600TV lines is recommended.
i
5) Insert the power plug of the power adaptor to ⑫POWER IN on the back
panel of the WAT-231S2. Confirm that the power adaptor is not
connected to the power supply before insertion of the power plug into
⑫POWER IN.
6) Turn on the power to the WAT-231S2, monitor and all other allied
equipment. When a picture cannot be obtained on the monitor, or a
problem occurs, check and follow the procedure mentioned in the
【Problems and Trouble Shooting】section.
7) After following the procedure below and the picture is still out of focus,
open the iris fully and loosen ④FOCUSING ADJUSTMENT SCREWS
with the hex. wrench and move the lens forwards until a clear picture is
obtained.
Adjust the focus and iris to the best position
Manual Lens
on the lens.
Video Auto-iris Lens Adjust the focus on the lens.
Adjust the iris level on the camera, then
DC Auto-iris Lens
adjust the focus on the lens. See below.
Iris Level Adjustment (for DC auto-iris lenses only)
Adjust ③IRIS LEVEL VOLUME placed on the side
of the unit until an acceptable light level is attained.
No change will occur if a video iris lens or manual
iris lens is fitted.
8) Select any required shutter speed by the ⑮AE MODE CONTROL to one
of its 10 positions. (Shutter mode is set to 8 upon shipment)
Shutter Speeds (Sec.)
No. Mode
NTSC
0 OFF 1/60
1 FL 1/100
2 ES
3 ES
4 ES
5 ES
6 ES
7 ES
8 EI: OFF
1/60-1/100000
9 EI: FL
AE Mode Effect
OFF Fixes the shutter speed to NTSC: 1/60, PAL: 1/50.
Reduces the flickering phenomena occurring on the
FL monitor screen caused by fluorescent or mercury
DC+12V
lamps.
Fixes the shutter speed in a range between 1/250-
ES
1/10000. (6 steps)
Automatically selects the shutter speed according to
OFF the lighting conditions, retaining the proper exposure
mode. (Electronic Iris)
EI
For electronic iris reducing the flickering phenomena
FL occurring on the monitor screen caused by fluorescent
or mercury lamps.
※An intense light may leave a trail on the screen longitude. This
smearing is a natural phenomenon and is not due to equipment failure
or fault.
9) Select any required white balance mode by ⑦WHITE
BALANCE MODE SELECTOR. (White balance mode is
set to AUTO upon shipment)
Mode Name
Automatically follows and adjusts to the
AUTO Auto-tracking changing color temperature of the
illumination.
Manual adjustment using ⑧⑨PUSH
MWB Manual
BUTTON(R)(B) as required.
Adjusted with ⑨PUSH BUTTON(B)
according to the color temperature of the
environment. As long as (B)button is
pressed, the color temperature is
PWB Push-lock
adjusted according to the environment.
As soon as the (B)button is released, the
color temperature will be fixed at that
setting.
To lock your manually adjusted color
Lock
temperature settings.
Incandescent Color correction to give natural color
(=3200K) renditions under incandescent lighting.
Fluorescent 1 Color correction to give natural color
1
(=4300K) renditions under reddish fluorescent light.
Fluorescent 2 Color correction to give natural color
2
(=5100K) renditions under bluish fluorescent light.
Sunlight
Used in sunlight to retain white balance.
(=6300K)
CLOSED
LEVEL
OPEN
PAL
1/50
1/120
1/250
1/500
1/1000
1/2000
1/4000
1/10000
1/50-1/100000
Effect
