- Page 1 JETVIEW GDV-101SD 2 – Channel SD Card Mini DVR Instruction Manual Ver. 1.0...
-
Page 2: Table Of Contents
Kit Includes: ............................3 Mini SD DVR Features:........................6 Remote Control of DVR .........................9 Go in the set-up menu .......................9 DVR Connection ...........................10 Basic Operation ..........................11 Configuring Your DVR .........................13 Language setting ......................13 Beep ..........................14 TV Standard ........................14 Power On Channel ......................15 Motion Dection .......................15 Motion Dection Sensitivity .....................16 Motion Source.........................16... -
Page 3: Kit Includes

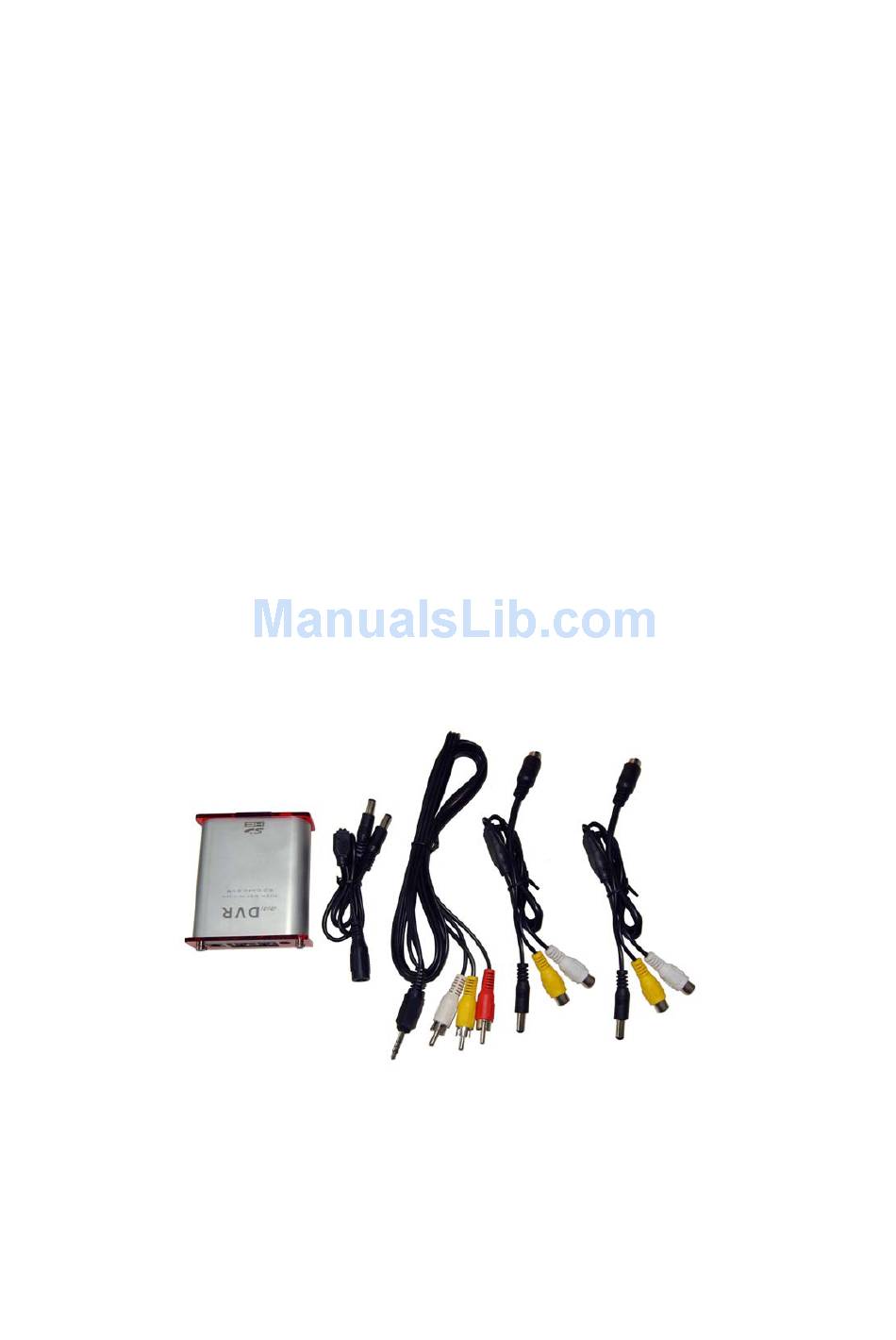

Kit Includes: GDV-101SD-A (with audio) Part Number Description Qty. GDV-101SD-Main DVRainunit GDV-101SD-A01 AV-in cable with 1 x video in, 1 x audio in and 1 x 12V DC out GDV-101SD-DC DC Adapter cable GDV-101SD-A02 AV-output cable GDV-101SD-RM Remote Controller... - Page 4 GDV-101SD-R (with RS485 PTZ) Part Number Description Qty. GDV-101SD-Main DVR Main unit GDV-101SD-R01 AV-in cable with 1 x video in (BNC), 1 x 12V DC out and 1 x RS485 for PTZ GDV-101SD-DC DC Adapter cable GDV-101SD-A02 AV-output cable...
- Page 5 GDV-101SD-RM Remote Controller GDV-101SD-V (record video only) Part Number Description Qty. GDV-101SD-Main DVR Main unit GDV-101SD-R01 AV-in cable with 1 x video in (BNC), 1 x 12V DC out and 1 x RS485 for PTZ GDV-101SD-DC DC Adapter cable GDV-101SD-A02...
-
Page 6: Mini Sd Dvr Features
Remote Controller 1) GVD-101SD-A: This unit records both video and audio 2) GDV-101SD-R: This unit records video only but has a RS485 for PTZ camera control 3) GDV-101SD-V: This unit records video only GDV-101SD-A and GDV-101SD-R has a AV input cable with power output connector for providing 12V DC power for camera or other 12V DC device, very convenient to use. - Page 7 SD flash memory card (upto 32G) PTZ control ** RS485 standard (supports Pelco-D and P) 12V DC Output Yes (GDV-101SD-A & -R only) Operation Voltage 12V DC / 800mA Size (mm) : 86 (L) x 73 (W) x 28 (H)
- Page 8 Front Panel of 2 Channel DVR Back Panel of 2 Channel DVR Fig. 1 Front & Back panel of DVR...
-
Page 9: Remote Control Of Dvr
Remote Control of DVR Go in the set-up menu Enable motion detect function, User press this button start motion alarm mode. Disable motion detect function, User press this button stop motion alarm mode. Go to playback mode, In this mode user can play back recorded AVI or JPEG file. -
Page 10: Dvr Connection
DVR Connection Fig. 2 DVR Connection Diagram AV input cable: Video (yellow female RCA), Audio (white female RCA), 12V DC power-out (male), RS485 out (two-wire) AV output cable: Video (yellow male RCA), Audio (white male RCA), alarm out (red male RCA. -
Page 11: Basic Operation
Please pay attention to the model that you purchased. Each model has the connection cables with number of connectors different from the other models. Basic Operation 1. Connect the camera to the DVR and the DVR to the television/monitor 2. Once the power is set at on, the power indicator is lit and the system starts initializing 3. - Page 12 7.The MENU button is used to enter the configuration menus. 8.The OK button is to confirm and select the current menu option within the configuration menus. 9.The UP , RIGHT , DOWN and LEFT buttons are used to navigate the settings and stored image menus of the DVR.
-
Page 13: Configuring Your Dvr
17,Press UP button will stop movie playing. 18,Press OK button to select a folder or start play selected movie. Press MENU button will start a menu where you can delete item on the SD card or format the SD card. Configuring Your DVR After powering on the unit, press MENU button to enter the system menu to... -
Page 14: Beep
Beep This can be on and off. It is a system warning sound. TV Standard Depending on your country. You can select color system from different settings. The default is “PAL”... -
Page 15: Power On Channel
Power On Channel You can select which channel that you want to be the default when powering on. If you select “Auto”, the system will check which channel has the video signal input and then switch to that channel after few seconds. Motion Dection You can turn on or off the motion detection feature. -
Page 16: Motion Dection Sensitivity
Motion Dection Sensitivity You can select motion detection sensitivity from level 1 to level 12. Level 1 is the highest and level 12 is the lowest. The deafult is level “3”. Motion Source You can select motion source from “Alarm Camera” or “DVR motion”. If you do not purchase the “Alarm Camera”... -
Page 17: Motion Dection Time Slot
this feature is not available. Motion Dection Time Slot Between each motion detection recording, there will be time gap to fit different applications. You can set the time gap from 1 second to 5 seconds. Motion Dection Record Type This allows you to set the record type from a photo to a 10 seconds video clip after a motion is detected. -
Page 18: Record Clip
Record Clip You can select the the record file length to be 5 minutes or unlimited (when set to “off”). Prerecord You can set the unit to have prerecord on or off. When is “on”, the unit will record few seconds of video before the motion triggered recording begins. -
Page 19: Photo Quality
Photo Quality You can set the captured photo quality to low, standard or high quality. Record Video (Movie) Quality This DVR can record video in CIF (320 x 240) or D1 (704 x 576) resolution. At D1 resolution setting, each channel will take approximately 1GB storage space per channel per hour, so a 4GB card can be used for continuos recording for about 4 hours. -
Page 20: File Overwrite
File overwrite This seeting allows you to either overwrite or not overwrite the existing files on the SD card. Video (Movie) Time Stamp You can select whether to have the date and time stamp on the recorded video or not. -
Page 21: Firmware Version
Firmware Version This shows you the version of firmware installed to your DVR. Please check with the dealer or contact us for the latest firmware available. Set the Date and Time This setting allows you to set the correct date and time to the DVR. Display Setting This setting allows you to adjust the display to obtain the best displayed image. -
Page 22: Set To Default
Set to default You can set all parameters back to the factory default setting by using this feature. Save and Exit Menu Make sure that you will save the settings before exit the menu.
