Aviem Pro
User's Manual
AVIEM PRO 1000VA/2000VA
Uninterruptible Power System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO 1000VA and is the answer not in the manual?

Questions and answers

Related Manuals for AVIEM Systems PRO 1000VA

Summary of Contents for AVIEM Systems PRO 1000VA

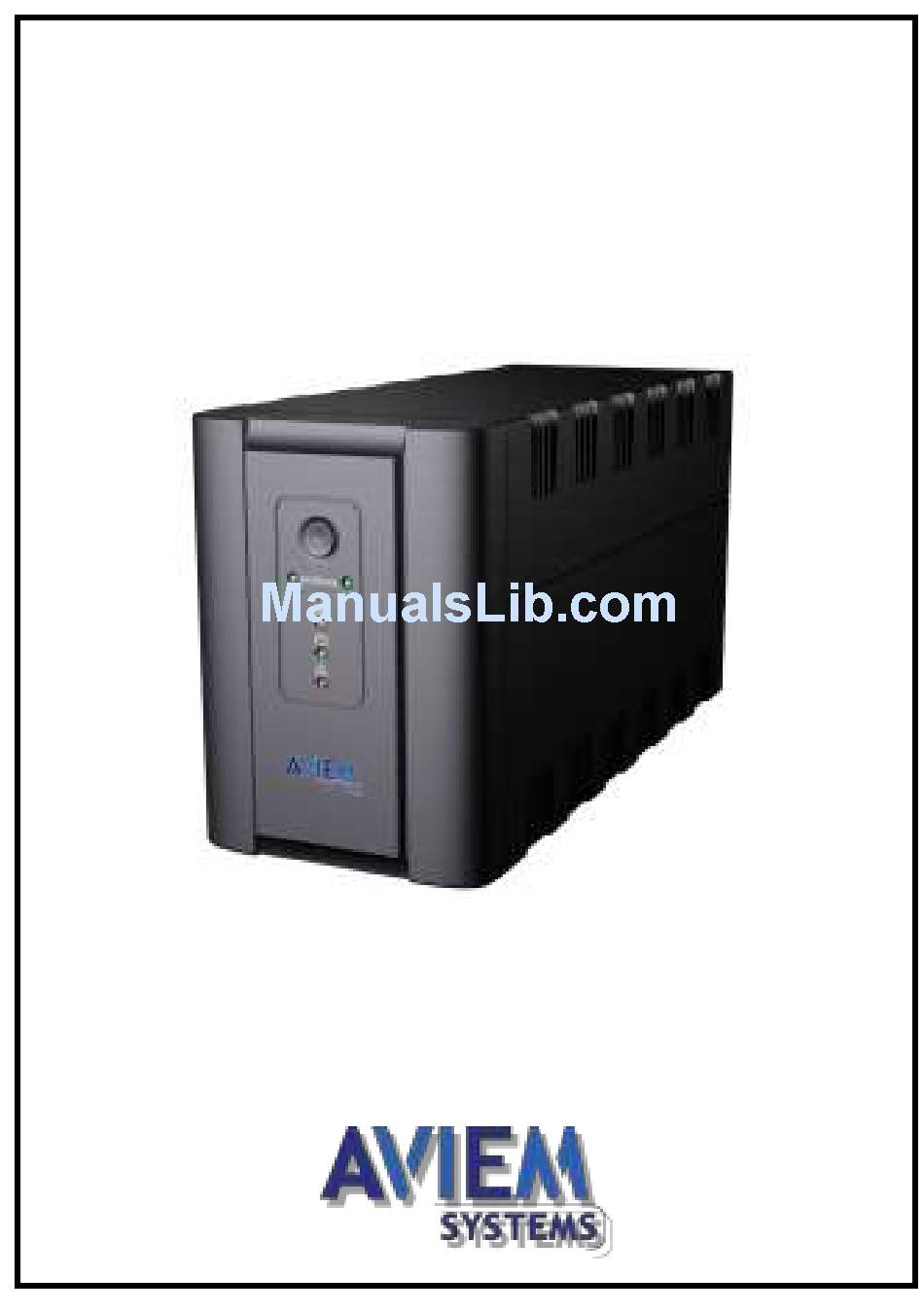

  • Page 1 Aviem Pro User’s Manual AVIEM PRO 1000VA/2000VA Uninterruptible Power System...

  • Page 2: Safety Caution

    Safety – CAUTION  This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs.  Internal battery voltage is 24Vdc. Sealed, lead-acid, 6 cells battery two pcs.
  • Page 3 4) Do not lay tools or metal parts on top of batteries. 5) Disconnect charging source prior to connecting or disconnecting batteries terminals.  Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from batteries.

  • Page 4: Troubleshooting

    TROUBLE SHOOTING Symptom Possible Cause Remedy No LED display on 1. Battery weak. 1. Charge battery up to 8 hours. the front panel. 2. Battery defect. 2. Replace with the same type of battery. 3. Power switch is not pressed. 3.
  • Page 5 Back Panel 1. AC input 2. Output receptacles 3. USB & RJ45 communication Aviem Pro 1000 Aviem Pro 2000 1. Inspection Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If any damage is discovered, repack the unit and return it to the place of purchase.
  • Page 6 3. Placement Install the UPS unit in any protected environment that provides adequate airflow around the unit, and is free from excessive dust, corrosive fumes and conductive contaminants. Do not operate your UPS in an environment where the ambient temperature or humidity is high. On the other hand, place the UPS away from the monitor at least 20cm to avoid interference.
  • Page 7 6. DC Start All Aviem Pro Series are equipped with DC Start. To start the UPS when AC utility power is not available, simply press the power switch. 7. Green Power Function All Aviem Pro UPS is equipped with Green Power Function. For saving power and protecting battery, the method of deep discharging protection is adopted on inverter mode.

  • Page 8: Specification

    SPECIFICATION AVIEM PRO 1000VA/2000VA MODEL CAPACITY VA/W 1000VA/600W 2000VA/1100W Voltage 220VAC INPUT Voltage Range 162-268VAC Voltage 220VAC Voltage Regulation (Batt. +/-10% Mode) Frequency 50Hz or 60Hz OUTPUT Frequency Regulation +/-1 Hz (Batt. Mode) Output Waveform Modified Sine wave Battery Type...

This manual is also suitable for:

Pro 2000va
