Summary of Contents for EV LIGHT EV 3108

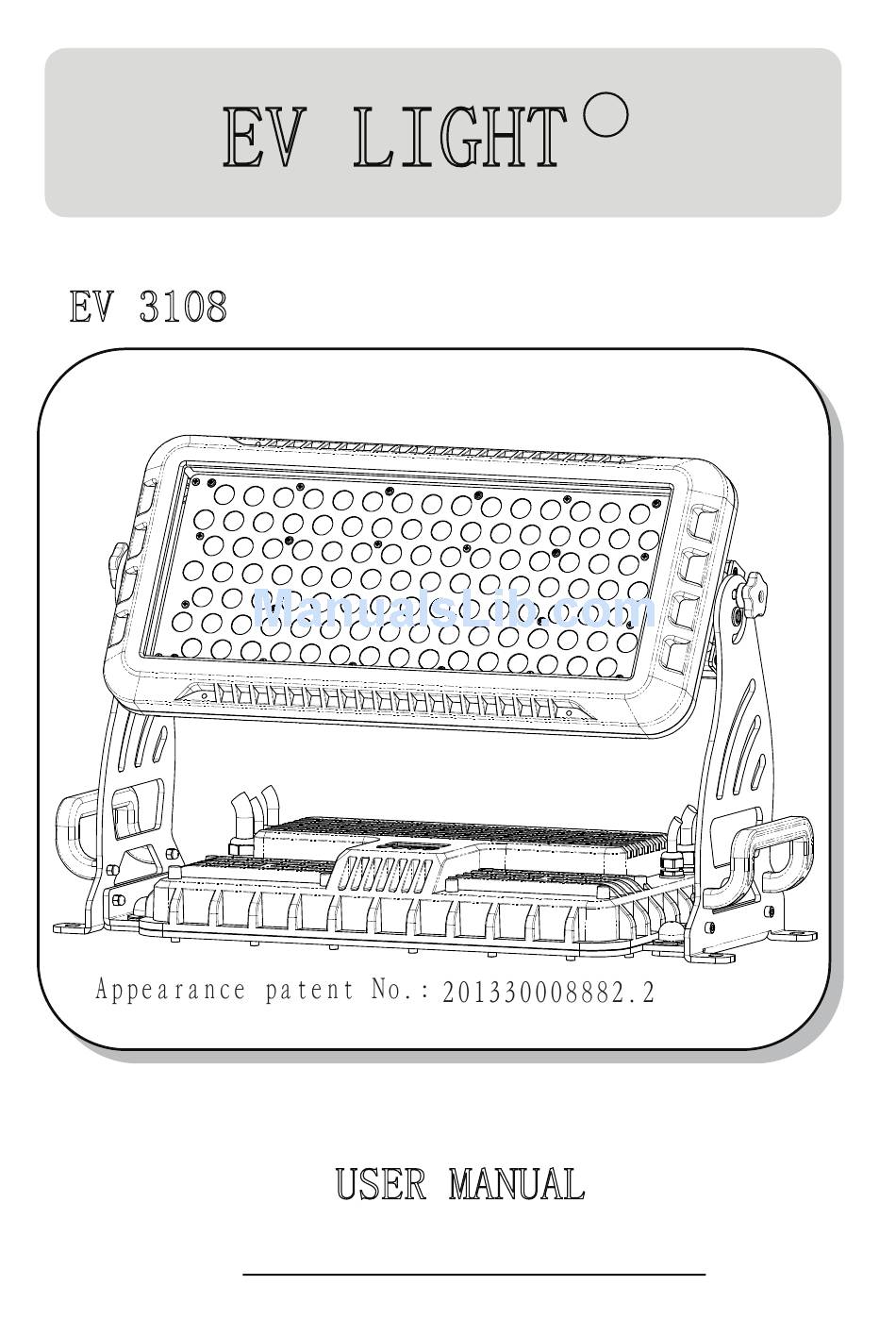

- Page 1 EV LIGHT EV 3108 13211072211 01010107210 7par3108 USER MANUAL Please read it carefully...
-
Page 2: Table Of Contents
INDEX SAFETY GUIDELINE ··················································································· - 2 - 1、 TECHNICAL PARAMETER ·········································································· - 3 - 2、 LIGHTING INSTALLATION ·········································································· - 4 - 3、 POWER SUPPLY-CONTROL SIGNAL CONNECTIONS ···································· - 4 - 4、 OPERATION MENU ··················································································· - 5 - 5、 BUTTON OPERATION ··················································································· - 7 - DMX ADDRESS CODE SETTING ·····································································... -
Page 3: Safety Guideline
SAFETY GUIDELINE Please keep this manual in a safe place for further reference. Please make sure they also have this user manual if you sell this lighting to other users. Every unit is packed properly by the manufacturer. Please operate this lighting according to the user manual. -
Page 4: Technical Parameter
TECHNICAL PARAMETER Input Voltage： AC100V-AC240V， 50/60HZ； Power Consumption： 324W ; Lamp Specifications：108 pcs(27R+27G+27B+27W)3W LED,rate life 50000 hours. Lens Angle：15º（Optional:25º,45º) Spot Angle：28º； Color：RGBW linear color mixing； Color Temperature：color cast calibration setting、color temperature output inside device； Dimmer： 0-100% linearly dimming， 5 types dimmer modes，smooth dimming, flicker-free； Shutter：independent electronic strobe；... -
Page 5: Lighting Installation
LIGHTING INSTALLATION 3、 MOUNTING HOLE FOR BOLT LAMP HOOK SAFETY CORD HANDLES MOUNTING HOLE FOR LAMP HOOK PICTURE TWO PICTURE ONE HOOK The lighting can be hanged at the high place with using the lamp hooks (as showed in picture one). -
Page 6: Operation Menu
The transmission speed of DMX 512 signal is very quick. It will affect the signal transmission if any damage of the signal line, the weld is not firm or bad connection etc The connector with 3 pins XLR is more universal than the one with 5 pins XLR. 3 pins XLR：PIN 1：GND，PIN 2：- signal，PIN 3：+ signal. - Page 7 …… AT05 RUN.. ATSP 0-255(second) (Auto speed) CHS1 RUN.. …… CHS5 RUN.. R (RED) 0-255 G (GREEN) 0-255 B (BLUE) 0-255 SC01 PROG （Scene 1） W (WHITE) 0-255 （Program） CHS1 SHUT 0-255 （Chase 1） TIME 0-255(second) WAIT 0-25.5(second) YES/NO …… SC20 （Scene 20）...
-
Page 8: Button Operation
BUTTON OPERATION 1) MENU：To return to the previous menu. 2) ENTER：Enter to the next menu or save. 3) UP：Menu selection or increasing the parameter. 4) DOWN：Menu selection or decreasing the parameter. DMX ADDRESS CODE SETTING 1) Press the 【ENTER】 button in 【ADDR】 menu, then enter to the DMX address code setting. 2) Press the【UP/DOWN】button to select【1-512】numerical value. -
Page 9: Edit Auto-Programming Program
2)Press the【UP/DOWN】button to select【AT01】…【AT05】，【SPEED】，【CHASE01】 …【CHASE05】 3)Press the【ENTER】button to start running. EDIT AUTO-PROGRAMMING PROGRAM 1) Press the【ENTER】button in【PROGRAM】menu, then enter to the editing auto-programming program. 2) Press the【UP/DOWN】button to select【CHASE01】…【CHASE05】 3) Press the【ENTER】button for confirmation and enter to the next menu. 4) Press the【UP/DOWN】button to select【SCENE01】…【SCENE20】... -
Page 10: Maintenance
Illustrations： 1)Must disconnect the connection of projector and console before sending the parameter. 2)The information of【ADDR】、【CAL】can’t be sent, can’t be downloaded each other. 3)There will be an automatic reset of the other projectors after receiving parameter correctly. 6、 MAINTENANCE o prolong the life of lighting, it is very important to do the maintenance work. -
Page 11: Dmx Protocol
8 DMX PROTOCOL 4CHS 5CHS 7CHS 10CHS Value Function 0—255 Dimming all 0—255 0—255 Green 0—255 Blue 0—255 White 0—10 No strobe 11—90 Strobe，slow->fast 91—170 Random Strobe，slow->fast 171—255 Electronic Squarewave，slow->fast 0—10 No effect 11—20 WHITE 1:3200K 21—30 WHITE 2:3400K 31—40 WHITE 3:4200K 41—50 WHITE 4:4900K... - Page 12 EV LIGHT(GUANGZHOU) CO.,LTD. ADD: TEL: FAX: WEBSITE:...
