INSTRUCTION OF LED WALL WASHER 65985
This product is mainly used for decoration and highlight in building frame, garden, etc. It can work
in independent mode and DMX mode, which can generate various color changing effects, such as
flashing, fading, steady ,seven color jumping synchronously etc. DMX256 class gray degree dim-
mer, DMX programable (thousands of effects available if many lights connected together).

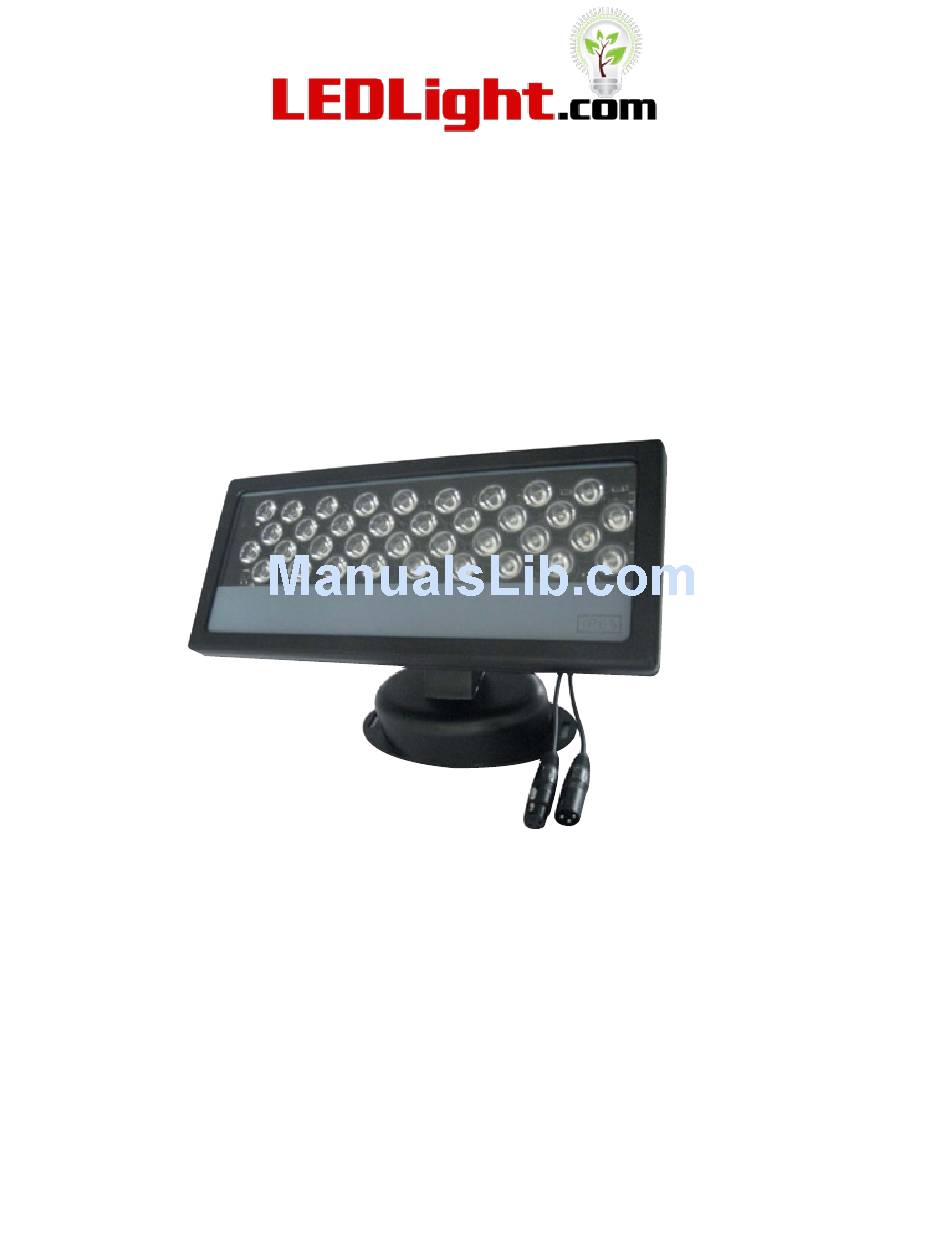

A. Structure and Specification (as the right picture)
Size: L343*W152*H214mm
Material of Shell: Aluminum alloy
Weight: 3.9kgs±5%
Rotary angle: 180°
B. Technical Parameters
Input Voltage: 100V~256V AC
Operating Voltage: 12V DC/24V DC
Protection Rating: IP65
Operating Temperature: -40°C~60°C
Model No. 65985
LED Quantity : 36 Power
Power Consumption: 43Watts
C. Function
Seven color jumping, seven color fading, seven color flashing, master/slave mode
D. Control mode
Independent mode: Choose the effects that you need by button on the back of lighting; auto online
DMX mode: International standard DMX512 signal control (3XLR)
LED Color: R-12, G-12, B-12
Beam Angel: 25º45 º
Current: 0.22A(Max.)
Project distance: 15-20M
Advertisement
Summary of Contents for LEDLight LED WALL WASHER 65985
- Page 1 INSTRUCTION OF LED WALL WASHER 65985 This product is mainly used for decoration and highlight in building frame, garden, etc. It can work in independent mode and DMX mode, which can generate various color changing effects, such as flashing, fading, steady ,seven color jumping synchronously etc. DMX256 class gray degree dim- mer, DMX programable (thousands of effects available if many lights connected together).
- Page 2 E. Instruction of buttons E-1. Set up DMX address When the digital tube is not flashing, press “A” key, one digital begin to flash, and press “A” key once again, digital tube moves backward, you can start to edit the new address, Press “B” key, the corresponding flash digital tube increase one bit (the values between 0 to 9);...
- Page 3 Φ20 thermal shrinking sleeve and blow and shrink it with a hair drier for waterproof purpose. Warning: Neglect on action of the above treatment will lead to failure of waterproof and proper working of the lights!!! LEDLight.com sales@ledlight.com LEDLight.com sales@ledlight.com Toll Free: 1.877.283.5060 Local: 602.997.0366 Fax: 602.861.4088 Toll Free: 1.877.283.5060 Local: 602.997.0366 Fax: 602.861.4088...
