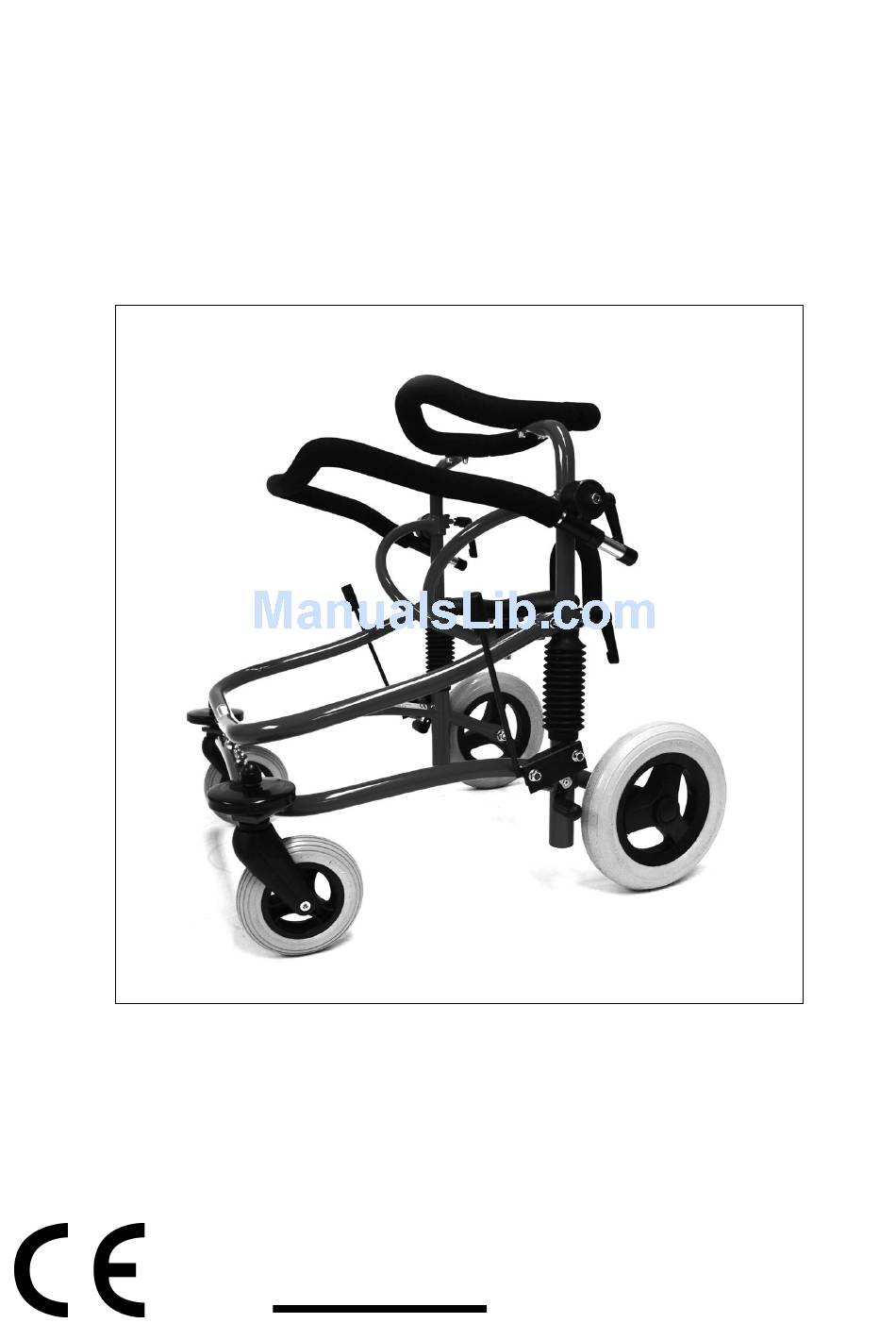

  • Page 1 User manual for ® size 1 and size 2 meyland-smith mobility and more...
  • Page 2 Page 2...
  • Page 3 The rear stop prevent the child from sliding off the seat, and the handlebar gives sup- port to the arms. The trunk support and the rear stop are opened with a simple grip and makes it easy to get in and out. With its large wheels MINIWALK is suitable ®...

  • Page 4: Prior To First Use

    Tel: +45 98 96 19 85 Prior to fi rst use MINIWALK is supplied almost fully assembled. ® Check that the package contains the following parts: • Bottom frame with wheels and brakes etc. • Top unit with seat and trunk support etc.

  • Page 5: Spring Loading

    Tel: +45 98 96 19 85 Warning: The upper tubes with the rulers are fi tted with a safety-stop. When the spring loaded pin (see fi gure 5) at the bottom of both of the upper tubes locks in the hole in the lower tubes it marks the maximum top unit height allowed.
  • Page 6 Tel: +45 98 96 19 85 Seat position and seat angle: The seat can be adjusted forwards or backwards by loosening the Allen screw at the bottom edge of the square tube of the seat fi tting (see fi gure 10). When the desired position has been found, the Allen screw is retightened.
  • Page 7 Tel: +45 98 96 19 85 Mounting and adjustment of ac- cessories Anti-tip supports: Anti-tip supports are mounted on each side by fi rst removing the centercap on the outside of the rear wheel and unscrewing the nut from the bolt which pass through the wheel hub (see fi...
  • Page 8 Tel: +45 98 96 19 85 Swivel lock on front casters: The swivel locks are delievered mounted on two new front casters together with two new front wheels. For mounting fi rst remove the two existing front wheels from the casters, use a 6 mm Allen key here (see fi...
  • Page 9 Tel: +45 98 96 19 85 Hip-pads: The hip-pads are mounted on the two upper tubes below the seat tube (see fi gure 21). To mount the hip-pads fi rst lift off the top part of MINIWALK from the bottom frame. At each side ®...
  • Page 10 Figure 24 Please note that the brake levers are not intended to be used by the child. This is a deliberate choice of the manufacturer, since the brakes on MINIWALK ® are parking brakes and not driving brakes. In addi-...
  • Page 11 Tel: +45 98 96 19 85 fi gure 26). Turn the adjustment screw until the roller presses into the tyre. Finally tighten the counter nut again. Use trial and error to fi nd the best pressure against the tyre.
  • Page 12 Tel: +45 98 96 19 85 Page 12...

  • Page 13: Safety Precautions

    ® Warning: • If parts are removed, open tube ends may be revealed. These may have sharp inner edges and be dangerous for probing fi ngers. MINIWALK is designed to avoid the ® necessity for open tube ends! If, however, a situation with open tube ends should arise, it is recommended that they are sealed off with plastic plugs.
  • Page 14 Tel: +45 98 96 19 85 Page 14...

  • Page 15: Technical Data

    Tel: +45 98 96 19 85 Technical data Dimensions: Size 1 Size 2 Length: 74 cm (29") 74 cm (29") External width: 65 cm (25,5") 65 cm (25,5") Internal width: 39 cm (15,5") 39 cm (15,5") Seat height: 27 - 48 cm (10,5"...
  • Page 16 Dealer: Manufacturer: meyland-smith mobility and more Industrivej 27 DK-9830 Taars TEL. +45 98 96 19 85 • FAX +45 98 96 19 86 E-mail: info@meyland-smith.dk Rev. MØC/101207...
