Summary of Contents for Crystal Image Cat5M-IP116-3
-

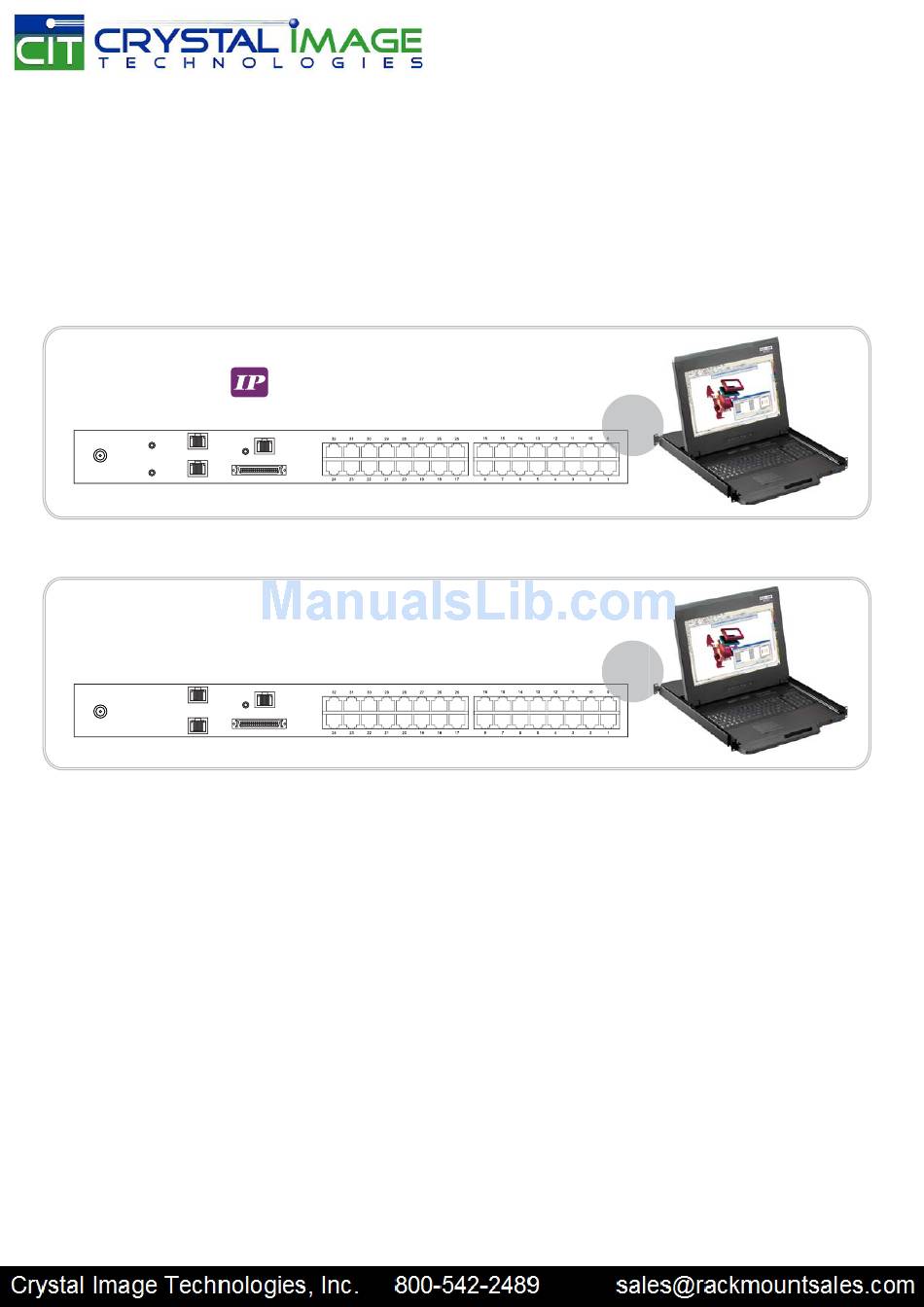

Page 1: User Manual
KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer Cat5M-IP116-3/216-4 Matrix Cat6 Cat5M-IP132-3/232-4 back -Cat5M16-2 / 16-3 / 16-4 Matrix Cat6 KVM -Cat5M32-2 / 32-3 / 32-4 back... -
Page 3: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 4: Table Of Contents
Contents < Part 1 > Matrix Cat6 KVM Kit Cat5M-IP116-3 Cat5M-IP216-4 Cat5M-IP132-3 Cat5M-IP232-4 Package contents KVM port & Cat6 dongle connection P.2 - 3 IP & Remote console connection P.4 - 5 IP console setting KVM Cascade Specifi cations < Part 2 > Matrix Cat6 KVM Kit... -
Page 5: Package Contents
-Cat5M-IP216-4 / -Cat5MI-P232-4 • Power adapter w/ power cord ( for receiver ) x 1 • CE-6 6ft Combo KVM cable for receiver box x 1 KVM Rear Kit back -Cat5M-IP116-3 Remote Console 1 Power Cascade -Cat5M-32-2 -Cat5M-IP216-4 Remote Console 1... -
Page 6: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection Matrix Cat6 IP KVM USB Servers DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port Drawer KVM Rear Kit PS/2 Servers USB Servers PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable max. -
Page 7: Ip & Remote Console Connection
< 1.3 > IP & Remote console connection Matrix Cat6 IP KVM Network device hub or router CAT 5 / 6 cable max. 100m Remote USB console Receiver CAT 5 / 6 cable max. 150m Remote Cat6 Drawer KVM Rear Kit Console 1 Network device hub or router... - Page 8 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.20 Drawer KVM Rear Kit Monitor Remote...
-
Page 9: Ip Console Setting
< 1.4 > IP console setting Matrix Cat6 IP KVM After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download from the link: www.rackmountsales.com/v/pdf/citumipkvm.pdf 2. Refer to page 3 to confi gure the IP KVM by device setup as below. 3. -
Page 10: Kvm Cascade
< 1.5 > KVM Cascade Matrix Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5M-16 / Cat5M-32 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 11: Specifi Cations
< 1.7 > Specifi cations Matrix Cat6 IP KVM -Cat5M-IP216-3 -Cat5M-IP216-4 -Cat5M-IP232-3 -Cat5M-IP232-4 KVM Port ▀ Number of ports: 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console Nil for LCD console drawer version ▀... - Page 12 UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com...
- Page 13 < Part 2 > Matrix Cat6 KVM < 2.1 > Package Contents Matrix Cat6 KVM -Cat5M-16-2 / -Cat5M-32-2 • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 • CE-6 6ft Combo KVM cable for receiver box x 1 KVM Rear Kit back -Cat5M-16-3 / -Cat5M-32-3...
-
Page 14: Cat5M-16-2 Cat5M-16-3 Cat5M-16-4
Matrix Cat6 KVM -Cat5M-16-2 Remote Console 1 Power Cascade -Cat5M-32-2 -Cat5M-16-3 Remote Console 1 Power Remote-2 Cascade -Cat5M-32-3 -Cat5M-16-4 Remote-3 Remote Console 1 Power Remote-2 Cascade -Cat5M-32-4 P.11 UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com... -
Page 15: Kvm Port & Cat6 Dongle Connection
< 2.2 > KVM port & Cat6 dongle connection Matrix Cat6 KVM USB Servers DVI-USB dongle CAT 5 / 6 cable max. 40 meters DVI-D Cat6 KVM port Drawer KVM Rear Kit PS/2 Servers USB Servers PS/2 VGA-USB dongle VGA-PS/2 dongle CAT 5 / 6 cable max. - Page 16 < 2.3 > Local console & remote console connection Matrix Cat6 KVM Remote Receiver USB console 3 CAT 5 / 6 cable max. 150m Remote USB console 1 Receiver CAT 5 / 6 cable max. 150m Remote Remote Cat6 Cat6 Drawer KVM Rear Kit Console 3 Console 1...
- Page 17 How to use a receiver to connect a remote console Matrix Cat6 KVM Receiver Local Computer Monitor Remote I/O Front Power Rear Local Remote Mouse Button Button KVM switch The receiver provides a hotkey function for remote console. Please refer to P.20 Drawer KVM Rear Kit Remote Console...
-
Page 18: Kvm Cascade
< 2.4 > KVM Cascade Matrix Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of Cat5M-16-2 / Cat5M-32-2 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 19: Specifi Cations
< 2.5 > Specifi cations Matrix Cat6 KVM -Cat5M-16-2 -Cat5M-16-3 -Cat5M-16-4 -Cat5M-32-2 -Cat5M-32-3 -Cat5M-32-4 ▀ KVM Port Number of ports: 16 or 32 Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console Nil for LCD console drawer version ▀... -
Page 20: Part 3. Usage
Part 3. Usage Matrix Cat6 KVM Usage 3.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications Front Panel - Port LED Indications 16 ports... -
Page 21: Password
< 3.2 > Password Matrix Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 22: Kvm Osd
< 3.3 > KVM OSD Matrix Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter... - Page 23 < 3.4 > KVM Hotkey & Remote Console Hotkey Matrix Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. UM-CV-751-MUKVM-KIT-Q113V1 www.rackmountsales.com...
