Aquawatt AB13R Operator's Manual

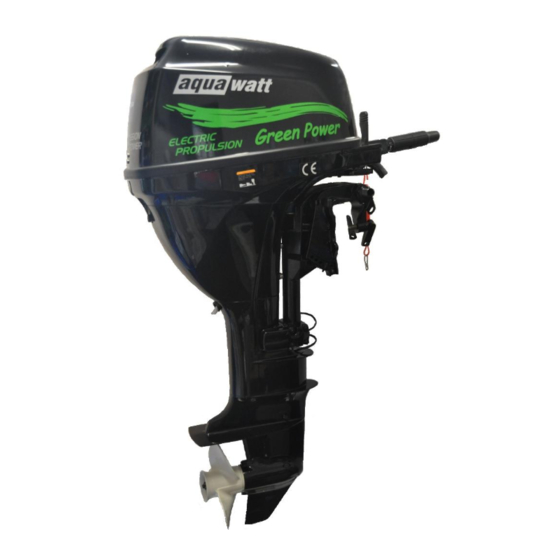

Electric autboard motor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
aquawatt outboard motor operator's manual
Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™
advanced electric
inboard- and outboard engines
aquawatt Asia - Pacific
all4solar Dominic de Vries
ABN 61 832 274 764
123 Harbour Drive | Trinity Park 4879 QLD (Australia)
 +61(0)400275866|info@aquawatt.com.au|www.aquawatt.com.au
Operator's Manual
Electric Outboard Motor
AB13R & AB13T POWER
AB22R & AB22T RACING
AB22R - THRUSTER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AB13R and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquawatt AB13R

  • Page 1 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ advanced electric inboard- and outboard engines aquawatt Asia - Pacific all4solar Dominic de Vries ABN 61 832 274 764 123 Harbour Drive | Trinity Park 4879 QLD (Australia) ...
  • Page 2 This manual has been compiled to help you install and operate your aquawatt motor with safety and pleasure. It contains details for the motor, all equipment fitted or optionally supplied and information on its installation, operation and maintenance.

  • Page 3: Table Of Contents

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ Contents 1) Hazard communication ........................5 Hazard signs ........................5 Unpacking .......................... 6 Eligibility of the boat / transom height ................6 Open hood ..........................
  • Page 4 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 6.2) Service chart ........................29 7) Boat transport & trailering ......................30 8) Warranty ............................30 9) Technical data ..........................31 10) Spare parts ........................... 35 11) Installation diagram ........................

  • Page 5: Hazard Communication

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 1) Hazard communication Before operating your motor you have to carefully read and understand this operator’s manual. As you read this manual, please note the hazard warnings which alter you to safety precautions related to unsafe conditions or operating procedures.

  • Page 6: Unpacking

    The aquawatt motor is a long shaft motor and fits to a transom height of 20 inches (530-560 mm). If the transom is too low or to thick for the mounting bracket, an external board can be constructed to adapt the motor to the transom.

  • Page 7: Open Hood

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ Open hood When opening the motor hood, make sure the motor is disconnected from the battery system. The motor has to be fixed in upright position on a stable construction if any work is executed.

  • Page 8: Installation To The Boat

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 2) Installation to the boat Place the motor with the mounting bracket to the middle of the transom top. The antiventilation plate has to be in the water at all times. It should be 20 – 50 mm deeper in the water than the bottom of the hull.

  • Page 9: Electric Power Supply

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ INFORMATION Secure the motor to the hull with a cable to the mounting bracket to prevent loss during installation or de-installation process.
  • Page 10 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™  The lugs and battery terminals need to be eligible for 300 Amp / 50 / 80 volts DC.  The operator has to have access to the emergency switch at all times! ...

  • Page 11: Safety Stickers

    High voltage sign (example only)  On motor hood  On battery box  On switch board Emergency switch (example only)  On switch board Aquawatt supplies two vinyl stickers with each motor kit (approx 18 x 25 cm)

  • Page 12: Warranty Information Operation / Installation

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ Warranty information operation / installation Incorrect installation, use of unsuitable accessories or variations in voltage voids the warranty. Electrolysis is the decomposition of metals exposed to an electric current. When your boat is connected to a shore power AC electrical system, it is also connected to an earth ground circuit.

  • Page 13: Installation Of Remote Controlled Motors

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 3) Installation of remote controlled motors 3.1) Throttle and gear shift For throttle and gear shift operation a single lever power engine control needs to be installed on the boat.
  • Page 14 These have to be mounted to the helm stand with the supplied cables. (See 3.3) Suitable cables and single lever power engine controls can be purchased from aquawatt or marine supplier. Installation on the boat has to be done by an experienced person.

  • Page 15: Steering

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 3.2) Steering The motor needs to be equipped with a suitable, standardized and certified steering kit. The steering equipment should comply with CE / EN 28848.
  • Page 16 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ Transom support mounting Alternatively the steering cable can be fixed at the transom of the hull. This needs a special support unit to hold the cable to the transom.

  • Page 17: Display & Switches

    Optional ampere hour meter recommended (use system capable to measure 60 V DC / 300 A or 90 V DC / 300 A). This is included in the lithium battery packs, if purchased from aquawatt. The shunt included with the meter has to be installed between the negative battery pole and the fuse / main switch.

  • Page 18: Operational Area

    4) Operational area The aquawatt motor can be used in fresh water and if equiped with suitable anodes in salt water. If used in salt water, it has to be assured, that no salt water runs under the cover. The anode has to be cleaned a replaced if 25% is corroded.

  • Page 19: Turn-On Procedure

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 5.1) Turn-on procedure  Turn-on the battery main switch  Connect boat kill key to the switch (see 2.1.)  Turn tiller handle to the slow position or shift the engine control to the neutral position ...

  • Page 20: Drive Forward

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 5.2) Drive forward Turn the hand throttle to minimum speed or the engine control to the neutral position. Switch the gear to forward (in the forward direction) or move the engine control to forward.
  • Page 21 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ Motor rotation speed / minute Battery charge status in % Hours of operation (full hours) Battery power in Amps Motor power in Amps Battery voltage in volts IMPORTANT: All values refer to AGM (lead acid) batteries.

  • Page 22: Error Messages On Display

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 5.6) Error messages on display An error or damage is reported by a red light. If the battery is completely empty this warn light is also switched on.

  • Page 23: Trim The Motor

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 5.8) Trim the motor CAUTION Raise or lower the engine with care and if possible with assistance. The drive angle can be adjusted by displacing the trim bolt. The antiventilation plate should be parallel to the water surface when driving.

  • Page 24: Steering Brake

    If tightened too much, the throttle or the steering can get blocked! 5.11) Power and output The aquawatt controller automatically adapts the power output to the boat you use. The motor works most efficient at speeds over 5 knots. With slow and heavy boats the motor produces more thrust. If the boat floats easily, the motor speed is automatically increased.

  • Page 25: Main Fuse

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 5.12) Main fuse To give the motor a basic protection a 300 Amp fuse is installed inside the powerhead. If the fuse blows do not install a new fuse unless the motor has been checked by a specialized engineer.

  • Page 26: Swimming & Passengers

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 5.13) Swimming & passengers WARNING Prior to swimming of the boat, always switch off the motor and pull the key. Do not leave children or untrained passengers in the boat without attendance.
  • Page 27 Version 1.22 EN | EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ ™ 6.1.1 Gear oil After the first 10 hours of operation the gear oil 10 hours of operation the gear oil of the lower unit should to be changed. Only the to be changed.
  • Page 28 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ If the used oil shows a grey or milky color, this could be caused by water in the oil. Contact your service centre or dealer.

  • Page 29: Service Chart

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 6.2) Service chart Shedule by Operator by authorized dealer by manufacturer or specialized workshop After each trip Flush the water cooling system (see 2.2) and check for...

  • Page 30: Boat Transport & Trailering

    Transport to aquawatt is to be paid by customer. The redelivery to the customer is paid by aquawatt, if warranty applies.

  • Page 31: Technical Data

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 9) Technical data X = Included / O = Option POWER RACING THRUSTER Type AB12/13 Type AB22 Tiller control (tiller version) n.a.
  • Page 32 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ Dimensions POWER & RACING Height overall: 1230 mm Weight: 56 / 60 kg...
  • Page 33 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ THRUSTER Height overall: 1340 mm Weight: 94 kg...
  • Page 34 Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ Performance with AGM / lead acid batteries Operation time 13 KW - motor at 26 C – output 10-11 KW max.  If operated at high speed, after the indicated time, the motor can still be operated at lower speed, but the lead acid battery will not supply the full current and voltage anymore.

  • Page 35: Spare Parts

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 10) Spare parts A lot of mechanical spare parts are similar to the MSHB 9.9 Yamaha or Parsun outboard motors and can be installed / replaced by an authorized dealer. The safety information and all instructions and recommendations in this manual have to be respected at all times.

  • Page 36: Installation Diagram

    Please check to ensure you have ordered all parts and accessories needed for the installation of your aquawatt motor. For the length of the electric cables we recommend to order + 10%. If two motors are used, you need to install two strings and at least two battery blocks. The battery blocks can be connected via a selection switch.

  • Page 37: Propeller Information

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 12) Propeller information 12.1) Choice of propellers The supplied standard aluminium propeller (3 x 9.25 x 8) has fairly thick blades which results in a continuous stream.

  • Page 38: Replace Propeller

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 12.2) Replace propeller Always replace damaged propellers. A propeller should be removed at least every 6 months just to grease the axle.

  • Page 39: High Power Batteries

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 13) High power batteries Instead of lead acid batteries, lithium – based systems offer a much higher energy density and a stable power output as well as much higher efficiency.

  • Page 40: Battery Charging / Solar Power

    Version 1.22 EN | EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ ™ 14) Battery charging / solar power Battery charging / solar power 14.1) Standard grid chargers Standard grid chargers For charging the batteries you must use a suitable charger.

  • Page 41: Solar Panels

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 14.4) Solar panels There are different types of photovoltaic solar panels on the market. The sunlight has a maximum power of 900 – 1100 Watts per m2 when shining on a surface. If 10% can be converted to electricity, that means that about 90 –...

  • Page 42: Wind Generators

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 14.5) Wind generators Wind generators generate free power for 24 hours and are the ideal solution in combination with a solar pv system.

  • Page 43: Ce Conformity Declaration For Aquawatt Electric - Outboard Motor

    Version 1.22 EN | 31.03.2015 | copyright by aquawatt ™ | all4solar ™ 15) CE conformity declaration for aquawatt electric – outboard motor According to EU-directive 98/37/EG Valid for motor type AB13R and AB13 T / AB22R and AB22T / AB22 Thruster Manufacturer: D.H. Seebacher – Mechatronik, Wasserstrasse 1 ,...
