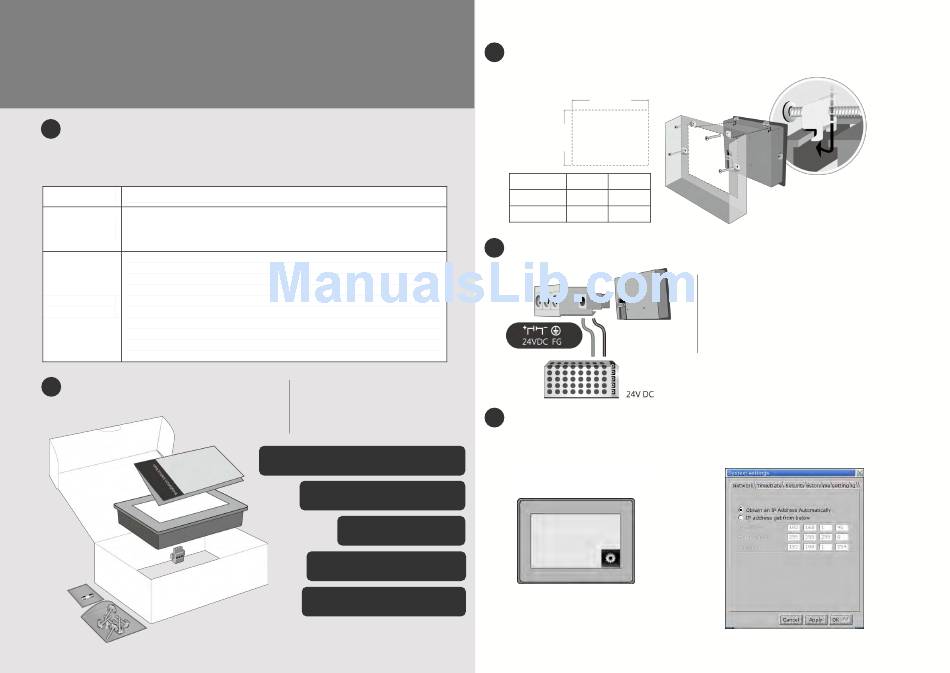

weintek MT8121 series Installation Instructions

MT8121/8150XE series
Installation and Startup Guide
1
This document covers the installation of MT8121/8150XE Series HMI, for the detailed specifications
and operation, please refer to Brochure and EasyBuilder Pro User Manual.
Install Environment:
NEMA Rating The MT8121/8150XE Series HMI is NEMA 4 rated (Indoor Use Only).
The MT8121/8150XE Series has been tested to conform to European CE
Electrical requirements. This means that the circuitry is designed to resist the effects of
Environment electrical noise. This does not guarantee noise immunity in severe cases. Proper
wire routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical v bration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
2
Unpacking the Unit
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(5)
(4)
Installation Instruction
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
(5) Fuse 1.6A/250V 5*20mm *1
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws:
(A)
Cutout
(B)
Type A(mm) B(mm)
MT8121XE 305 231
MT8150XE 352 279
4 Power Connections
System Settings
5
When HMI is powered up and displays image,
press the system setting button.
(Default System Password: 111111)
It is necessary to connect the HMI to
your network through a RJ-45 cable.
NOTE:
Connect positive DC line to the „+‟ terminal
1.
and the DC ground to the „-‟ terminal.
2. Please do not connect HMI with PLC and PC
simultaneously to prevent potential difference
from destroying USB ports of HMI and PC.
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
