Summary of Contents for Concept Pro CBP6324DN-HD

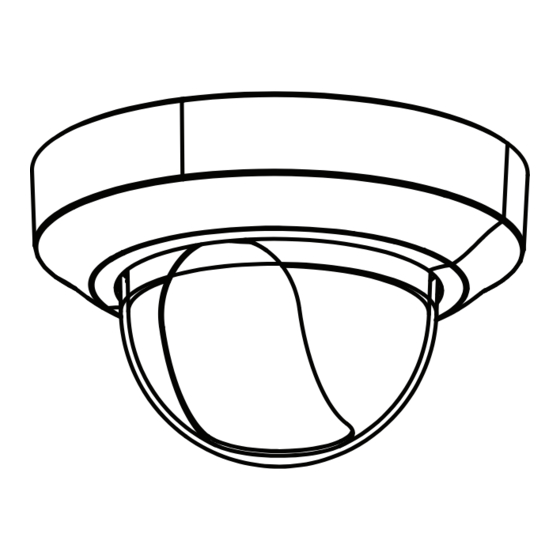

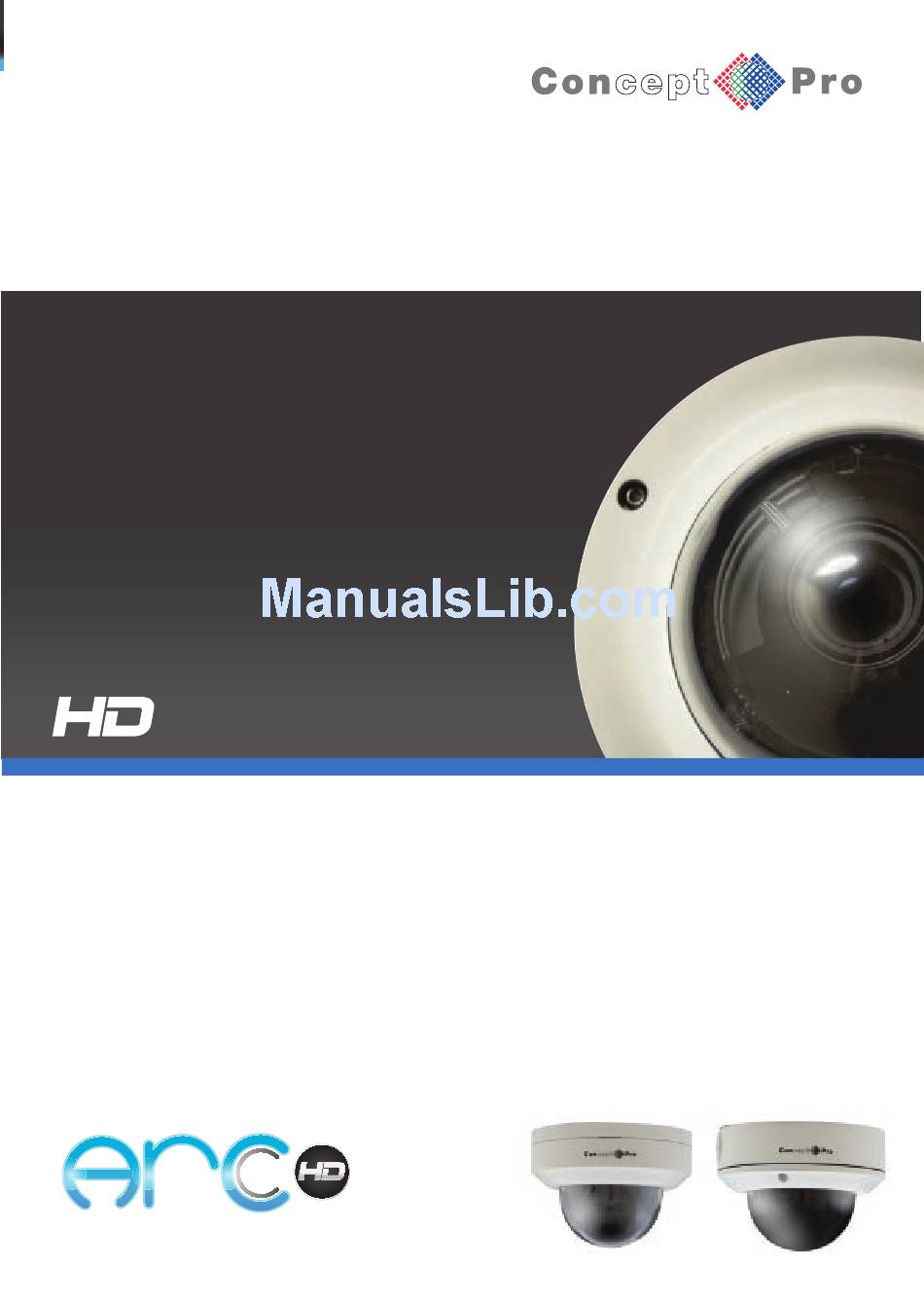

- Page 1 CBP6324DN-HD CVP9324DN-HD Colour Mono Dome Camera USER MANUAL...
- Page 2 CAUTION This installation should be made by a qualified service person and should abide to all local codes. Avoid installation on a surface subjected to frequent vibration or shocks. Do not operate the camera beyond its temperature range or power source ratings. Should any damage or suspected damage occur, shutdown the power source, unplug and contact your service provider.
- Page 3 INTERNAL DOME INSTALLATION CBP6324DN-HD Important: Ensure all cautionary procedures are observed during installation. FIXING TO A WALL It is recommended the camera is tested during the most demanding environmental conditions such as low light or bright sunlight to ensure continuity of effective CCTV Ceiling monitoring.
- Page 4 VANDAL RESISTANT DOME INSTALLATION CVP9324DN-HD Important: Ensure all cautionary procedures are observed during installation. FIXING TO A WALL It is recommended the camera is tested during the most demanding environmental conditions such as low light or bright sunlight to ensure continuity of effective CCTV Ceiling monitoring.
- Page 5 CONNECTION Power connector HD-SDI BNC Connector Coaxial Cable Connect the video out port to your coaxial video HDMI Cable cable running to the HD-SDI Recorder Check the power supply is of the correct level and connect your power supply into the power HD-SDI DVR port on the Camera.
- Page 6 OSD Controller RIGHT MENU / ENTER DOWN RCA SERVICE VIDEO LEFT OUTPUT (4:3 Video Format) *Please note: The Service Video Out is standard definition This is an analogue Video Output only, used for setting up via a test monitor. EXPOSURE Please note: depending on which "Model"...
-
Page 7: White Balance
WHITE BALANCE AUTO PRESET PUSH TO APPLY MANUAL RED GAIN 0 ~ 20 BLUE GAIN 0 ~ 20 INDOOR OUTDOOR CHROMA 0 ~ 20 IMAGE IMAGE SHARPNESS 0 ~ 10 IMAGE OFF / H / V / H&V FREEZE OFF / ON E. -
Page 8: Special Functions
SPECIAL FUNCTIONS SPECIAL FUNC SHADING DET OFF / ON SHADING OFF / ON DEFECT DET OFF / ON DEFOG LEVEL 0 ~ 10 SYSTEM NTSC 30fps 25fps HD FORMAT 1080P / 720P OFF / ON CVBS OFF / ON COMM 1 ~ 255 BAUDRATE 2400 ~ 115200... -
Page 9: Specification
SPECIFICATION CBP6324DN-HD CVP9324DN-HD MODEL 1/3" Panasonic CMOS IMAGE SENSOR 2010(H) x 1108(V) = 2,227,080 (pixel) TOTAL PIXELS 1944(H) x 1092(V) = 2,122,848 (pixel) ACTIVE PIXELS 2.8~10mm Varifocal Lens Progressive SCANNING SYSTEM Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps) RESOLUTION Analogue : 700TVL Color : 1.0 lux , BW : 0.5lux... - Page 10 SPECIFICATION CBP6324DN-HD CVP9324DN-HD IMAGE 0 ~ 10 steps SHARPNESS Off / H / V / H&V MIRROR Off / On FREEZE x1 ~ x32 E.ZOOM Off / On Off / On Off / On DEFOG Off / Low / Middle / High / Auto...
- Page 11 DIMENSIONS CBP6324DN-HD 94.64 147.97 86.00...
- Page 12 DIMENSIONS CVP9324DN-HD 94.64 148.39 46.00...
- Page 13 HD CAMERA RANGE CBP6324DN-HD 1080p/720p 2.8~10mm Varifocal lens, Internal True Day Night (ICR), SVO, 148(ø) x 106mm, 12V DC / 24V AC CBP6324DNIR-HD 1080p/720p 2.8~10mm Varifocal lens, True Day Night (ICR), SVO, IR LED Internal Infrared 148(ø) x 106mm, 12V DC / 24V AC CVP9324DN-HD 1080p/720p 2.8~10mm Varifocal lens,...
