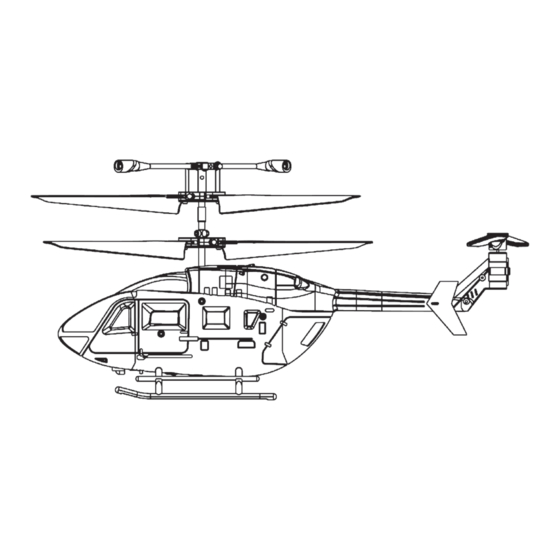

Summary of Contents for Liqui Moly EC 145

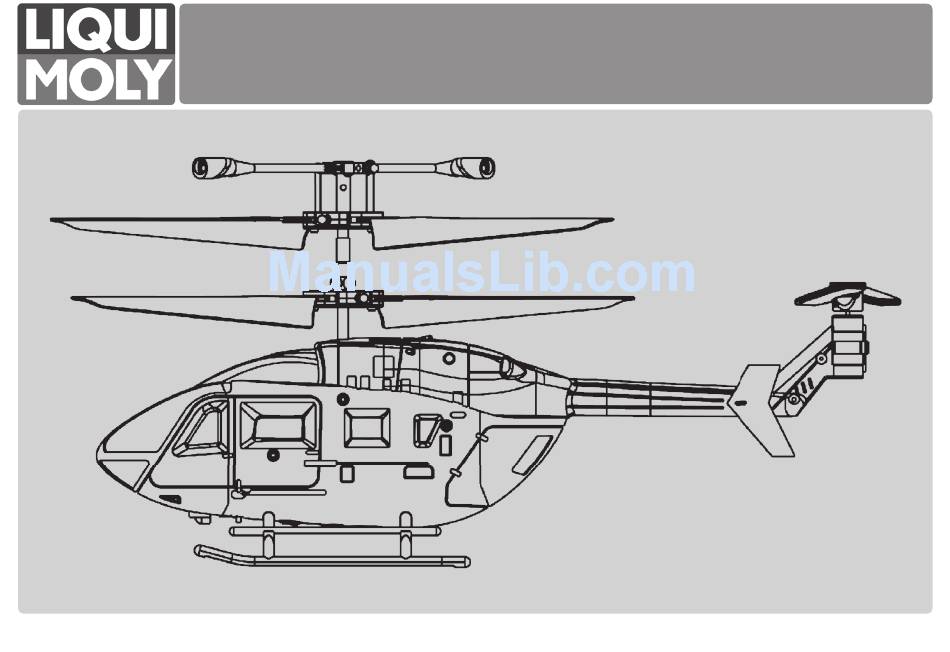

- Page 1 Operating Instructions EC 145 LIQUI MOLY 2.4 GHz LM001001 assisted by robbe Modellsport GmbH & Co. KG...
-
Page 2: Table Of Contents
Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Explanation of specialist Contents Page terms: Explanation of specialist terms Contents Motor speed ("Throttle"): Introduction / Pre-flight checklist This controls the model's climb and descent. Safety Notes 4, 5... -
Page 3: Introduction Pre-Flight Checklist
Helicopter of scale Its sleek looks, easily mastered flying characteristics and robust technology make our appearance EC145 LIQUI MOLY the ideal first step in indoor model helicopter flying. Qualification: Beginner Flying conditions:... -
Page 4: Safety Notes
Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Be sure to read these Safety Notes before you assemble Do not stand close to the hazard area around rotating your model. Always keep to the procedures and settings re- parts when an electric motor is connected to the flight commended in the instructions. - Page 5 Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Operating the model Insurance Ground-based models are usually covered by standard personal Caution - injury hazard: third-party insurance policies. In order to fly model aircraft you Please keep your model helicopter - including small co-...
- Page 6 Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Specification: Main rotor diameter: approx. 180 mm Tail rotor diameter: approx. 40 mm Length: approx. 200 mm Height: approx. 105 mm Weight: approx. 40 g RC functions: Pitch-axis, yaw, climb / descent...
- Page 7 Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Description of transmitter functions Inserting the dry cells This transmitter sends the control signals to the helicopter using the 2.4 GHz frequency band. Up to 75 different 2.4 GHz models can be in the air simultaneously without any interference occurring between them.
- Page 8 Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Charging the flight battery It is absolutely essential to give the flight battery a full charge before flying the co-axial model helicopter for the first time. There are two possible methods of recharging the pack: a) Charging using the USB lead (Fig.
-
Page 9: Safety Notes Regarding Lipo Batteries
• The fluid electrolyte can also be removed from clothing and other objects by rinsing with copious amounts of water. LIABILITY EXCLUSION Since robbe Modellsport and Liqui Moly are not in a position to monitor the handling of these batteries, we expressly deny all liability and guarantee claims where the batteries have been incorrectly charged, discharged or handled. -
Page 10: Control Functions Of The Ec145 Liqui Moly Rtf
Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Control functions of the EC145 LIQUI MOLY RTF Climb and descent Forward and reverse Rotate left and right Trim left / right... -
Page 11: Preparations For The First Flight
Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Preparations for the first flight Operating the PSU It is important to keep to the following se- Ideally the first flight should take place in a large indoor space devoid of obstructions. -
Page 12: Flying
Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Flying 1. Switch the helicopter and transmitter on (see paragraph "Ope- rating the model" on page 11). 2. Place the helicopter on a horizontal surface in front of you, with the tail pointing towards you. -
Page 13: Conformity Declaration
Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Conformity Declaration in accordance with the law regarding radio apparatus and telecommunications equipment (FTEG) and Directive 1999/5/EG (R&TTE) and Directive 2011/65/EU (RoHS2 – directive) robbe Modellsport GmbH & Co. KG, Metzloser Strasse 38... - Page 14 Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Measures for the efficient use of the radio frequency spectrum Aerial interface for radio equipment in accordance with § 3 (2) (Article 3 (2)) EN 300 440-2 V1.4.1 Harmonised norms employed...
- Page 15 Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 Conformity Declaration in accordance with Directive RL 2004/108/EG (electro-magnetic compliance) and Directive 2011/65/EU (RoHS2 – directive) robbe Modellsport GmbH & Co. KG, Metzloser Strasse 38 Manufacturer / responsible individual...
- Page 16 Operating Instructions - EC145 LIQUI MOLY RTF 2.4 GHz No. LM001001 This symbol means that you should dispose of electrical and electronic equipment separately from the household waste when it reaches the end of its useful life. Take your unwanted equipment to your local council collection point or recycling centre. This requirement applies to member countries of the European Union as well as other non-European countries with a separate waste collection system.
