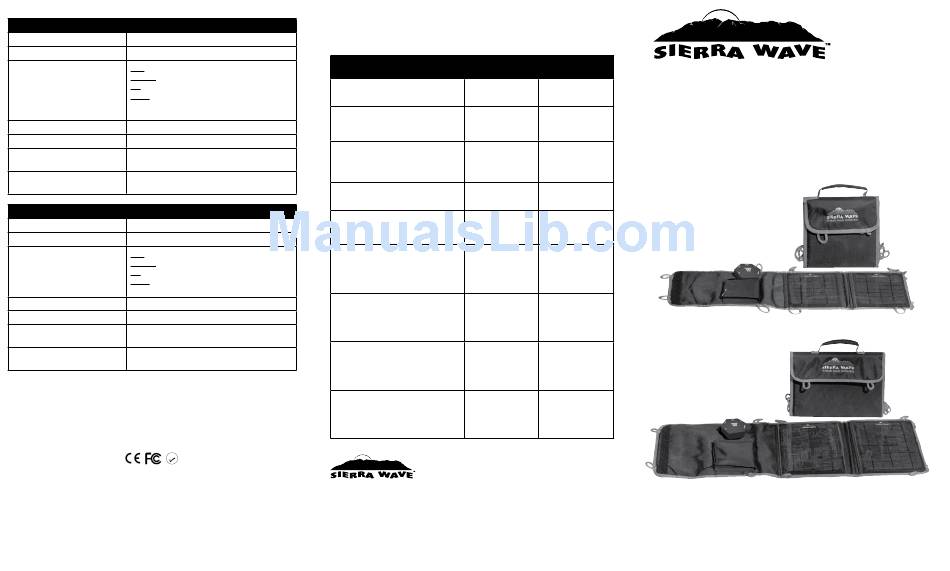

Sierra wave 5-Watt Solar Collectors Operating Instructions

SPECIfICATIONS
#9505 5-Watt Solar Collector
Solar Cells 5 watt monocrystalline
Fabric Durable weather and UV resistant Nylon
DC Output Working Power: 15V: 15V -15.5V DC/0.32 amp max
5V USB: 4.7V - 5.3V DC/0.68 amp max
Note: power ranges are a guideline and based
6V: 5.6V- 6.2V DC/0.65 amp max
on a bright, sunny day and 100,000 LUX. Actual
Chain: The combined power output will increase
power output will vary depending on available
50-75% with 2 units chained or 100-125%
sunshine and the device being charged.
with 3 units chained together.
Operating Temperature 32ºF - 120ºF
Weight 16 oz.
Dimensions 25.75" x 7.5" unfolded
7.7" x 7.5" folded
Accessories (included) 1 Barrel power adapter
1 Chainable cable
#9510 10-Watt Solar Collector
Solar Cells 10 watt monocrystalline
Fabric Durable weather and UV resistant Nylon
DC Output Working Power: 15V: 15V -15.5V DC/0.62 amp max
5V USB: 4.7V - 5.3V DC/1.5 amp max
Note: power ranges are a guideline and based
6V: 5.6 V- 6.2V DC/1.2 amp max
on a bright, sunny day and 100,000 LUX. Actual
Chain: The combined power output will increase
power output will vary depending on available
50-75% with 2 units chained together.
sunshine and the device being charged.
Operating Temperature 32ºF - 120ºF
Weight 28 oz.
Dimensions 29" x 11.5" unfolded
8.25" x 11.5" folded
Accessories (included) 1 Barrel power adapter
1 Chainable cable
RoHS
COMPLIANT
ChARGING DATA
The following is meant as a guideline based on optimum sunshine. Actual charge rates will
vary depending on available sunshine and the device being charged. Unplug your device
from the Solar Collector when a full charge is achieved or not in use.
Device 9505 5-Watt
Solar Collector
7403 Ray 'N Go Battery Cell 6-8 Hours
Use the USB adapter provided with #7403 and connect
to the 5V USB port
9614 14-Watt Power Hub 6-8 Hours
Use the 12V vehicle charger provided with #9614
and the Barrel power adapter provided with the solar
collector and connect to the 6V port
9660 60-Watt Power Cell Not recommended
Use the 12V vehicle charger provided with #9660 under 10 watts
and the Barrel power adapter provided with the solar
capacity. Use 2 or
collector and connect to the 15V port
more 5-Watt units.
7451 Solar Lantern 2-3 Hours
Use the USB cable provided with the #7451 and
connect to the 5V USB port
6985/6986 Spotlight/Power Pod 3-5 Hours
Use the 12V vehicle charger provided with #6985 or
#6986 and the Barrel power adapter provided with the
solar collector and connect to the 6V port
Cell Phone/Smart Phone 4-8 Hours (depending
For optimum charging use the 5V USB port and your on device)
phone's USB charger. You may also use your phone's
12V vehicle charger and the Barrel power adapter
provided with the solar collector and connect to the
6V port.
MP3 Player/iPod 3-5 Hours (depending
For optimum charging use the 5V USB port and your on device)
device's USB charger. You may also use your device's
12V vehicle charger and the Barrel power adapter
provided with the solar collector and connect to the
6V port.
GPS 4-8 Hours (depending
For optimum charging use the 5V USB port and your on device)
device's USB charger. You may also use your device's
12V vehicle charger and the Barrel power adapter
provided with the solar collector and connect to the
6V port.
eReader/Tablet/iPad Not recommended
For optimum charging use the 5V USB port and your under 10 watts
device's USB charger. You may also use your device's
capacity. Use 2 or
12V vehicle charger and the Barrel power adapter
more 5-watt units.
provided with the solar collector and connect to the
6V port.
Aervoe Industries, Inc.
Gardnerville, NV 89410 • (800) 227-0196
www.aervoe.com • mailbox@aervoe.com
Sierra Wave is a registered trademark of Aervoe Industries, Inc.
CS:5/12
9510 10-Watt
Solar Collector
5-Watt & 10-Watt
3-4 Hours
Solar Collectors
3-4 Hours

OPERATING INSTRUCTIONS

8-10 Hours
1-2 Hours
3-5 Hours (limited by
device charge rate)
5-Watt Solar Collector
2-4 Hours (depending
on device)
2-4 Hours (depending
on device)
3-5 Hours (depending
on device)
10-12 hours
10-Watt Solar Collector
(depending on
device)
