Linear DMC1 Finish-Out Instructions page 10

Mounting in a Master Station Only Installation
When the DMC1 Master Station is used without the optional
CD/MP3 Player, the DMC1 mounts inside the DMC1H wall
housing.
Follow these steps for mounting the Master Station.
1. Verify that the circuit breaker controlling the power to the wall
housing transformer is OFF.
2. Plug the connector on the DMC1 Master Station's wiring harness into
the connector on the TE5D power transformer.
3. Secure the DMC1 Master Station to the wall housing using the two
long screws provided (see Figure 21).
4. Install the speaker grille onto the right side of the DMC1 Master
Station. BE CAREFUL NOT TO PRESS IN THE CENTER OF THE
GRILLE! Only press around the edges.
Mounting the Master with the Optional DMCMP3 Player
When the optional DMCMP3 Player is included, the DMC1
Master Station and the DMCMP3 Player mount inside the
DMC1HC combination wall housing.
Follow these steps for mounting the Master Station and
CD/MP3 Player:
1. Verify that the circuit breaker controlling the power to the wall
housing transformers is OFF.
2. Insert one end of the CD/MP3 Player interface cable into the CD
interface connector on the DMC1 Master Station. This connector is
located in the center of the DMC1 Master Station's middle circuit
board approximately behind the two TUNE buttons (see Figure 22).
3. Insert the CD audio cable's BLACK RCA plug into the CD L jack on
the DMC1 Master Station, then insert the cable's RED RCA plug into
the CD R jack on the DMC1 Master Station (see Figure 23).
4. Plug the connector on the DMC1 Master Station's wiring harness into
the connector on the TE5D power transformer.
5. Position the DMC1F combination mounting frame over the DMC1HC
wall housing with the larger opening toward the top.
6. Be sure to route the CD interface and audio cables in through the top
opening of the DMC1F frame then down and out the lower opening
in the DMC1F frame.
7. Secure the DMC1 Master Station to the wall housing using the two
long screws provided (see Figure 24). DO NOT OVERTIGHTEN THE
SCREWS THE FRAME MIGHT DISTORT OR CRACK!
8. Install the speaker grille onto the right side of the DMC1 Master
Station. BE CAREFUL NOT TO PRESS IN THE CENTER OF THE
GRILLE! Only press around the edges.
8
BE SURE THE AREA
IN THE WALL HOUSING
BEHIND THE MASTER
IS CLEAR OF CABLES
ATTACH THE MASTER
TO THE WALL HOUSING
WITH TWO SCREWS

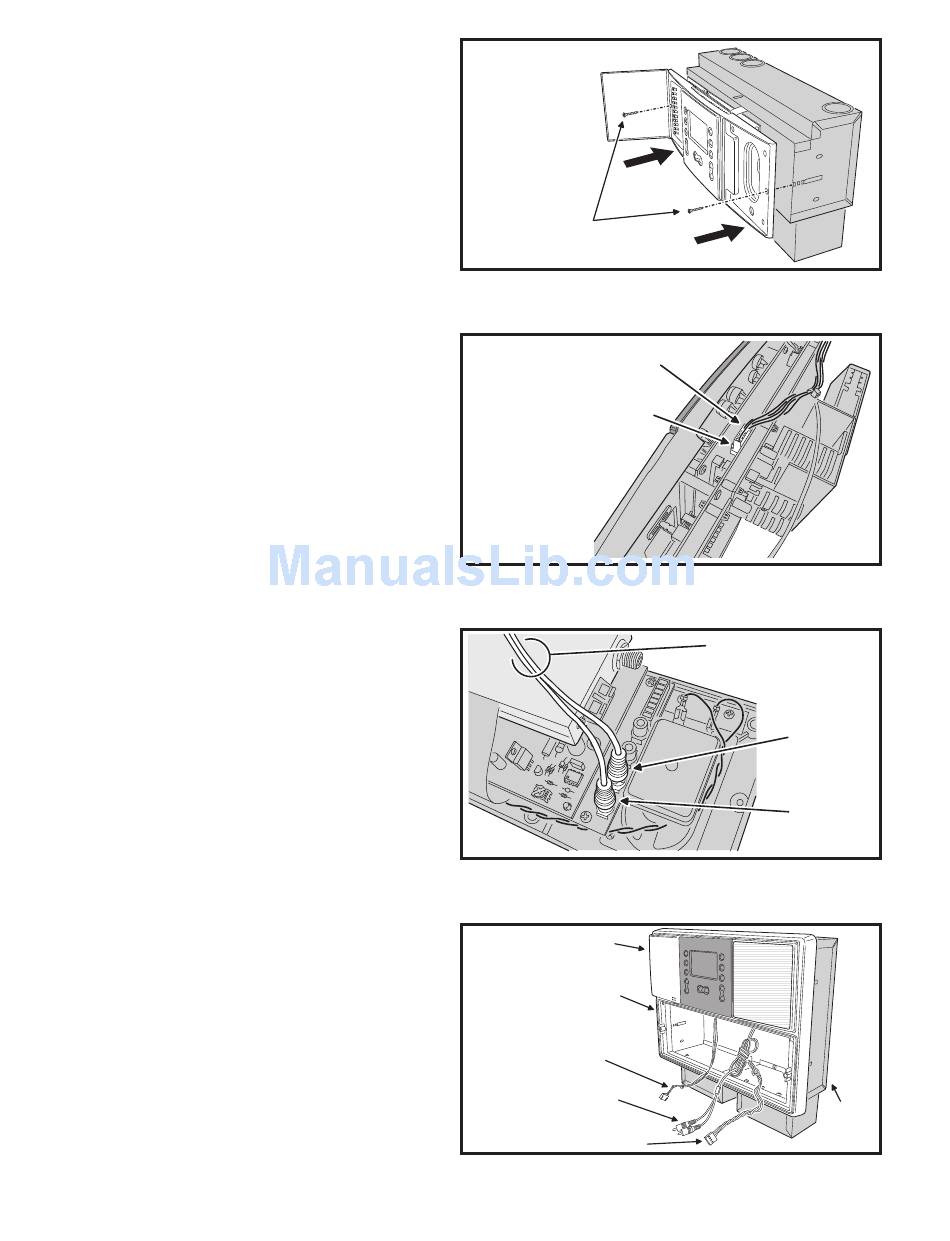

Figure 21. Master Station Only in DMC1H Wall Housing
PLUG CD INTERFACE
CABLE INTO MASTER
THE CONNECTOR LOCATION IS:
BOTTOM OF MASTER,
MIDDLE CIRCUIT BOARD,
BEHIND THE TUNE BUTTONS
Figure 22. CD/MP3 Player Interface Connection on Master
Figure 23. CD Input Jacks on Master Station
DMC1 MASTER MOUNTED
INTO DMC1HC WALL HOUSING
DMC1F COMBINATION
MOUNTING FRAME
CD/MP3 PLAYER
INTERFACE CABLE
CD/MP3 PLAYER
AUDIO CABLES
CD/MP3 PLAYER
POWER CABLE
Figure 24. DMC1 & DMC1F Frame Ready for CD/MP3 Player
PLUG CD AUDIO CABLES
INTO LEFT & RIGHT
CD AUDIO INPUT JACKS
RIGHT
CD AUDIO
INPUT
LEFT
CD AUDIO
INPUT
DMC1HC
WALL
HOUSING
