Summary of Contents for BSD Ramasoon BS910T

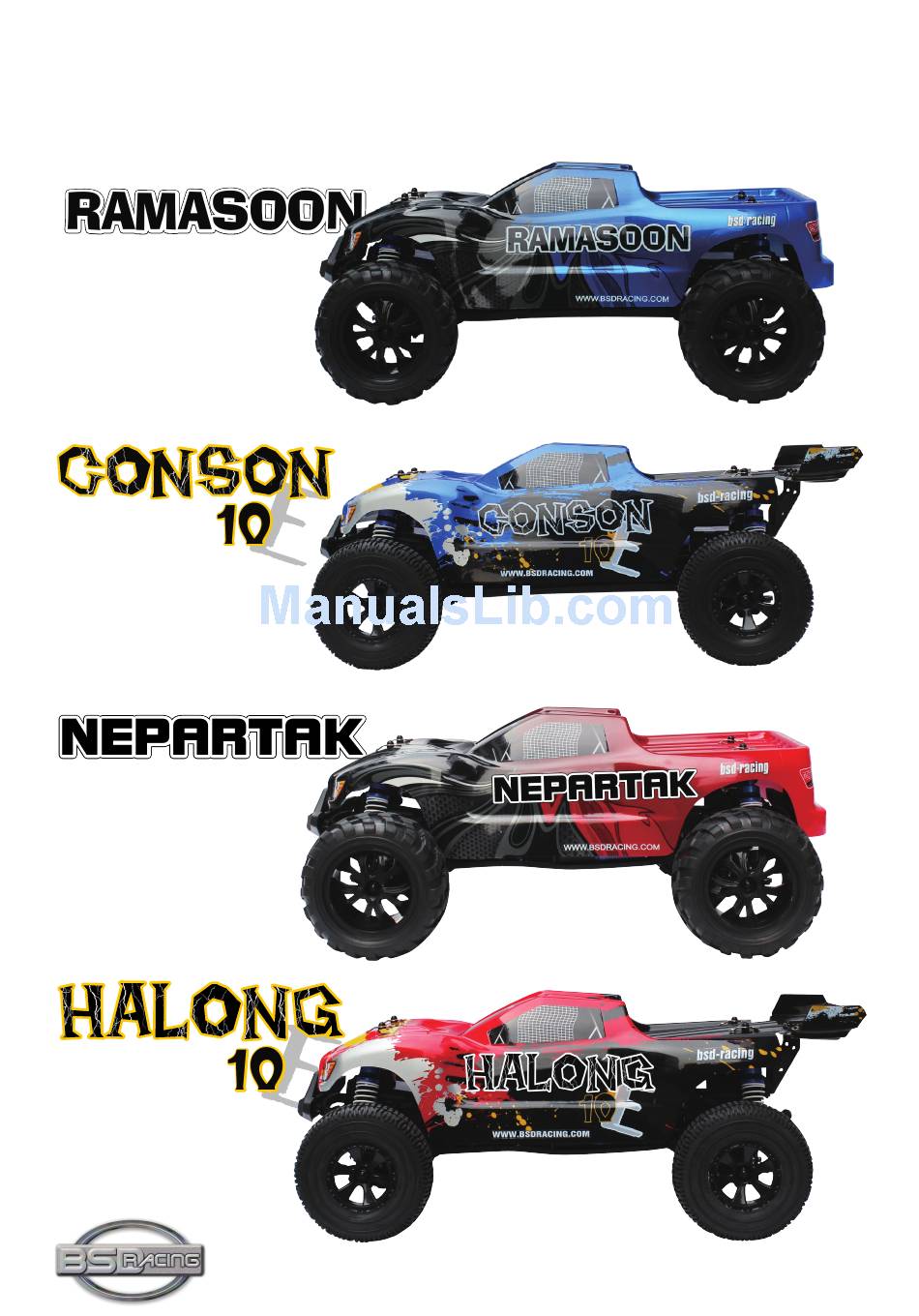

- Page 1 INSTRUCTION MANUAL BS910T 1/10 BRUSHLESS TRUCK BS912T 1/10 BRUSHLESS TRUGGY BS913T 1/10 BRUSHLESS TRUCK BS914T 1/10 BRUSHLESS TRUGGY www.bsdracing.com...
- Page 4 TRANSMITTER SPECIFICATIONS TR TYPE: MADGEAR-TRV1 Channel: 3CH Frequency: 2.4GHz Use DC: (4.0V-8.6V); ≤110mA N.W.: 320g RX TYPE: MADGEAR-RXV1 Channel: 3CH Frequency: 2.4GHz 162mm DC: (4.0V-8.6V); ≤20mA N.W.: 8g R/F Power: 20dBm; Sensititity: 1024 Modulation: 2-FSK; Frequency Signal: FHSS Specifications: One Set(200*165*105mm) NOTE: Install the batteries in correct polarity.
- Page 5 AUX CHANNEL(3CH) Press the CH3 button once, servo turns 90 degrees, press again, servo turns back 90 degrees. NOTE: During the binding process, the CH3 button functions as a bind button and does not provide channel 3 functionality. STEERING DUAL RATES ADJUSTMENT (ST.D/R) Adjust the dual rate for steering by turning the ST D/R knob.
-
Page 6: Parts List
PARTS LIST BS910T & BS912T COMMON PARTS BS701-004B Shock Absorber Unit BS910-001 Fr/Rr. Bumper Unit (Metal Cap and ring ) 2pcs BS910-002 Brace Unit BS501-067 B head hex fine pitch screws HM4*22 BS910-003 Fr. Buffer Block Unit 12pcs BS910-004 Rim Hub With Pin 4pcs BS810-034 Pin 3*70... - Page 7 PARTS LIST BS913T & BS914T COMMON PARTS BS701-004B Shock Absorber Unit BS910-001 Fr/Rr. Bumper Unit (Metal Cap and ring ) 2pcs BS910-002 Brace Unit BS501-067 B head hex fine pitch screws HM4*22 BS910-003 Fr. Buffer Block Unit 12pcs BS910-004 Rim Hub With Pin 4pcs BS810-034 Pin 3*70...
- Page 8 BS910T&BS912T EXPLODED VIEW 804-001...
- Page 9 BS913T&BS914T EXPLODED VIEW 804-001...
- Page 10 BS910T & BS912T COMMON PARTS BS910-004 Rim Hub With Pin BS910-001 Fr/Rr. Bumper Unit BS910-002 Brace Unit BS910-003 Fr. Buffer Block Unit BS910-005 C Hubs Unit L 4pcs BS910-006 Transverse Drive BS910-008 Lower Suspension Arm BS910-009 Fr. Center BS910-010 Fr. Steering linkage set BS910-007 Upper Arm Unit Shaft Set...
- Page 11 BS910T & BS912T COMMON PARTS BS910-038 Fr. Chassis BS910-039 Middle Chassis BS910-040 Rr. Chassis BS810-006B Brace Mount BS810-025 Rr.Left/Right Bracket BS810-058 Bumper BS810-059 Bumper brace BS810-061 Brace BS810-060 Body Mount BS810-045 Joint B 2pcs BS501-067 B head hex fine pitch BS903-014 Ball Bearing(6*12*4) screws HM4*22...
- Page 12 BS910T BS910-041 Tire unit (plastic) BS910-015 Body 2pcs BS912T BS913-013 Body BS804-001 Tire Unit 2pcs BS910-030 Rear Wing Mount BS709-026 Rear Wing UPGRADE PARTS BS910-043 11.1V 3200Mah B7056W 60A ESC BS910-042 KV 3000 Motor Unit Lipo battery...
- Page 13 BS913T & BS914T COMMON PARTS BS910-004 Rim Hub With Pin BS910-001 Fr/Rr. Bumper Unit BS910-002 Brace Unit BS910-003 Fr. Buffer Block Unit 4pcs BS910-005 C Hubs Unit L BS910-006 Transverse Drive BS910-010 Fr. Steering linkage set BS910-008 Lower Suspension Arm BS910-007 Upper Arm Unit 2pcs...
- Page 14 BS913T & BS914T COMMON PARTS BS501-067 B head hex fine pitch screws HM4*22 12 pcs BS810-038 Flat Hex Screw fine pitch screws 2.5*12 12pcs BS501-058 Flat Hex Screw fine pitch BS913-012 Serve Case screws 2.5*12 12pcs BS810-058 Bumper BS913-014 Wire Mount Unit BS913-015 Fr.
- Page 15 BS913T BS910-041 Tire unit (plastic) BS910-015 Body 2pcs BS914T BS913-013 Body BS804-001 Tire Unit 2pcs BS910-030 Rear Wing Mount BS709-026 Rear Wing UPGRADE PARTS BS910-043 11.1V 3200Mah B7056W 60A ESC BS910-042 KV 3000 Motor Unit Lipo battery...
- Page 17 BSD Racing http://www.bsdracing.com PRINTED IN CHINA NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS...
