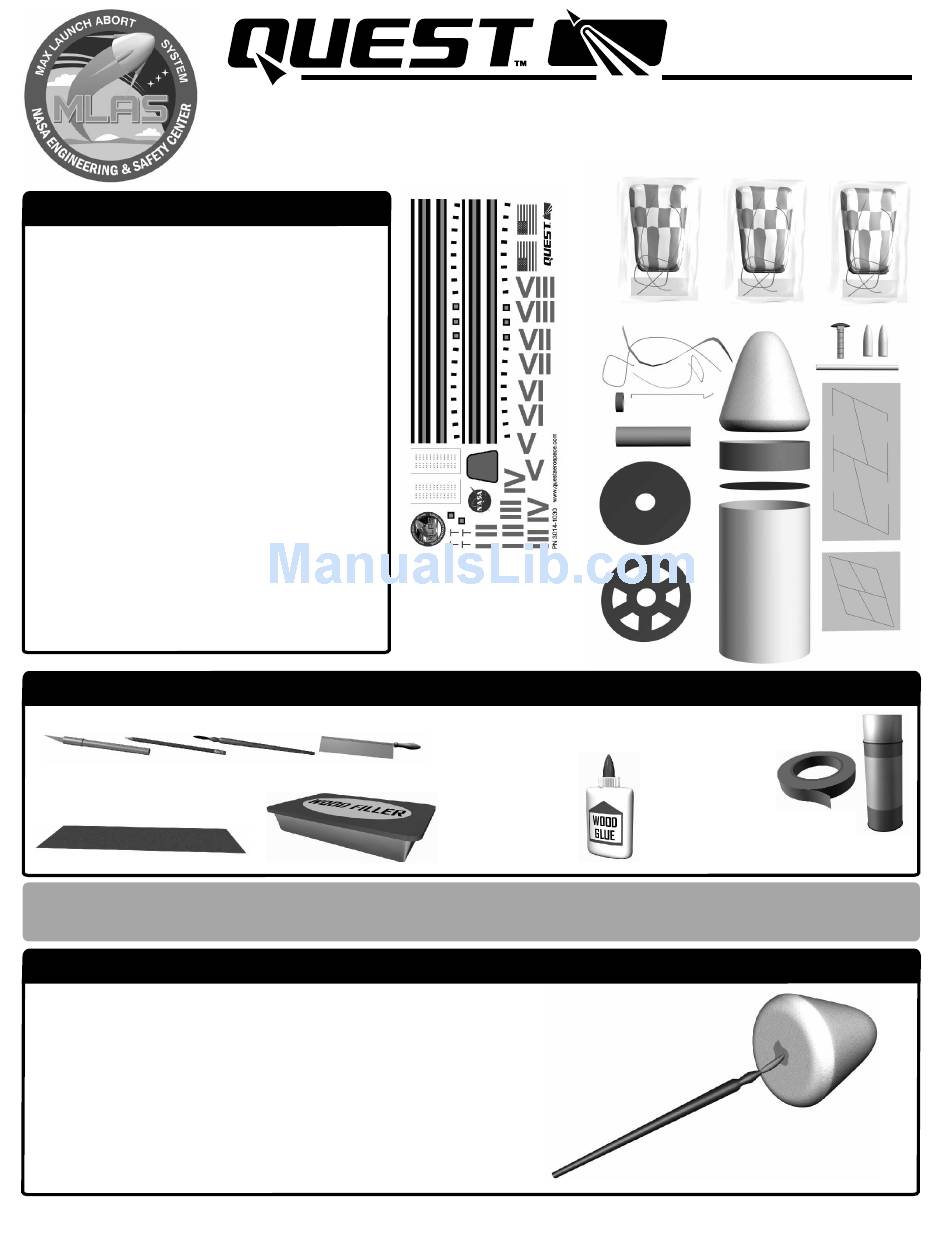

Parts List
A
11820 - Body Tube 3.5 Diam x 5.5" Long
B
11824 - Orange Capsule Base Shoulder Ring
C
16032 - Laser-cut Ring motor mount rear
D
16033 - Laser-cut Ring motor mount forward
E
16034 - Laser-cut Ring nose cone shoulder
F
FNC2 - Foam Capsule
G
10303 - Yellow Motor Mount Tube
H
49000 - Motor Clip
I
14000 - Blue Thrust Ring
J
50051 - Kevlar* Cord 18"
K
50011 - White Elastic Shock Cord 18"
L
50061 - Kevlar* Nose Cord
M
82302 - Parachute Sub-assy (3)
N
33069 - Laser-cut Balsa Fin Set - Small
O
33070 - Laser-cut Balsa Fin Set - Large
P
10008 - 3 inch launch lug
Q
45010 - Lag Bolt Nose Weight
R
3014-1010 - Kit Instructions
S
3014-1030 - Decal
T
FNC1 - MMX Foam Nose Cone (2)
Things you'll need to assemble this kit
Hobby Knife, Pencil, Paint Brush and Razor Saw
Sandpaper (220 or 320 & 400 Grit)
Elmer's Carpenter's Wood Filler
BEFORE STARTING ANY ASSEMBLY READ THROUGH ALL THESE INSTRUCTIONS. IT IS BEST TO TEST FIT
ALL PARTS BEFORE APPLYING ANY GLUE. READ AND FOLLOW THE N.A.R. MODEL ROCKET SAFETY CODE.
Information about Foam Parts, Paint and Fillers
Many brands of Spray Paint are not "Foam Safe" and may melt the foam. ALWAYS test
the brand you intend to use FIRST before spraying the entire Foam part. We recommend
testing your paint on the base of the Large Foam Capsule before starting assembly (it
will get covered up by the Orange Shoulder and Cap Ring in STEP 13.) Most brands of
"Acrylic" or water based paint will not harm the Foam.
Only use water based fillers such as Elmer's Carpenters Wood Filler
on your Foam Parts. Elmer's Carpenters Wood Filler is a thick paste,
so we recommend thinning it with about 50% water to 50% paste.
MLAS
MLAS
Prod. No. 3014
Max
Max
Launch
Launch
Abort
Abort
System
System
S
*Kevlar is a
registered
trademark of
Dupont
Wood Glue
Alphatic Resin glues
work best such as
TITEBOND or
ELMER'S
CARPENTER'S
WOOD GLUE
Flying Model
Rocket Kit
Assembly
Assembly
Instructions
Instructions
M
L
F
K
J
I
H
G
B
E
D
A
C
Tape & Paint
Scotch Magic
Tape or Paper
Masking Tape
and Foam Safe
Spray Paint.
(See below for
Foam Safety Info)
Test on flat end of cone .
Q
T
P
O
N
PAGE01
