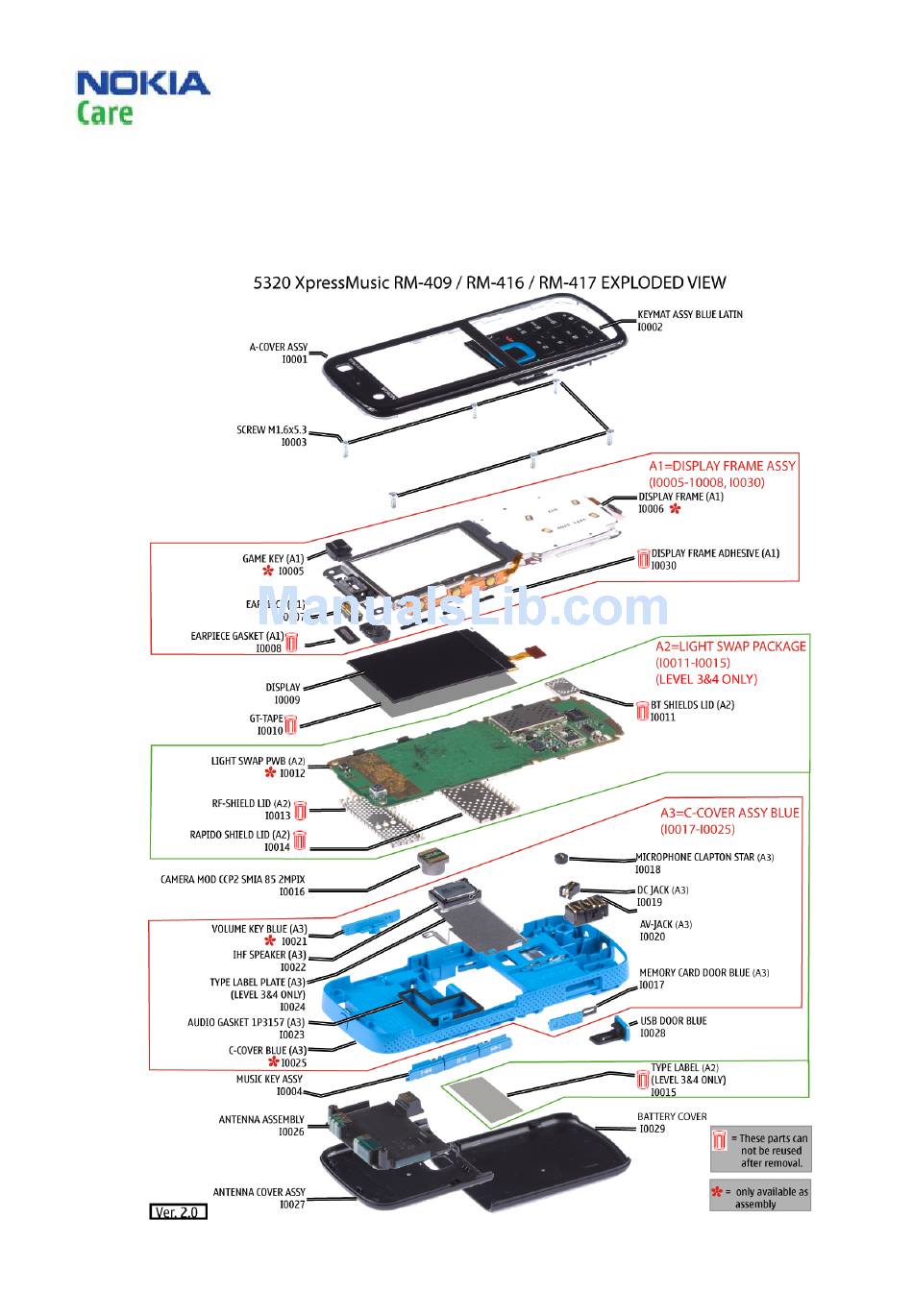

7. EXPLODED VIEW

See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
Note: The 2G variant does not have a front camera, so the light swap PWB is different than the
one pictured below.
9
Issue 4
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
5320 XpressMusic RM-409/416/417
Service Manual Level 1&2
