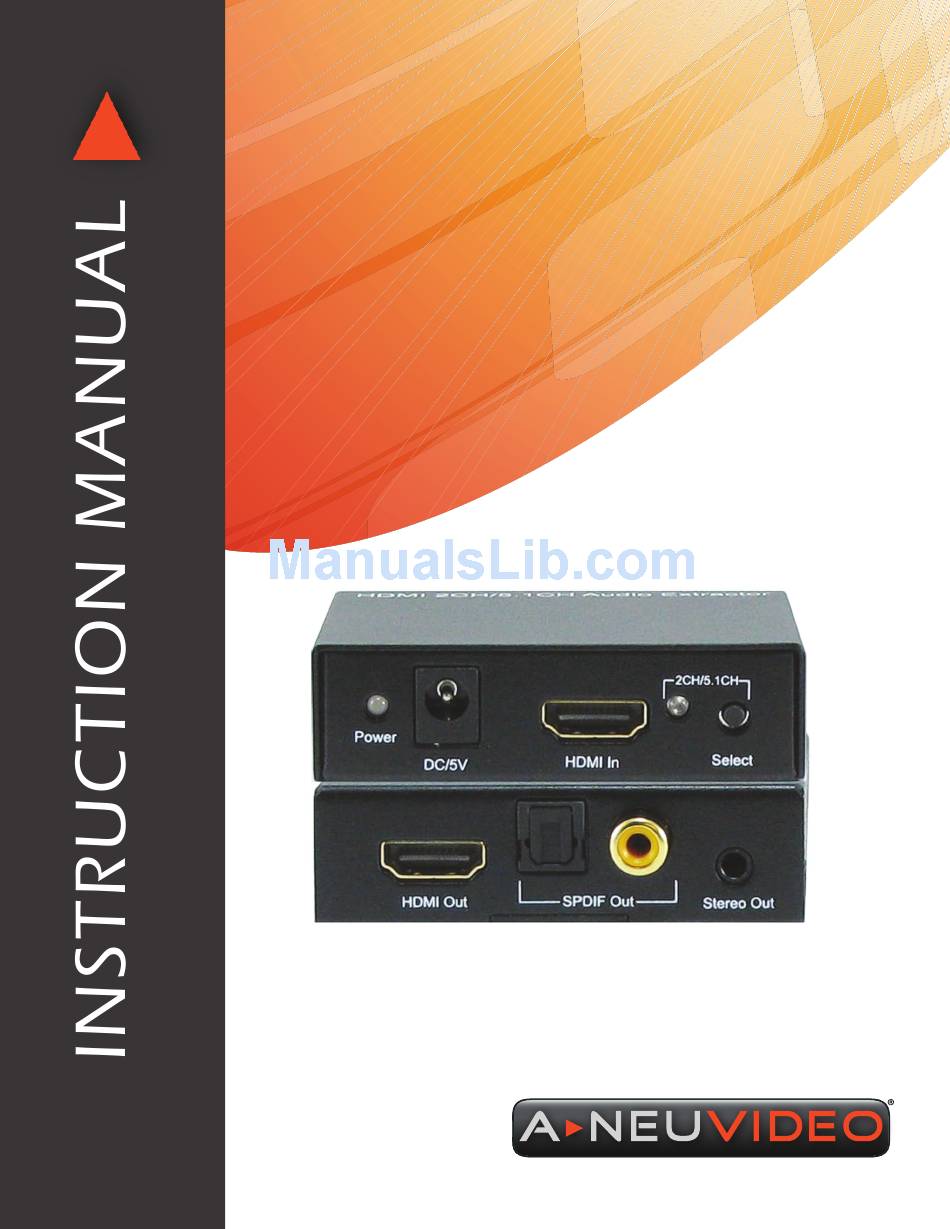

- Page 1 ANI-5.1CH HDMI 2CH/5.1CH Audio Extractor A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V2.0 AUDIO / VIDEO MANUFACTURER...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Safety Precautions
INTRODUCTION • Do not allow anything to rest on the power cabling or allow any ANI-5.1CH features S/PDIF Optical Toslink, Digital Coaxial, and weight to be placed upon it or any person walk on it. analog 3.5mm stereo output ports, allowing you to connect to the •... -
Page 4: Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES This HDMI Audio Splitter has many features that enable it to perform in a superior manner. Among those features you will find: • Supports audio output simultaneously: SPDIF and Stereo. • Supports 2.0CH/5.1CH audio switch. •... -
Page 5: Front Panel
NEUVIDEO FRONT AND BACK PANEL FRONT PANEL Power and Active LED: With a double color LED when supplying power to this unit the light is red and when it starts to work normally the light is purple (red and blue mixed). DC/5V: Connect this port to power adapter. -
Page 6: Connection Diagram
NEUVIDEO CONNECTION AND OPERATION CONNECTION 1) Connect the input of this product to HDMI Source. 2) Connect the output of this product to HDMI Display. 3) Connect SPDIF or Stereo port to Amplifier Receiver. 4) Insert the DC side of 5V power supply into the unit and then connect the AC side of the power supply into the wall outlet. 5) Select the Audio output you want through pressing “2CH/5.1CH”... - Page 8 NEUVIDEO TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
