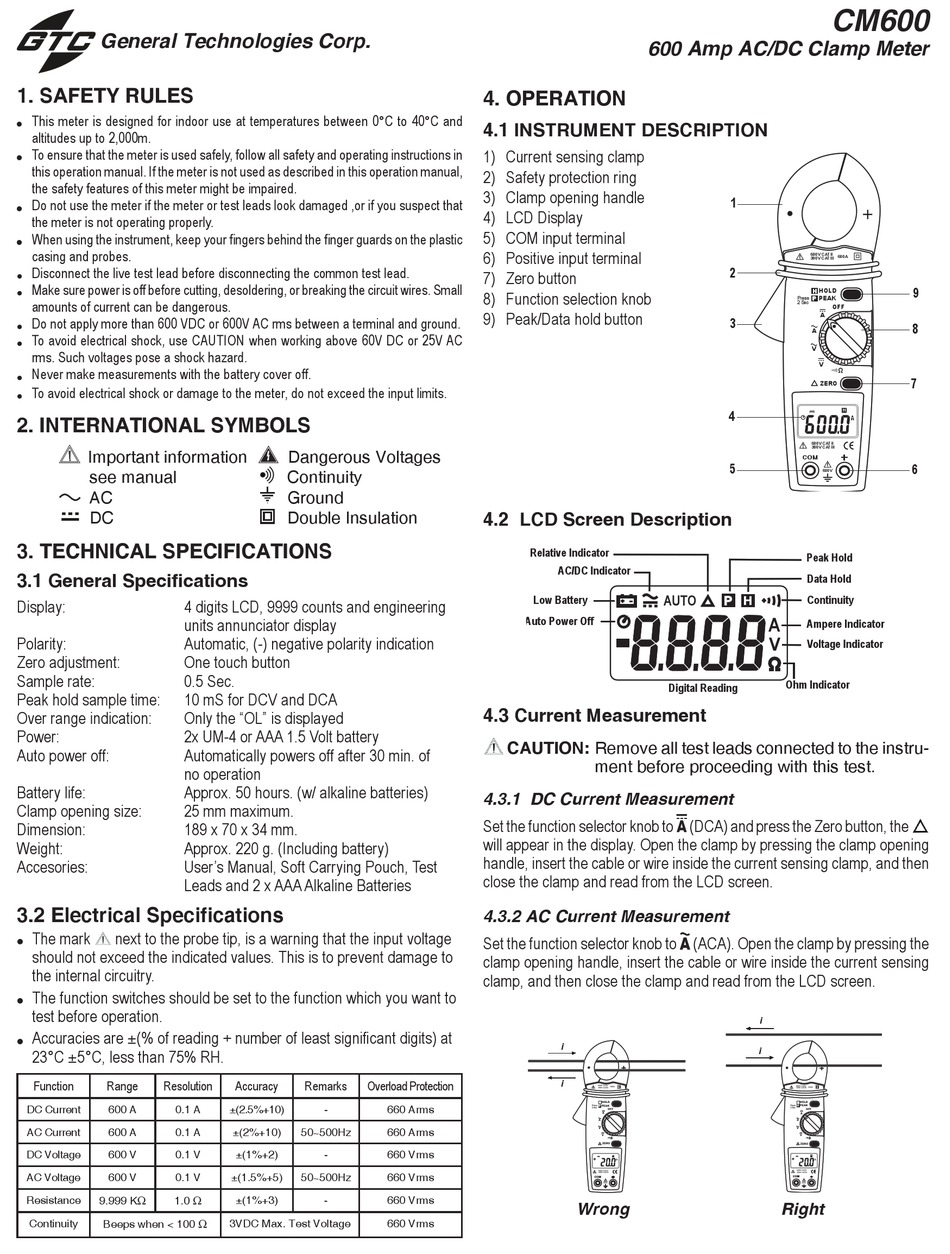

GTC CM600 User Manual

General Technologies Corp.
1. SAFE TY RULES
This meter is designed for indoor use at temperatures between 0°C to 40°C and
•
altitudes up to 2,000m.
• To ensure that the meter is used safely, follow all safety and operating instructions in
this operation manual. If the meter is not used as described in this operation manual,
the safety features of this meter might be impaired.
• Do not use the meter if the meter or test leads look damaged ,or if you suspect that
the meter is not operating properly.
• When using the instrument, keep your fi ngers behind the fi nger guards on the plastic
casing and probes.
• Disconnect the live test lead before disconnecting the common test lead.
• Make sure power is off before cutting, desoldering, or breaking the circuit wires. Small
amounts of current can be dangerous.
• Do not apply more than 600 VDC or 600V AC rms between a terminal and ground.
• To avoid electrical shock, use CAUTION when working above 60V DC or 25V AC
rms. Such voltages pose a shock hazard.
• Never make measurements with the battery cover off.
• To avoid electrical shock or damage to the meter, do not exceed the input limits.

2. INTERNATIONAL SYMBOLS

Important information
see manual
AC
DC

3. TECHNICAL SPECIFICATIONS

3.1 General Specifications

Display: 4 digits LCD, 9999 counts and en gi neer ing
units annunciator display
Polarity: Automatic, (-) negative polarity indication
Zero adjustment: One touch button
Sample rate: 0.5 Sec.
Peak hold sample time: 10 mS for DCV and DCA
Over range indication: Only the "OL" is displayed
Power: 2x UM-4 or AAA 1.5 Volt battery
Auto power off: Automatically powers off after 30 min. of
no operation
Battery life: Approx. 50 hours. (w/ alkaline batteries)
Clamp opening size: 25 mm maximum.
Dimension: 189 x 70 x 34 mm.
Weight: Approx. 220 g. (Including battery)
Accesories: User's Manual, Soft Carrying Pouch, Test
Leads and 2 x AAA Alkaline Batteries

3.2 Electrical Specifications

• The mark next to the probe tip, is a warning that the input voltage
should not exceed the indicated values. This is to prevent damage to
the internal circuitry.
• The function switches should be set to the function which you want to
test before operation.
• Accuracies are ±(% of reading + number of least signifi cant digits) at
23°C ±5°C, less than 75% RH.
Function Range Resolution
DC Current 600 A 0.1 A
AC Current 600 A 0.1 A
DC Voltage 600 V 0.1 V
AC Voltage 600 V 0.1 V
Resistance 9.999 K Ω 1.0 Ω
Continuity
Beeps when < 100
Dangerous Voltages
Continuity
Ground
Double Insulation
Accuracy Remarks Overload Protection
±(2.5%+10) -
±(2%+10) 50~500Hz
±(1%+2) -
±(1.5%+5) 50~500Hz
±(1%+3) -
Ω 3VDC Max. Test Voltage
4. OPERATION

4.1 INSTRUMENT DESCRIPTION

1) Current sensing clamp
2) Safety protection ring
3) Clamp opening handle
4) LCD Display
5) COM input terminal
6) Positive input terminal
7) Zero button
8) Function selection knob
9) Peak/Data hold button
4.2 LCD Screen Description
Relative Indicator
AC/DC Indicator
Low Battery
Auto Power Off

4.3 Current Measurement

CAUTION: Remove all test leads connected to the instru-

4.3.1 DC Current Measurement

Set the function selector knob to (DCA) and press the Zero button, the
will appear in the display. Open the clamp by pressing the clamp opening
handle, insert the cable or wire inside the current sensing clamp, and then
close the clamp and read from the LCD screen.

4.3.2 AC Current Measurement

Set the function selector knob to (ACA). Open the clamp by pressing the
clamp opening handle, insert the cable or wire inside the current sensing
clamp, and then close the clamp and read from the LCD screen.
�
�
660 Arms
660 Arms
660 Vrms
660 Vrms
660 Vrms
660 Vrms
600 Amp AC/DC Clamp Meter
1
2
3
4
5
AUTO
P H
Digital Reading
ment before proceeding with this test.
600V CATII
300V CATIII 600A
H HOLD
Press P PEAK
2 Sec
OFF
A
A
V
V
ZERO
P H
A
600V CATII
300V CATIII
���
600V
Wrong
CM600
600V CATII
300V CATIII 600A
9
HOLD
H
Press P PEAK
2 Sec
OFF
A
8
A
V
V
7
ZERO
P H
A
600V CATII
300V CATIII
COM
6
600V
Peak Hold
Data Hold
Continuity
A
Ampere Indicator
V
Voltage Indicator
Ohm Indicator
�
�
600V CATII
300V CATIII 600A
HOLD
H
Press P PEAK
2 Sec
OFF
A
A
V
V
ZERO
P H
A
600V CATII
300V CATIII
���
600V
Right
