Lindy 32569 User Manual

2 Port VGA Splitter Pro
User Manual
LINDY No. 32569
www.lindy.com
as you add further units further away from the video
signal source.
Note: If you connect a DDC type monitor to 'VGA
Out' port No. 1, all other monitors must be able to
support the highest resolution that the DDC monitor
can provide!
Technical Features:
Video bandwidth 350 MHZ
•
Resolution up to 2048 x 1536
•
Supports: VGA,
•
QXGA and Multi-sync
Improves signal quality over cable distances
•
up to 55m
Supports DDC, DDC2, DDC2B (Port1 only)
•
Cascadable
•
Full metal housing
•
Small form factor
•
Please note: we recommend using LINDY Premium
or Premium Gold cables in conjunction with our VGA
Splitter Pro range. Please visit our website to view
the full range
English
S-VGA, XGA, X-VGA,
Installation
Steps for a single stage installation:
1. Use a high quality HD15 Male/Female video
extension cable to connect the PC's video
port to the 'VGA In' port of the video splitter.
2. Use high quality HD15 Male/Male video
cables to connect the 'VGA Out' ports of the
video splitter to the monitors; unless your
monitors have got mounted video cables on
them in which case you would need video
extension cables.
3. Plug the power adapter into an AC source;
and then plug the power adapter cable into
the video splitter's power jack.
4. Power up the video splitter, power up the
monitors and power up the PC in that order.
Cascading:
To provide video display for more monitors than the
number of available 'VGA Out' ports on your video
splitter, additional video splitters can be cascaded.
Use a high quality HD15 Male / Female video
extension cable to connect an available 'VGA Out'
port on the higher level video splitter to the 'VGA In'
port of the lower level video splitter. Theoretically
there is no limit to the number of levels in the chain
but be aware that the signal quality may deteriorate

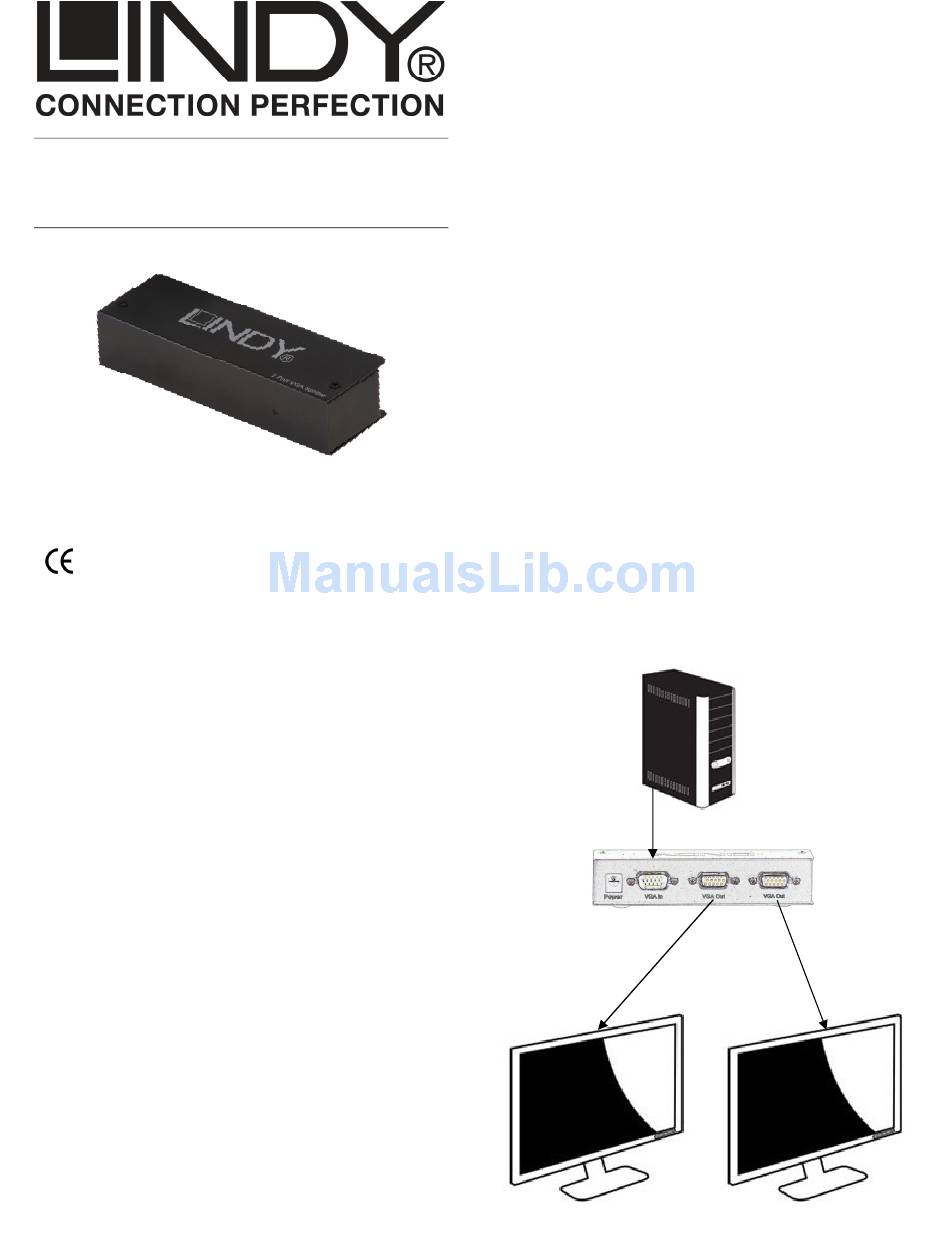

Typical Installation Example:
HD15 VGA Cable
from PC to "VGA
In" port
HD15 VGA
Cables from
"VGA Out" port
to monitors
