Summary of Contents for k9 lights PUP 25°

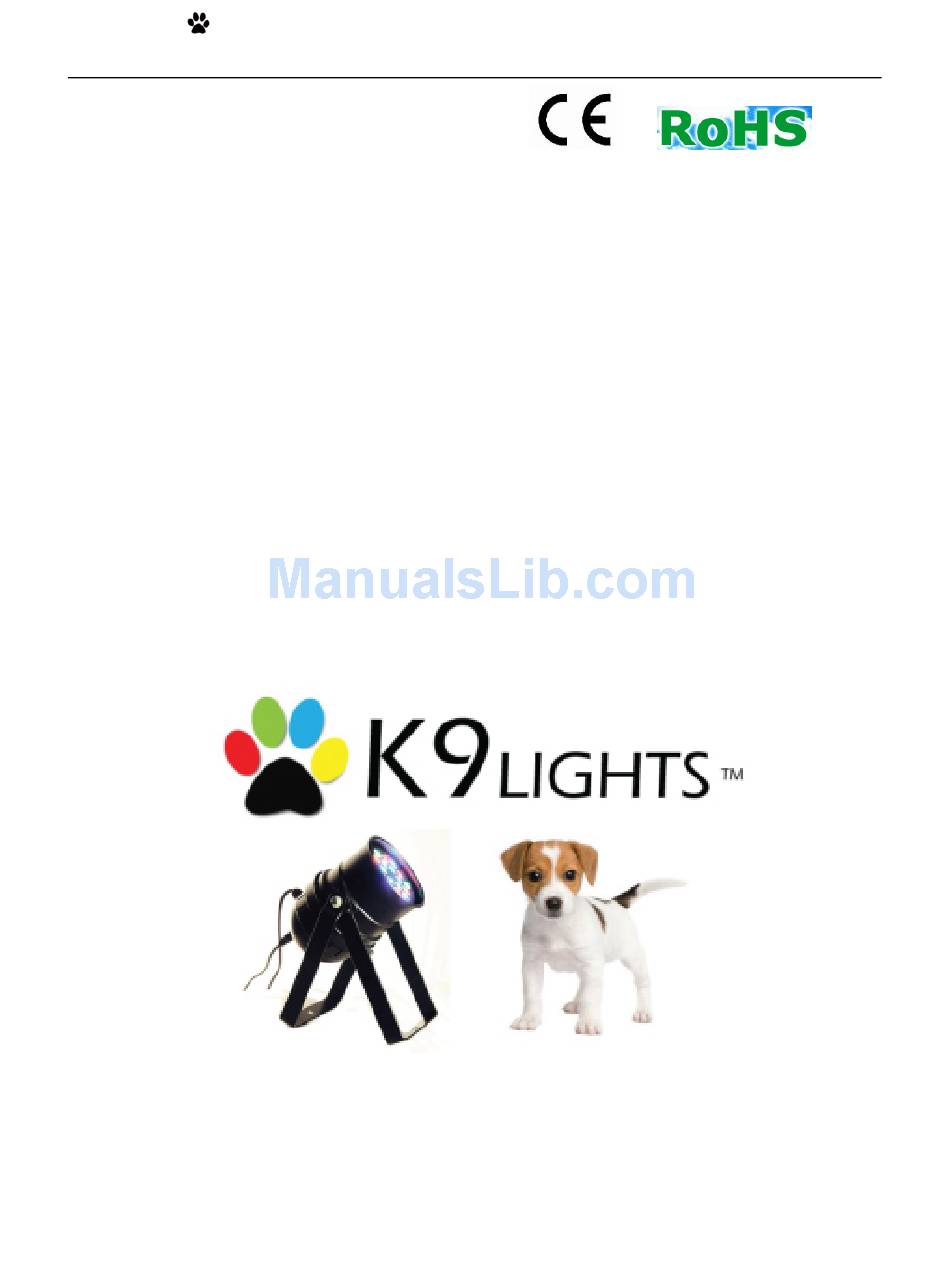

- Page 1 Lights www.k9lights.com USER MANUAL PUP 25° / PUP 45° LED PAR46 RGB 18x3W...
-
Page 2: Table Of Contents
Lights www.k9lights.com Contents Introduction ......................... 1 Safety Instructions ......................1 Dimensions ........................2 Features .......................... -
Page 3: Introduction
lights Introduction Thank you for purchasing a K9 “Pup”. Please read these instructions carefully before using or operating the fixture to avoid any possible damage or accidents. Product introduction The K9 Pup is an LED PAR 46 fixture with an aluminum shell. The Pup uses high power R, G, B LED color mixing to create a smooth, bright field of light. -
Page 4: Dimensions
lights Dimensions LED PAR46... -
Page 5: Features
lights Features High quality LED: low power consumption, bright 3 watt LED, even field and long life Flicker free for video. Fully dimmable 0 – 100% Adjustable rate strobe DMX controlled, addressable for the LED display ... -
Page 6: Display
lights Display DMX IN/OUT DMX IN DMX OUT LED display MENU UP DOWN ENTER 4 buttons MENU : access the menu or return to a previous menu option ENTER: select the current menu option UP: menu selection or parameter increments ... - Page 7 lights ”FLAS”: White color strobe FL00-FL15 speed adjustable ”rL”: Red LED: Adjusts r000-r255 (r255 is at full) ”gL”: Green LED: Adjusts g000- g255 (g255 is at full) ”bL”: Blue LED: Adjusts b000- b255 (b255 is at full) 2.
-
Page 8: Connecting Fixtures
lights Multiple fixtures can be operated simultaneously without a control board by connecting each fixture with DMX control cable and setting one fixture as “Master” and the others as “Slave”. The “Master” fixture will then synchronize with the “Slave” units. To use this feature, make sure there is nothing plugged into the “DMX IN”... - Page 9 lights ● Input voltage AC 100V-264V/47-63HZ ● Output voltage DC24V ● Power Consumption 54W 18*3W ● Lamp Type High Power LED(3W) ● Lamp Spec R(6PCS) G(6PCS) B(6PCS) ● Control Signal DMX512, master and slave ● Control mode stand alone/ DMX/ master and slave ●...
