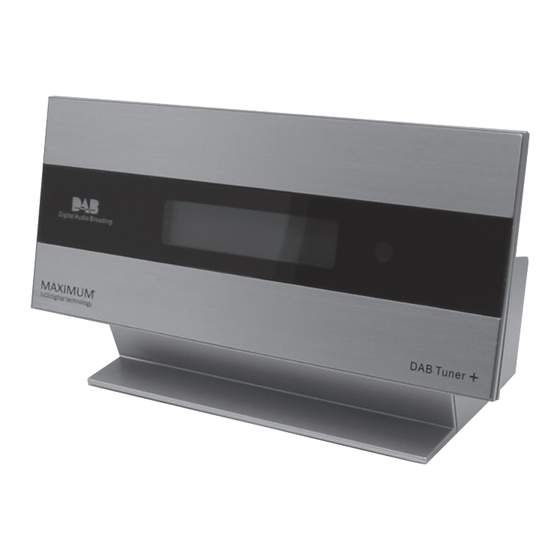

Summary of Contents for Maximum DAB Tuner +

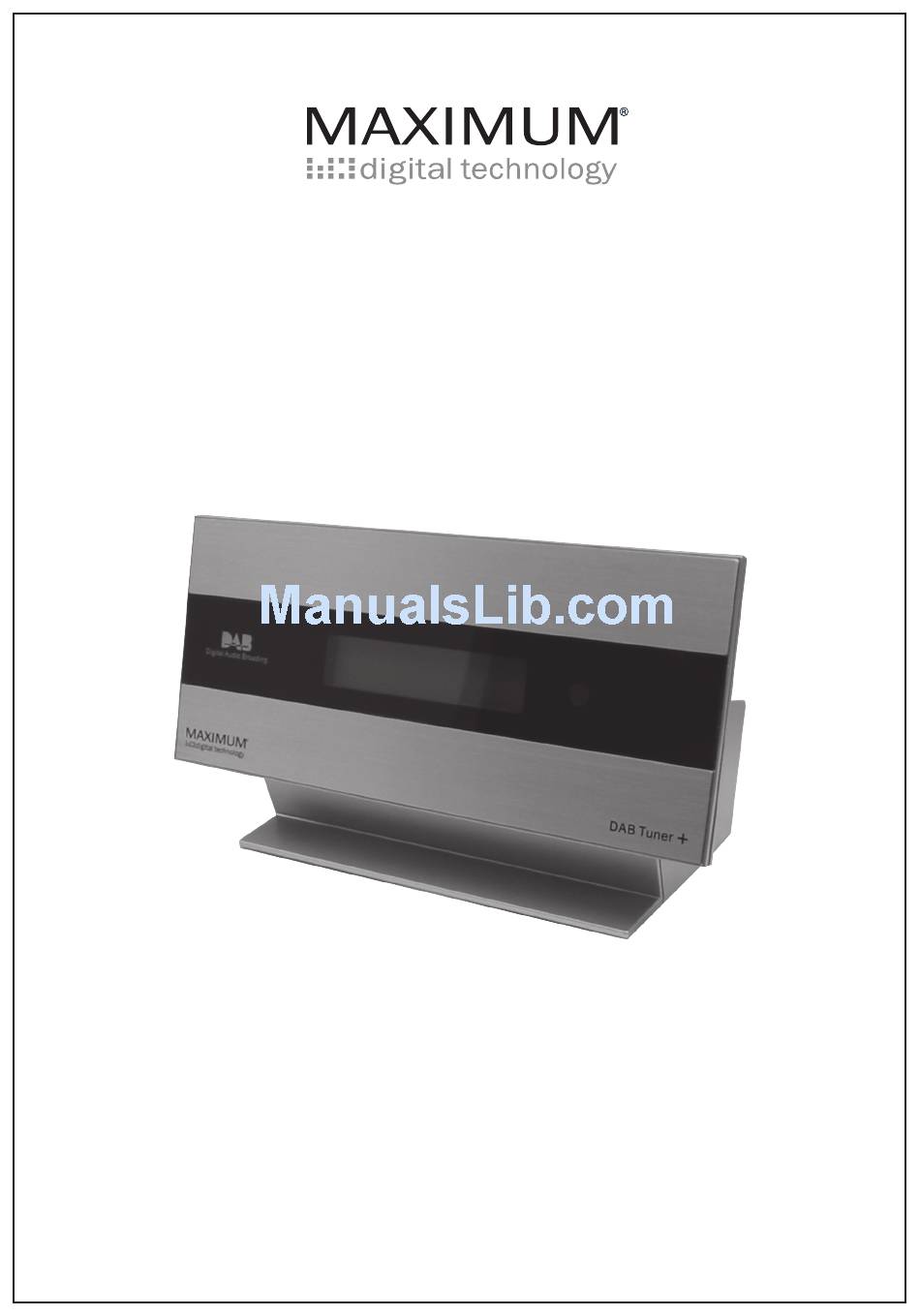

- Page 1 DAB Tuner + User Guide...
-
Page 2: Safety Information
Safety Information Please read all this safety information before use: Safety Considerations • Position the cables so that they cannot be walked on or pinched by items placed on or against them. • Do not use the unit in humid or damp conditions. •... -
Page 3: Table Of Contents
Contents Safety Information Location of Controls Getting Started Mains adapter Batteries Audio cable Switch on When you first switch on No stations available Tuning in The tune and scan buttons Tuning to a preset station Assigning a station to a preset button Changing the Station Information Display Scrolling information supplied by the radio station (DLS) Program type... -
Page 4: Location Of Controls
Location of Controls screen antenna input audio output external power connectors connector ON / OFF button TUNING VOLUME buttons buttons SELECT button DISPLAY button SCAN button (see (see page 7) page 6) PRESET buttons (see page 6) INFO MUTE button button (see (press to turn the sound... -
Page 5: Getting Started
Getting Started Mains adaptor Your Matsui DAB Radio is powered by a mains adaptor (use only the power adaptor supplied). Plug the mains adaptor into the mains supply. The LCD screen will show ‘Clock not set’, until you switch the radio on using the remote control and tune to a DAB radio station. -
Page 6: Tuning In
Tuning in The tune and scan buttons TUNE... To see what stations are in the station list, press buttons to scroll up or down the list. TUNE+ TUNE– The station names will appear one at a time on the bottom line of the display. -
Page 7: Changing The Station Information Display
Changing the Station Information Display The second line of text can display any one of these seven items of information: Scrolling information supplied by the radio station (DLS) • Program type • Ensemble name • Time & date • Channel & frequency •... -
Page 8: Using The Info Menus
Using the Info Menus The Info menus allow you to: • sort the stations in the station list • manually tune the radio • adjust the dynamic range control setting (DRC) • set the clock and the alarm • check which version of software is being used in your radio To display the first of the Info menus, press the button. -
Page 9: Manual Tune
Station order (continued) • Favourite stations Your ten most listened-to stations will be moved to the top of the station list. Next time you use the menu, you will see an additional item: • Favourites ( ) to presets Your favourite stations will be allocated to the preset buttons, overwriting any you have set previously. -
Page 10: Clock And Alarm Settings
Clock and alarm settings Use the buttons, as described at the top of page 8, to choose INFO, TUNE SELECT the Clock and alarm menu. Press the buttons to see the different TUNE+ TUNE– clock and alarm settings. When you see the setting you want to view or adjust, press the button. -
Page 11: Set Alarm On/Off
Set alarm on/off From the Clock and alarm menu, choose Set alarm on/off. Press the buttons to see the four alarms. TUNE+ TUNE– When you see the alarm you want to turn on or off, press the button. SELECT Autoset clock From the Clock and alarm menu, choose Autoset clock. -
Page 12: Specifications
Maximum DAB Tuner + Specifications Audio output connector: Line output level Frequency band: Band-III VHF Quick Scan: 11B 18.640MHz to 1D 9.07MHz Full Scan: 5A 174.90MHz to 1F 9.00MHz Power supply: 6V 500mA Accesssories: 1 x Mains adaptor 1 x RC101 remote control (takes x AAA batteries) Because we continually strive to improve our products, we may change specifications and designs without prior notice.
