Vanguard Sailboats
300 Highpoint Avenue
Portsmouth, RI 02871
For the dealer
nearest you call
800.966. SAIL
Advertisement
Related Manuals for Vanguard ZUMA
Summary of Contents for Vanguard ZUMA

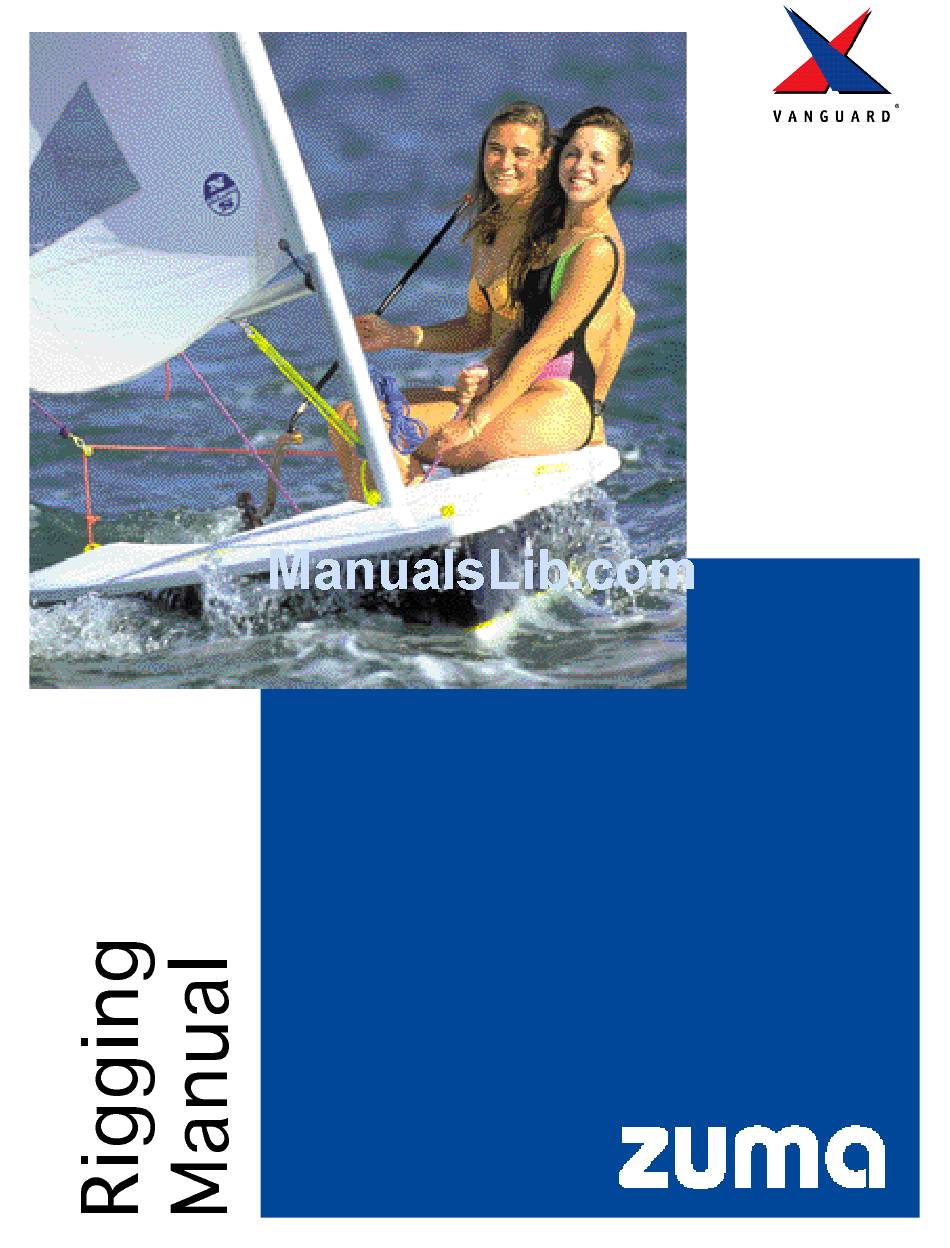

- Page 1 Vanguard Sailboats 300 Highpoint Avenue Portsmouth, RI 02871 For the dealer nearest you call 800.966. SAIL...
- Page 2 4. Block package which includes: Mainsheet block Double traveler block Vang block with vcleat Small vang block with becket Shackle To rig your Zuma the first time, you will need the following: Knife White electrical tape 2 adjustable wrenches and/or pliers...
- Page 3 The vang system consists of two blocks and a line. The block with a shackle attaches to the eyestrap on the underside of the boom. The block with a v groove cleat and shackle attaches to the eye- strap on the mast. Lay out the block w/ shackle to the right of the block with vcleat, leaving about two feet between the two.
- Page 4 Insert the collared end of the mast top section into the bottom section until the collar is tight against the aluminum. Make sure the mast step hole and mast butt are perfectly clean; any sand, dirt etc. in the mast step will grind into the gelcoat and eventual- ly damage the boat.
- Page 5 Tie a figure eight knot in one end of the cunningham and thread the other end forward through the clam cleat and fairlead just aft FOR YOUR OWN SAFETY, MAKE SURE of the mast. Thread the end up through the grommet in the sail YOU ARE WEARING APPROPRIATE and secure it to the gooseneck.
-
Page 6: Parts View
Boom Vang Tiller Extension Tiller Block w/ shackle Block w/ vcleat Bow eye Cunningham fairlead Cunningham clam cleat Compass Deckplate Storage bag Daggerboard retainer Mainsheet block Eyestrap Hiking strap Grabrail Traveler padeye w w w . t e a m v a n g u a r d . c o m...
