Summary of Contents for General Air Products L20033

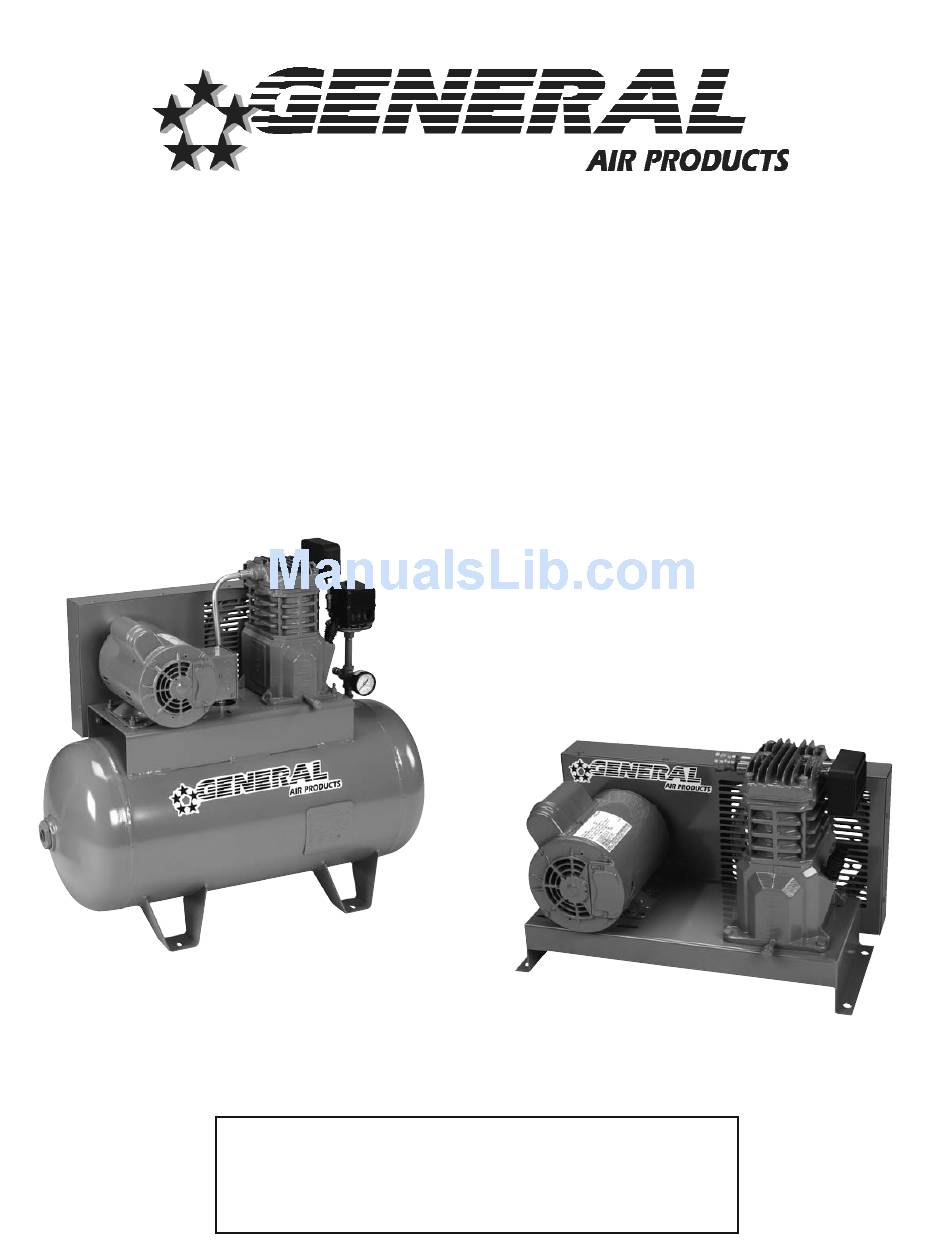

- Page 1 L & LT Series Base and Tank Mounted Lubricated Compressors Installation, Operation and Maintenance Manual 1-800-345-8207 Call or visit our web site for our complete product listing www.GeneralAirProducts.com version 1.1 01-2011...
-
Page 2: Table Of Contents
Table of Contents Section 1 - Safety & Warnings 1.1 Safety Guidelines 1.2 General Safety Information 1.3 Safety Notes Section 2 - Receiving Section 3 - Installation Location Section 4 - Mounting Section 5 - Lubrication Section 6 - Piping 6.1 - Piping Instructions 6.2 - L Series Base Mounted Lubricated Compressor Installation Drawing 6.3 - LT Series Tank Mounted Lubricated Compressor Installation Drawing... -
Page 3: Section 1 - Safety & Warnings
Section 1 - Safety & Warnings 1.1 Safety Guidelines This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols. Danger indicates an imminently hazardous situation which, if not avoided, WILL DANGER result in death or serious injury. -
Page 4: Section 2 - Receiving
Section 2 - Receiving Your compressor is inspected at the factory and packaged to protect against shipping damage. When the compressor is unpacked, inspect for damage or missing parts. All claims should be settled directly with the freight company. WARNING - Do not operate this compressor if damaged during shipment, handling or use. -
Page 5: Section 6 - Piping
6.1.2 - On Base Mounted Units (L Series): If an AMD-2 (General Air Products model air maintenance device) is used to operate the compressor motor, allow sufficient distance between the compressor and AMD-2 to ensure that the maximum temperature at the AMD-2 is 200 F or less. -
Page 6: L Series Base Mounted Lubricated Compressor Installation Drawing
Section 6 - Piping 6.2 L Series Base Mounted Lubricated Compressor Installation Drawing 1-800-345-8207... -
Page 7: Lt Series Tank Mounted Lubricated Compressor Installation Drawing
Section 6 - Piping 6.3 LT Series Tank Mounted Lubricated Compressor Installation Drawing 1-800-345-8207... - Page 8 The standard pressure switch is factory set at 30 psig cut in and 40 psig cut out. Higher settings may require a larger motor on the compressor. Consult General Air Products by calling 800-345-8207 before adjusting the pressure switch. 1-800-345-8207...
-
Page 9: Lubricated Compressor Single & 3 Phase Wiring Drawing (Iec Version
Section 7 - Wiring 7.2 Lubricated Compressor Single & 3 Phase Wiring Drawing (IEC Version) 1-800-345-8207... -
Page 10: Lubricated Compressor Single & 3 Phase Wiring Drawing (Nema Version
Section 7 - Wiring 7.3 Lubricated Compressor Single & 3 Phase Wiring Drawing (NEMA Version) 1-800-345-8207... - Page 11 Section 8 - Maintenance Instructions Disconnect, tag and lock out power source then release all pressure from the system WARNING before attempting to install, service, relocate or perform any service. The following instructions are based on normal operation. If the compressor is in an excessively dusty area, increase frequency of maintenance checks.
- Page 12 Purchaser, to establish a claim under this warranty. for certain purposes, which may vary from those in neighboring areas. While General Air Products, Inc. attempts to assure that its Replacement parts provided under the terms of the warranty are products comply with such codes, it cannot guarantee compliance,...
