Summary of Contents for Wincor Nixdorf Smart Card Reader
-

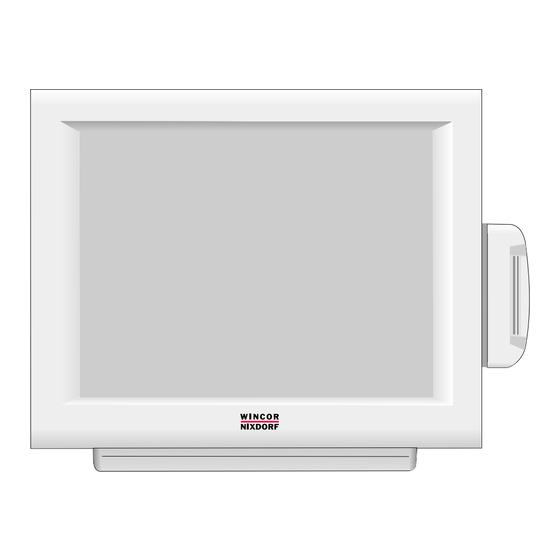

Page 1: Smart Card Reader
Smart Card Reader für/ for BA7X Chipkartenleser/ Smart Card Reader Benutzerhandbuch/ User Guide... - Page 2 Information, wenn Sie uns kontruktive Hinweise geben wollen: Dafür bedanken wir uns im voraus. Mit freundlichen Grüßen Wincor Nixdorf GmbH & Co. KG Dokumentation RD PD1 Wernerwerkdamm 16 Gebäude 36 D-13629 Berlin Fax: +49 30 386 43065 Bestellnummer dieser Druckschrift/Order No.:...
- Page 3 Smart Card Reader for BA7x User Guide Edition October 2000...
- Page 4 MS-DOS™, Windows 95™, Windows 98™, Windows NT™ and Windows CE™ are registered trademarks of the Microsoft Corporation BEETLE™ is a registered trademark of Wincor Nixdorf GmbH & Co. KG Copyright© Wincor Nixdorf GmbH & Co. KG, 2000 The reproduction, transmission or use of this document or its contents is not permitted without express authority.
-
Page 5: Table Of Contents
Before switching on the System ..............4 Unpacking and checking the System.............4 The Smart Card ..............5 Communication ..................5 Contact Assignment ..................5 Smart Card Reader (SCR Module)........7 General......................7 How to Operate ...................7 Cleaning Instructions ...................8 Pollution by foreign bodies ................8 Right justified Installation at a BA7x .......11... -
Page 7: Manufacturer´s Certification
FCC-CLASS A DECLARATION Manufacturer´s Certification The device complies with the requirements of the EEC directive 89/336/EEC with regard to ‘Electromagnetic compatibilily". Therefore, you will find the CE mark on the device under the cable cover or packaging. The device is intended only for operation with for this purpose by Wincor Nixdorf approved flat screens. -
Page 8: Warranty
Inadequate location or surroundings will not be covered by the warranty. Important notes The smart card reader conforms to the current safety standards for data processing equipment. If this device is taken from a cold environment into the operating room, moisture condensation may form. -
Page 9: Recycling The Scr Module
Recycling Center, which is certified pursuant to ISO 9001. So do not simply throw your smart card reader on the scrap heap when it has served its time, but take advantage of the environmentally smart,... -
Page 10: Before Switching On The System
If damage has occurred during shipping or if the package contents do not match the delivery note, promptly inform your Wincor Nixdorf sales outlet. Transport the device only in its original packaging (to protect it against... -
Page 11: The Smart Card
COMMUNICATION The Smart Card Smart cards are chip cards in size of credit cards with a microprocessor and a programmable data storage. These data can be read by a chip card reader except for the personal key. Using these cards ensures the highest level of data security. - Page 12 CONTACT ASSIGNMENT The micro controller is reset via the reset line. The reset RST takes place during the operation (warm reset) or during the power-on procedure (cold reset). The clock CLK is created from the outside during the clock supply. According to ISO 7816-3 the ground GND must be created before supply voltage.
-
Page 13: Smart Card Reader (Scr Module)
BEETLE system is made via a powered COM interface (COM2-4). How to Operate Run the smart card through the slot of the smart card reader from front to back. Make sure that the chip shows to the left. When using smart cards, the following should be observed: smart cards should never be allowed to come into contact with liquids. -
Page 14: Cleaning Instructions
Pollution by foreign bodies Should foreign bodies, e.g. coins, find their way into the smart card reader remove them as described below. The order for the left-hand side installed smart card reader corresponds to the following description. - Page 15 POLLUTION BY FOREIGN BODIES Put a small screwdriver into the slot marked by the arrow. Remove the cover from the rest of the smart card reader. Remove the foreign body from the device . Do not touch the electronic board and the contacts! First hook the cover in the front ...
- Page 16 POLLUTION BY FOREIGN BODIES Connect the connector to the socket. Now shift the cable cover to the back until you hear a click. Make sure that the cable is not get caught.
-
Page 17: Right Justified Installation At A Ba7X
Remove the cover of the smart card reader from the rest of the device. The smart card reader of a right justified installation has a notch for the data cable at this side . ... - Page 18 RIGHT JUSTIFIED INSTALLATION AT A BA7X Then place the SCR with the openings (see arrows) on the screws. Tighten the screws with a Phillipshead. Connect the connector to the socket. Tighten the screws and put the cable according to ...
- Page 19 RIGHT JUSTIFIED INSTALLATION AT A BA7X Now shift the cable cover to the back until you hear a click. Make sure that the cable is not get caught.
-
Page 20: Left Justified Installation At A Ba7X
Remove the cover of the smart card reader from the rest of the device. The smart card reader of a left justified installation has a notch for the data cable at this side . - Page 21 LEFT JUSTIFIED INSTALLATION AT A BA7X Then place the SCR with the openings (see arrows) on the screws. Tighten the screws with a Phillipshead. Connect the connector to the socket. Tighten the screws and put the cable according to the figure ‚.
- Page 22 LEFT JUSTIFIED INSTALLATION AT A BA7X Now shift the cable cover to the back until you hear a click. Make sure that the cable is not get caught.
- Page 23 Herausgegeben von/Published by Wincor Nixdorf GmbH & Co. KG D-33094 Paderborn, D-13629 Berlin Bestellnummer /Order No.: 01750033635A Printed in Germany...
